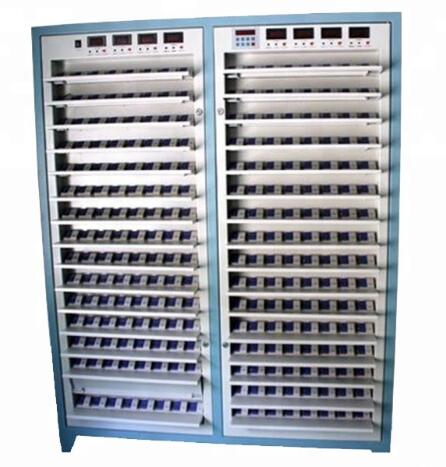

Battery Formation and Grading Machine for Pouch Cell Charge and Discharge

Battery Formation and Grading Machine for Pouch Cell Charge and Discharge

  • Model: AOT-BT0503-512-P
  • Origin: China
  • Applicaton: Battery Cell Charge and Discharge
  • Channel Number: 512
  • Product description: 512 Channel Pouch Battery Formation Charge and Discharge Tester Machine
  • INQUIRY

Main Parts

Cabinet, Clamp, Auto A/D Constant Current Source, Circuit Alarm, Operation Panel, etc

Main Function

1. Special making for lithium battery.

2. Can be working separately, timing separately.

3. Auto A/D Current (Set the current, time, steps by keyboard.)

4. 16 serials tandem type constant current sources, each source can load 32pcs of batteries.

5. Constant current sources are separate, no influence on each other.

6. Power Fail Safeguard, can continuously work when the power gets well.

7. Special clamp for 18650.

8. Works are: constant current charging, constant current, constant voltage charging, constant exile electric, shelving, and circulation; The charging and discharging control A persistence electric current charging termination voltage, constant exile termination voltage, constant current, constant voltage charge value constant voltage and constant current charge - Delta V end value, the constant current charging current value, constant current, constant voltage charging current value, exile constant electric current value, constant current, constant voltage charge Termination of current value, work in various ways to terminate values;

Main Technical Data

Model

Battery Formation Charge and Discharge Machine for Pouch Cell

AOT-BT0503-512-P

Size(L*W*H)

1500×500×1900

Voltage

AC 220V/110V (three-phase four-wire)

Max. Power(W)

7000

Channels

512

Clamp Type

Springs clamp

Clamp Height(mm)

10-95,stepless adjustment

Clamp Spacing(mm)

35

Voltage Measuring Range (mV)

DC 100 ~ 4500

Voltage Precision

±0.1%FS±0.1%RD

Voltage Revolution(mV)

1mV

Constant Voltage Range(mV)

DC 2000 ~ 4500

Min Discharge Voltage(mV)

2000

Current Range(mA)

DC 5 ~ 3000

Current Precision

±0.1%FS±0.1%RD

Current Revolution(mA)

1

Time Arrange(min/step)

999

Time Measuring Error

±0.1%

Working Environment

Temperature:0~40℃,RH≤85%
