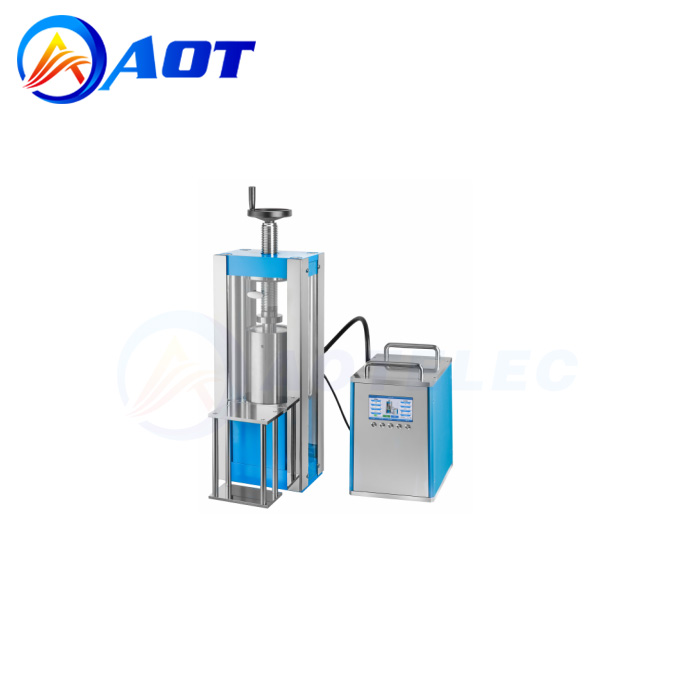

Lithium Battery Automatic Isostatic Press Machine

Product Name: Automatic Isostatic Press Machine
AOT-PP-20200
Brand Name. AOT
Product Orgin:China
Product description: The PP Series isostatic press applies 20-200T force with 300MPa omnidirectional compression, optimizing lithium electrode adhesion and cycle life. Featuring 7" touchscreen controls and auto pressure c
INQUIRY

1. Product Description

The lithium battery isostatic press machine is specifically designed for lithium battery production. Utilizing the isostatic pressing principle, it ensures uniform pressure application on the battery cell in all directions, resulting in a compact internal structure and enhanced adhesion between electrodes and active materials. This machine effectively improves the compaction density of battery cells, optimizes battery performance, reduces internal resistance, and increases battery capacity and cycle life. It is a critical equipment in lithium battery manufacturing.

2. Product Features

① Durable solid aluminum alloy handwheel;
② Ergonomically designed lever for effortless operation;
③ Chrome-plated hydraulic cylinder with superior sealing and extended service life;
④ Intelligent control panel for easy parameter setup and multi-stage programmable settings;
⑤ Real-time display of sample pressure and parameters for precise monitoring;
⑥ Metal buttons with silver-plated contacts, ensuring >100,000 cycles of reliable operation.

Model Range: PP-20J ~ PP-200J

Model	PP-40J	PP-100J	0-20T	0-60T
Display Accuracy	0.1T	0.1T	Φ110mm (diameter)	Φ150mm (diameter)
Pressurization Mode	Multi-stage programmed pressurization with real-time graphical display	Multi-stage programmed pressurization with real-time graphical display	Auto-conversion based on sample geometry	Auto-conversion based on sample geometry
Display Screen	7-inch Touchscreen	7-inch Touchscreen	300MPa	300MPa
Isostatic Chamber (M×N)	Φ40×150mm	Φ60×150mm	50mm (T)	50mm (T)
Safety Protection	Upper plate swing-arm structure for easy operation	Steel plate + acrylic glass door	240×390×560mm	300×500×680mm
Power Supply	500W (220V/110V customizable)	1500W (220V/110V customizable)	135kg	240kg

Model	PP-200J	0-150T
Display Accuracy	0.1T	Multi-stage programmed pressurization with real-time graphical display
Pressure Conversion	Auto-conversion based on sample geometry	7-inch Touchscreen
Safety Protection	Steel plate + acrylic glass door	300MPa
Isostatic Chamber (M×N)	Φ90×150mm	Steel plate + acrylic glass door
Dimensions (L×W×H)	1000×550×1250mm	500W (220V/110V customizable)
Weight	820kg

Company Profile

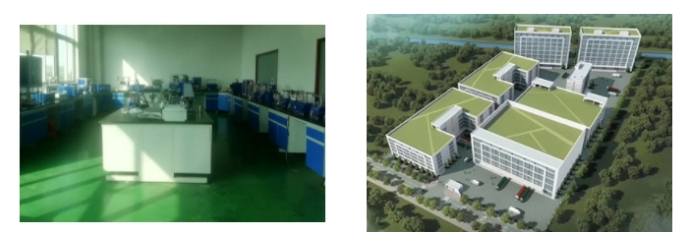

Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
