Aluminum Laminated Film Forming Machine with Automatic Depth Adjustment

Product Name:Aluminum Laminated Film Forming Machine
Voltage:AC 110V / AC 220V, 50/60 Hz
Power:1000W
Origin:China
Product description: AOT-MSK-120SV is a Aluminum Laminated Films pouch case forming machine with Automatic Depth Adjustment. used for making pouch cell in battery research .
INQUIRY

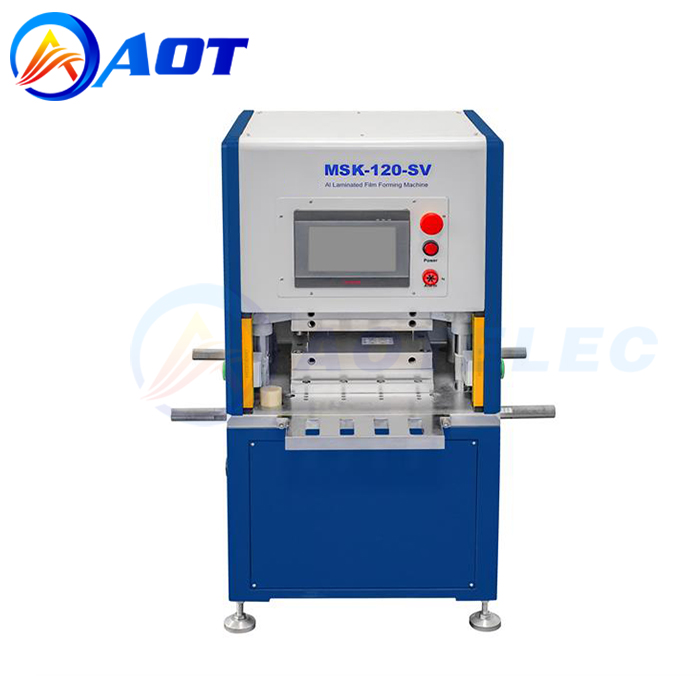

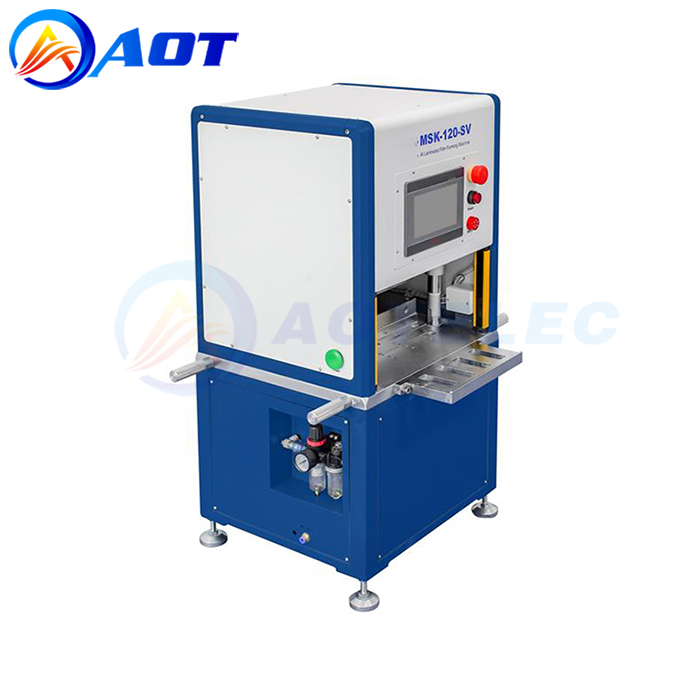

AOT-MSK-120SV is a Aluminum Laminated Films pouch case forming machine with Automatic Depth Adjustment. used for making pouch cell in battery research .

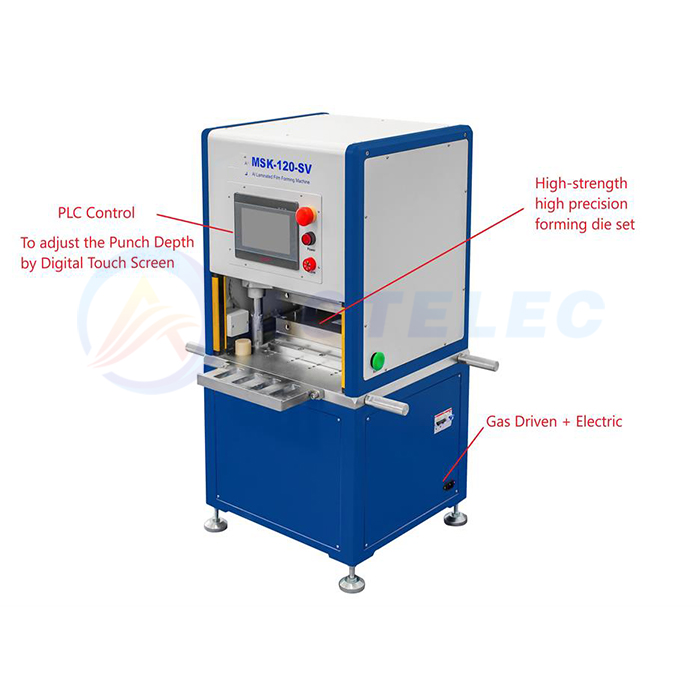

Feature:
1. Gas drive + electric
2. The forming depth, punching pressure and speed of the soft pack battery can be adjusted
3. The molding time can be counted
4 PLC control

Specification：

Product name	Aluminum laminated film forming machine
Voltage	AC 110V / AC 220V, 50/60 Hz
Power	Max 1000 W
Standard Die Size	62mm (L) x 45mm (W) Recommended pouch cell case size: 200 mm (L) x 120 mm (W), one aluminum laminated case after forming could be folded
Customized Die Size	One aluminum laminated case after forming could be folded, the maximum dimension: 70 mm (L) x 100 mm (W) with an airbag One formed aluminum laminated case + one flat aluminum laminated case With the airbag, the maximum dimension: 140 mm (L) x 100 mm (W) Without the airbag, the maximum dimension: 140 mm (L) x 120 mm (W)
Air Pressure	0.5 - 0.8 MPa Air or inert gas
Al Laminated Film thickness	0.10 mm - 0.20 mm acceptable
Max. Cup Depth	Maximum 8.0 mm,Precision: ± 0.05 mm
Max. Punching Pressure	1000KG

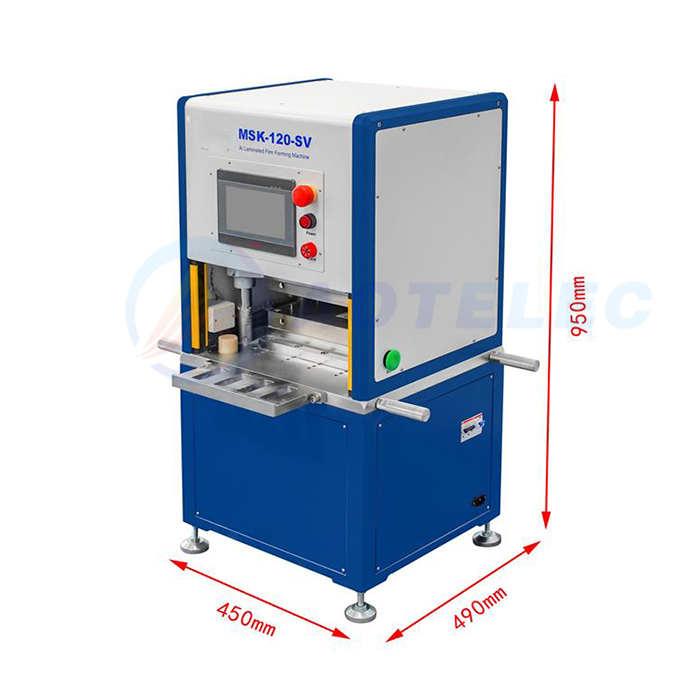

Product Size	L490 mm x W450 mm x H950 mm
Weight	150KG
