8 Channel Split Coin Cell Testing Kit for Battery Materials Analyzing

Model: AOT-EQ-HSC-8
Channel: 8
Electrode Diameter: 20mm
Origin: China
Product description: With this 8 split testing kit, coin cells can be assembled independently with varying battery materials and tested parallelly by a multi-channel battery analyzer for comparison and time saving
INQUIRY

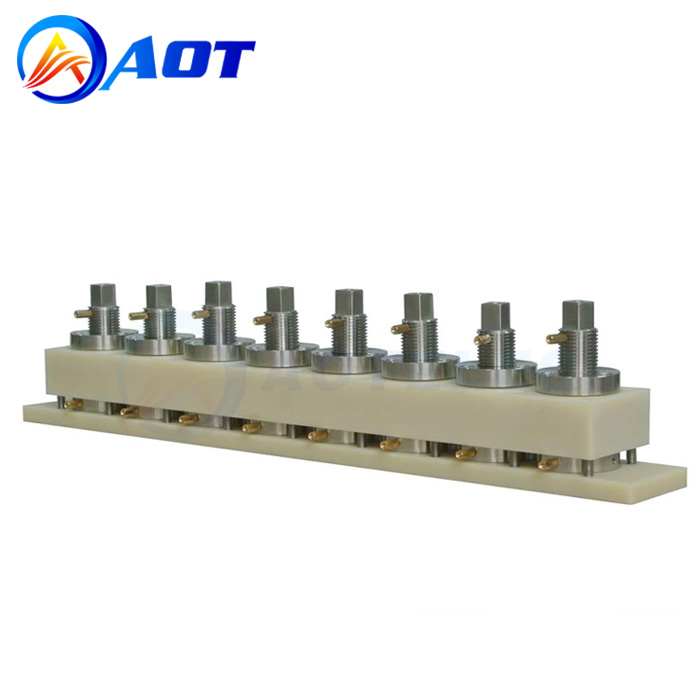

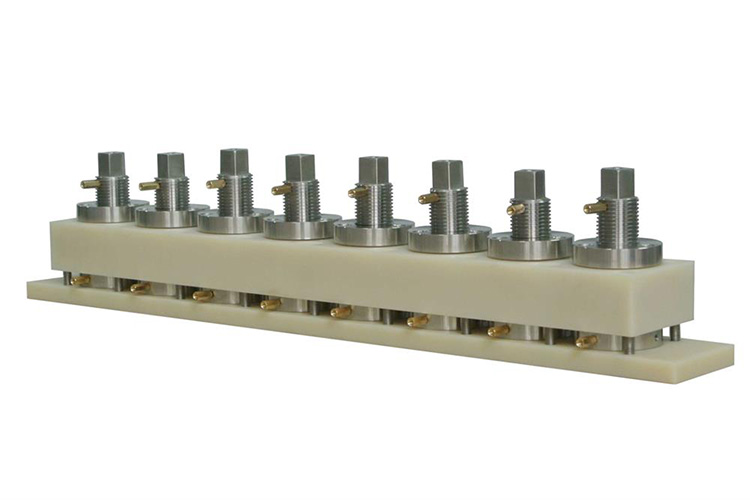

8 Channel Split Coin Cell Kit for High-Throughput Testing of battery materials

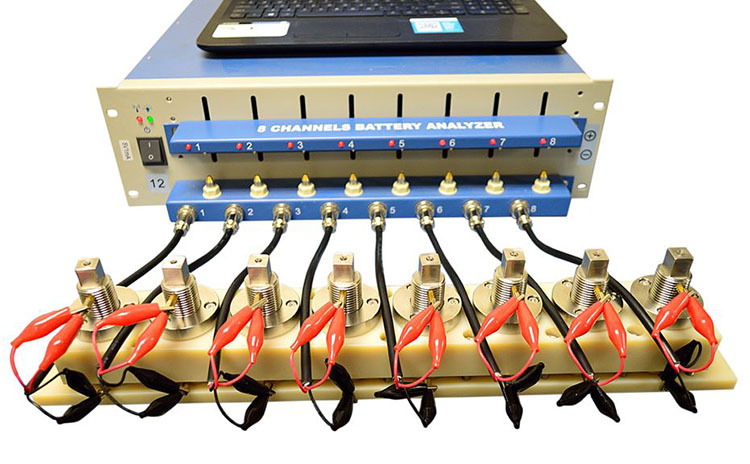

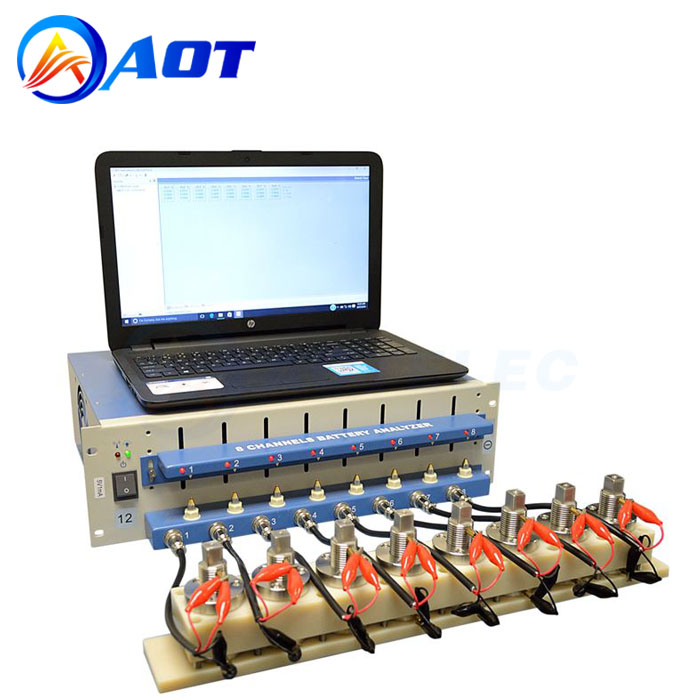

The 8 channel split coin cell kit is designed for high-throughput R&D battery materials testing and screening. With this testing kit, 8 split coin cells can be assembled independently with varying battery materials and tested parallelly by a multi-channel battery analyzer for comparison and time saving. This split coin cell kit can be easily tightened or de-assembled by a wrench. No coin cell Crimper is needed, saving user's time and cost.

SPECIFICATIONS

Model	EQ-HSC-8 Coin Cell Split Testing Kit
Structure & Features	1. 8 separated split coin cells can be assembled independently and tested parallelly for high-throughput R&D battery material testing and screening 2. Work greatly with a multi-channel battery analyzer for battery material comparison and time-saving 3. Stainless steel bottom contact plate and top plunger ensure good electrical conductivity 4. PTFE made sealing gaskets and Nylon body for good resistance to electrolyte corrosion 5. The air-tight design ensures zero electrolyte leakage

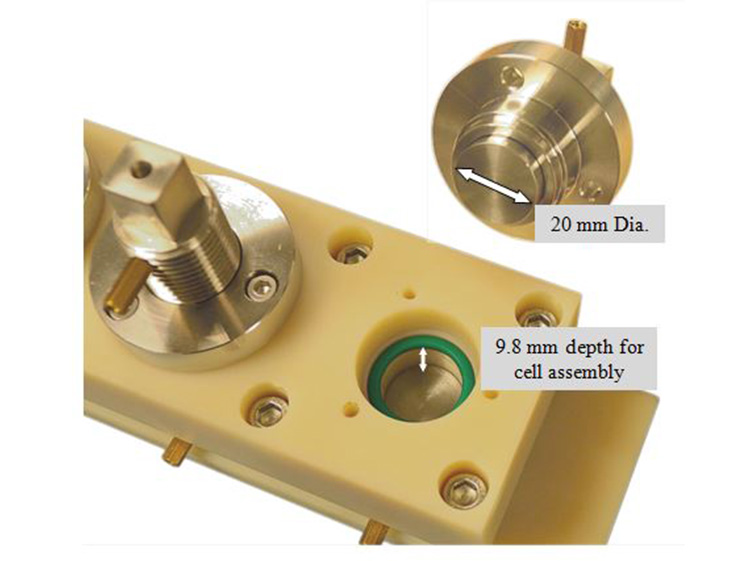

Electrode Diameter	Standard 20 mm ID (5, 10, 12, and 15 mm ID versions are available upon request)
Working Temperature	Max. 100ºC
Note	The separator films, electrodes, electrolyte and etc. are NOT included
