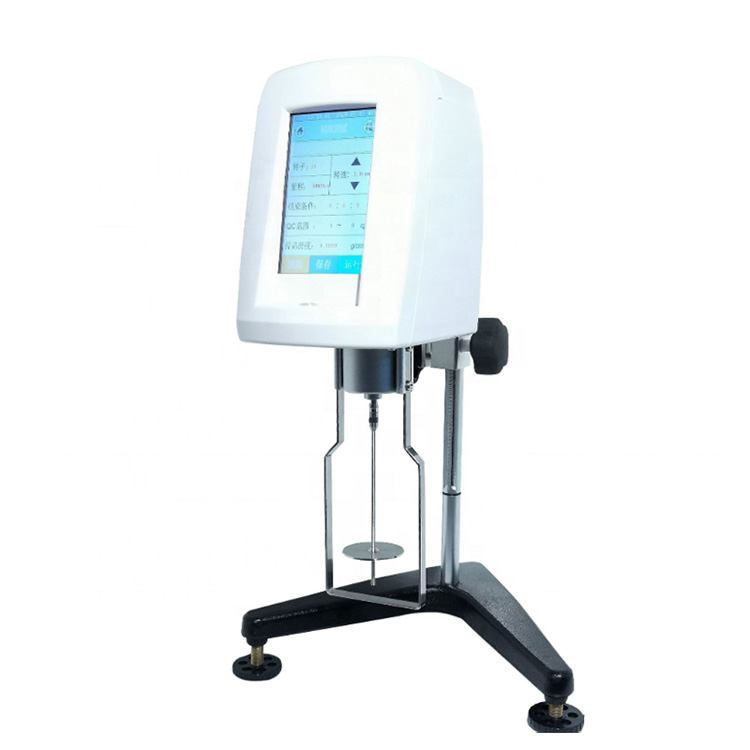

High Performance Viscosity Meter RVDV-1T Touch Screen Rotary Viscometer

Model: AOT-RVDV-1T
Range: 100–13,000,000 mPa.S
Origin: China
Warranty: 1 Year
Product description: This viscometer has testing range of 100-13,000,000 cp, it is suitable for large viscosity measuring, such as cerame industry.
INQUIRY

RVDV-1T Factory Price High Quality Touch Screen Rotary Viscometer

Perfect integration of touch-screen technology, fast, accurate, easy to measure viscosity. Stepless debugging, can measure super high viscosity of the sample. 5-inch color touch screen can be comprehensive, visual display of a variety of parameters and working conditions. It has many advantages, such as many measuring parameters, rich display content, convenient operation, intuitive reading, high measuring precision, stable rotational speed, strong anti-interference performance, showing the curve of shear rate and viscosity, and so on.

Main features:

1 adopt ARM technology, built-in Linux system. The operation interface is simple and clear, through the creation of test program and data analysis, the viscosity test is carried out quickly and conveniently.

2. the viscosity test value is accurate : each measuring range is automatically calibrated by a computer , the precision is high , and the error is small ;

3. display is rich: in addition to viscosity (dynamic viscosity and kinematic viscosity), there are also temperature, shear rate, shear stress, measurement value as a percentage of the full range value (graphic display, range overflow alarm, automatic scanning, Maximum measurement range, date, time and so on under current rotor speed combination. Show kinematic viscosity when density is known.

4. complete functions: timing measurement, self-built 30 groups of test programs, access to 30 groups of measurement data, real-time display of viscosity curves, printing data and curves;

5. front level: level adjustment is intuitionistic and convenient;

6. stepless speed regulation:

RV1T series: 0.3-100 rpm, a total of 998 rotational speeds

RV2T series: 0.1-200rpm, 2000 revolutions

7. showing the curve of shear rate versus viscosity : the range of shear rate can be set , and displayed on the computer in real time ;Curve of time - to - viscosity can also be displayed

8. optional Pt100 temperature probe: wide temperature range, ranging from -20 ℃ to 300 ℃, and measuring precision 0.1 ℃;

9. Optional accessories rich: R1 rotor, temperature sensor, viscometer special thermostat bath, thermostat cup, printer, standard viscosity sample (standard silicone oil), etc.;

The measurable range is very large, ranging from 100 to 320 million MPA.

Widely used in paint, paint, cosmetics, ink, pulp, food, oil, starch, solvent adhesive, latex, biochemical products and other high viscosity industries.

Detailed technical parameters:

model	RVDV-1T	HADV-1T	HBDV-1T
Control / display mode	5-inch color touch screen
speed(r/min)	0.3–100 infinitely variable speed , a total of 998 speed options
Measuring range mPa.s	100-13 million	200-26 million	800-104 million
	(Measure viscosity below the lower limit, need to choose R1 rotor)

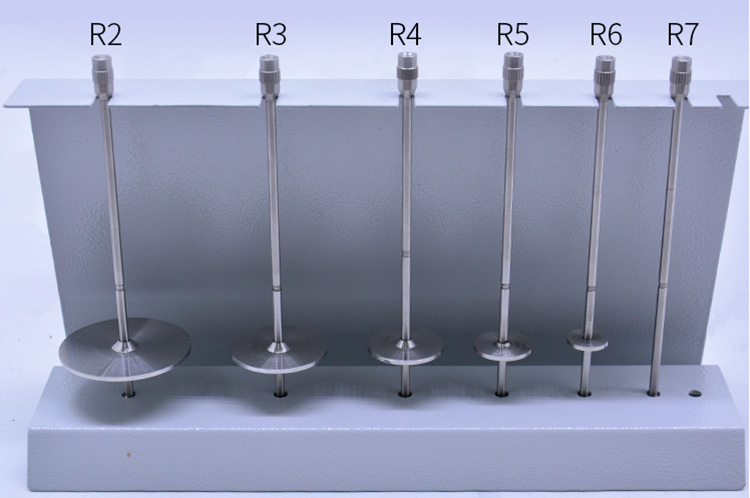

Rotor	R2 – R7(6, marking) R1(Optional)
Sample dosage	500ml
measurement error(Newtonian liquid)	±1%
Repetition error (Newtonian liquid)	±0.5%
Display shear response / shear rate	standard configuration
Timing function	standard configuration
Display viscosity curve	shear rate - viscosity Temperature-viscosity Time-viscosity
kinematic viscosity	Density of sample to be input
Temperature measurement	Standard temperature probe interface (need to select temperature probe)
Autoscan	Automatically scan and recommend the best combination of rotor and speed
Maximum measurement range	Automatic display of the selected combination of rotors and rotational speeds in a measurable range of viscosity
Self-built measurement program	Save up to 30 groups (including rotor, speed, temperature, time, etc.)
Preservation of measurement results	Up to 30 sets of data can be stored (including viscosity, temperature, rotor speed, shear rate, shear stress, time, density, kinematic viscosity, etc.)
Print	Data, curves (marked with print interface, printer to be purchased)
Data output interface	RS232
Constant temperature component	Selection (all kinds of viscometer special constant temperature slot, constant temperature cup)
Source	Wide voltage work (110V / 60Hz or 220V / 50Hz)
Outline dimension	300 × 300 × 450 mm
