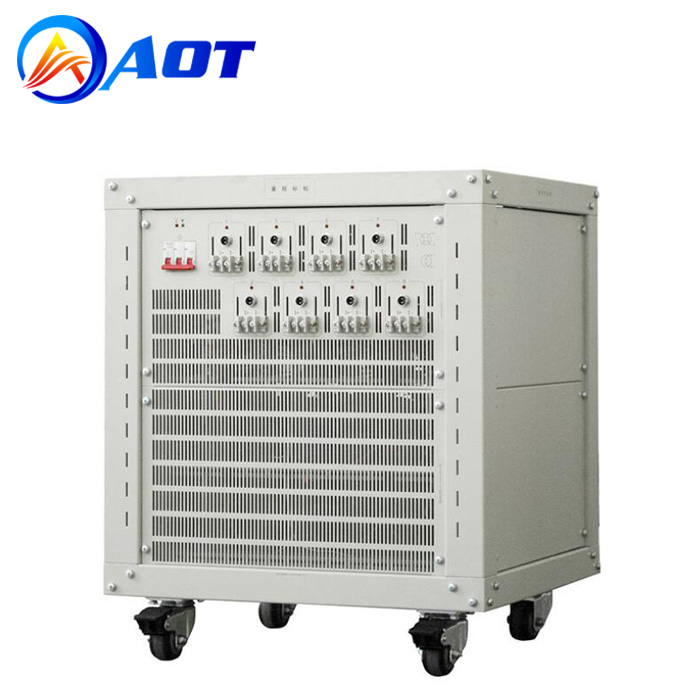

30V10A Lithium Battery Testing System for Big Battery and Battery Pack Analyzing

Model: AOT-BTS-30V10A
Origin: China
Voltage range: 0.15-30V
Current range:0.03-10A
Product description: This battery test system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery
INQUIRY

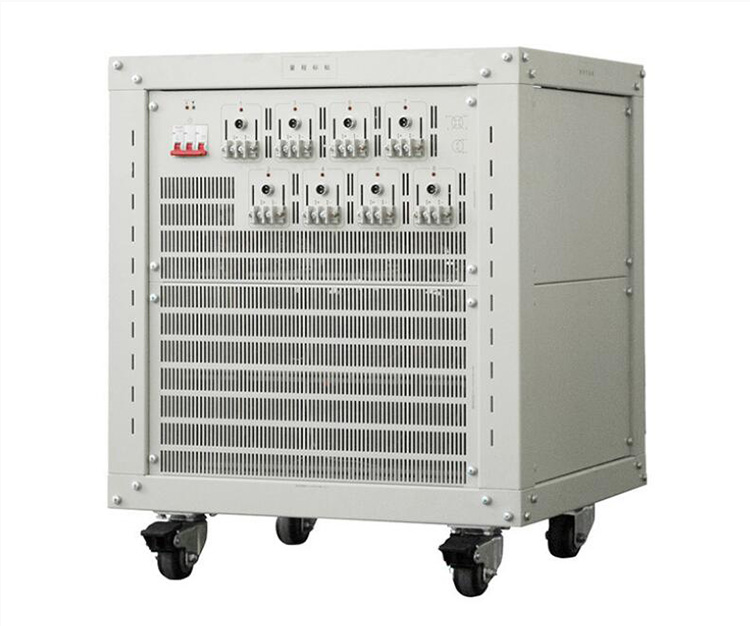

30V10A Lithium Battery Testing System for Big Battery and Pack

Description:

This battery test system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.

If you use this tester to test Super capacitor, please choose the model with the min discharge voltage up to 0 V, Suitable for super capacitor, NI-MH battery, Nickel-chromium battery and all kind of rechargeable battery testing.

Specifications:

Electricity Requirement	208~240VAC 50/60Hz
Power Consumption	2.4KW
Current	Range: 0.03A – 10A programmable Accuracy: ±(0.05% RD + 0.1% FS)
Customizable current range	0-1 mA, 0-10 mA, 0-300 mA, 0-2 A, 0-3 A, 0-5 A, 0-20 A, 0-30 A, etc.
Voltage	Range: 0.15V - 30V programmable Accuracy: ±(0.05% RD + 0.1% FS)
Customizable voltage range	0-5 V, 0-10 V, 0-20 V, 0-30 V, 0-50 V, 0-60 V, 0-150 V, 0-300 V, 0-500 V, etc.
Time Range	0 - 999 seconds
Cycle Measurement Range	1 - 9999 times
Input Impedance	≥ 10 m-ohm
Port	Network
Software	Windows-based software interfaces for easy operation Uses standard SQL database management Real-time monitoring windows and integrated graph/data windows can set various working modes for measuring capacity and cycle life of all types of rechargeable batteries, such as: constant current discharge, constant current charge, constant voltage charge, rest, as well as voltage, current, time, capability, negative voltage slope, and other limit conditions The user can define the curve by different types such as voltage-time curve, current-time curve, capacity-voltage curve, loop times charge/discharge capacity curve, loop times charge/ discharge efficiency curve, etc. to make curves be compared both by visually and statistically Provide timely instructions, warnings, and intelligent support
Record	Complete test process record (log function) Intelligent power failure protection:
Compliance	CE Certified
Warranty	Two years limited warranty with lifetime support for the battery analyzer.
Product Dimensions	26"(L) x 20"(W) x 20"(H)
Net Weight	90kg
