Split Test Cell Testing Machine For Lithium Air Battery Research

Product Name:Split Test Cell Testing Machine
Max. Working Temperature:250°C
Warranty:1year
Origin: China
Product description: The EQ-STC-LI-AIR is Split Test Cell for Lithium Air Battery Research. You can control air flow pressure and test various anode and cathode material at easy.
INQUIRY

The EQ-STC-LI-AIR is Split Test Cell for Lithium Air Battery Research. You can control air flow pressure and test various anode and cathode material at easy。

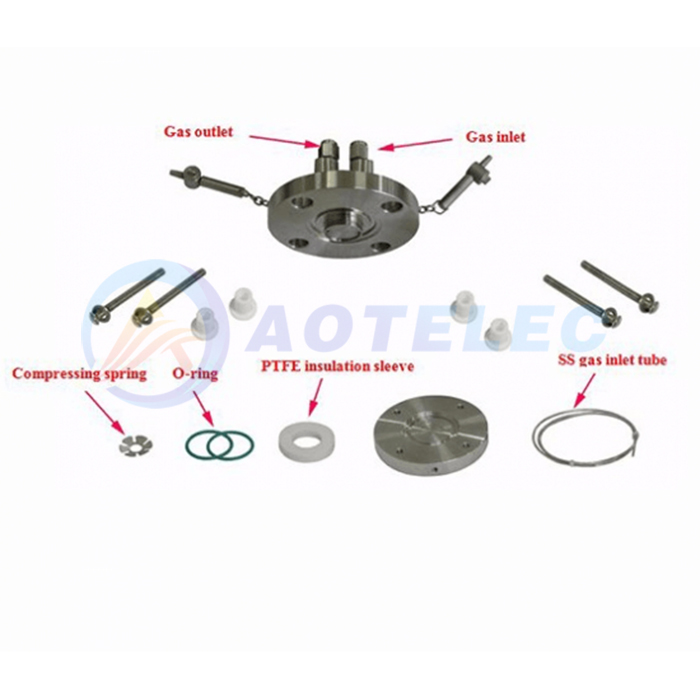

Structure	1 Stainless Steel Structure with internal Silver- Clad surface treatment ensures high electrical conductivity and good corrosion protection 2 Two electrodes design 3 Electrolyte corrosive-proof PTFE Guide Sleeve and Sealing O-rings 4 Compact design fits in any benchtop glove boxes
Cell Thickness	1~3mm (cathode+separator+anode)
Bottom Recess Area	16mm Dia. (The recess area can accommodate the electrodes with size upto 16mm dia.)
Max. Working Temperature	250℃
Valves & Fittings	Two Stainless Steel needle valves and 1/16" tube connector is installed on both gas inlet and outlet
Warranty	One Year limited warranty with lifetime support

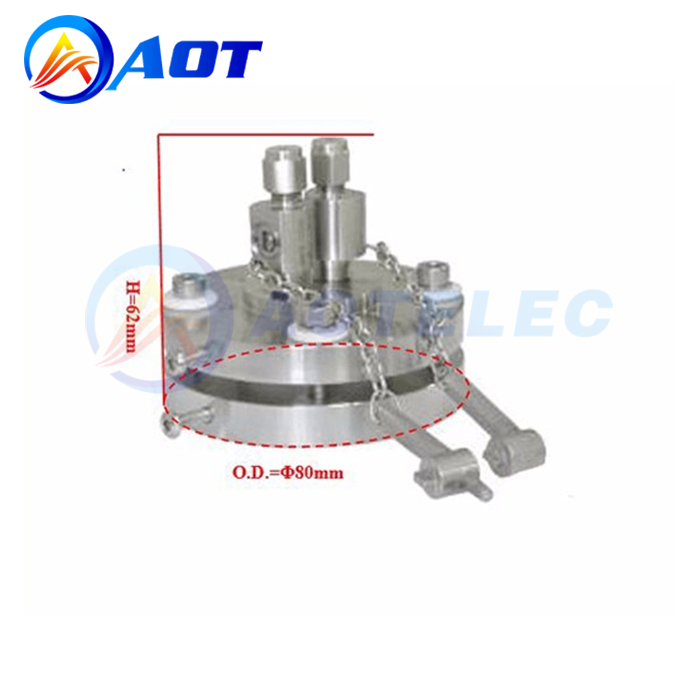

Dimensions	φ80*62mm
