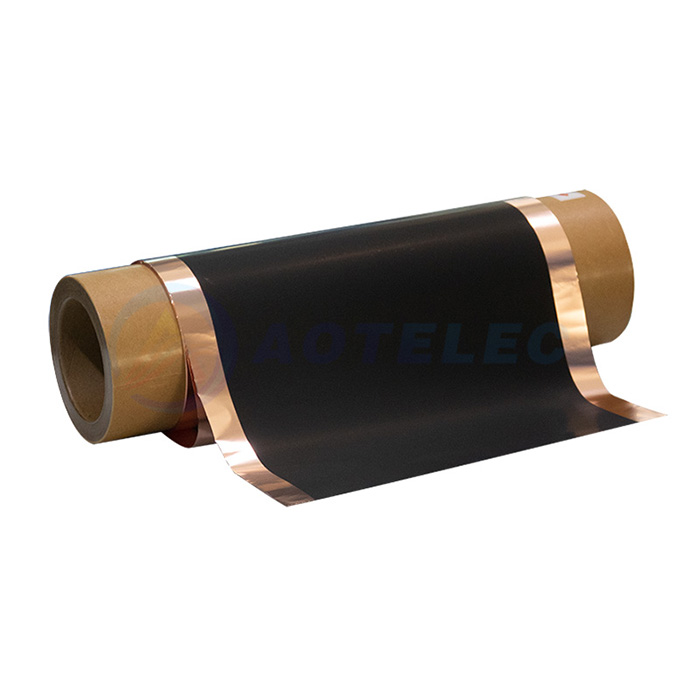

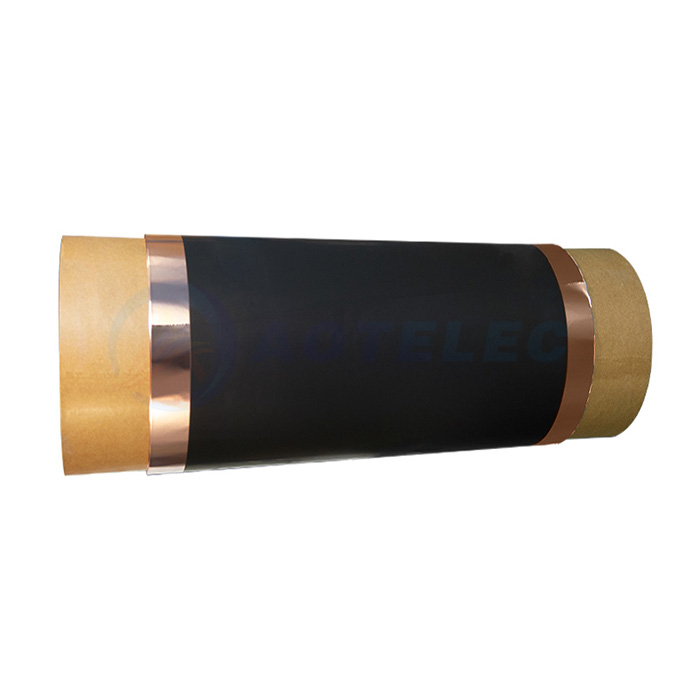

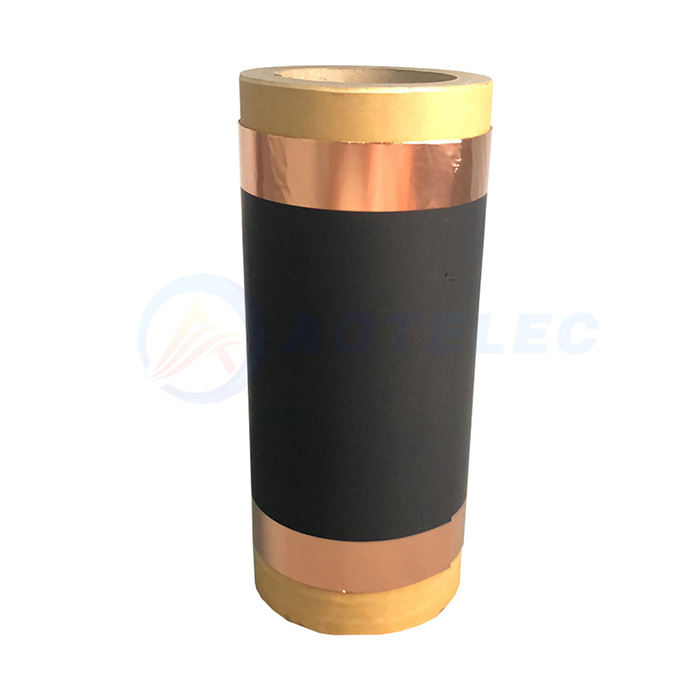

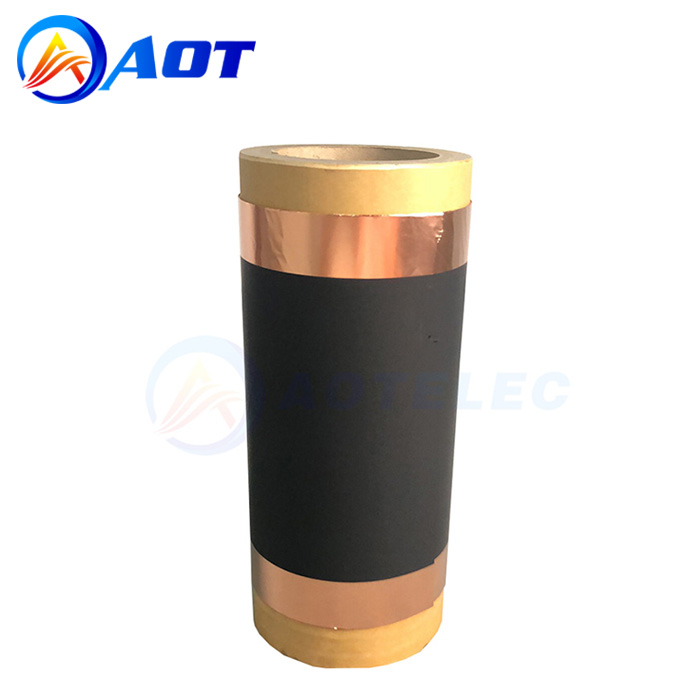

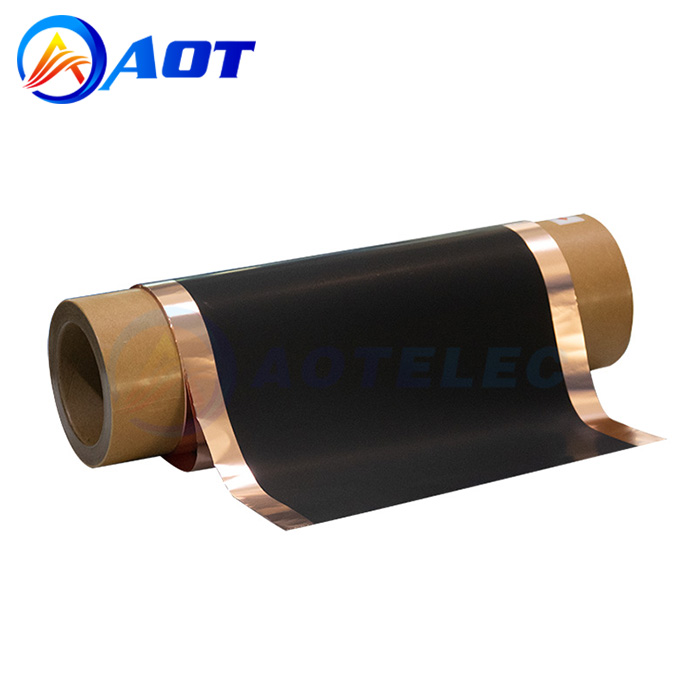

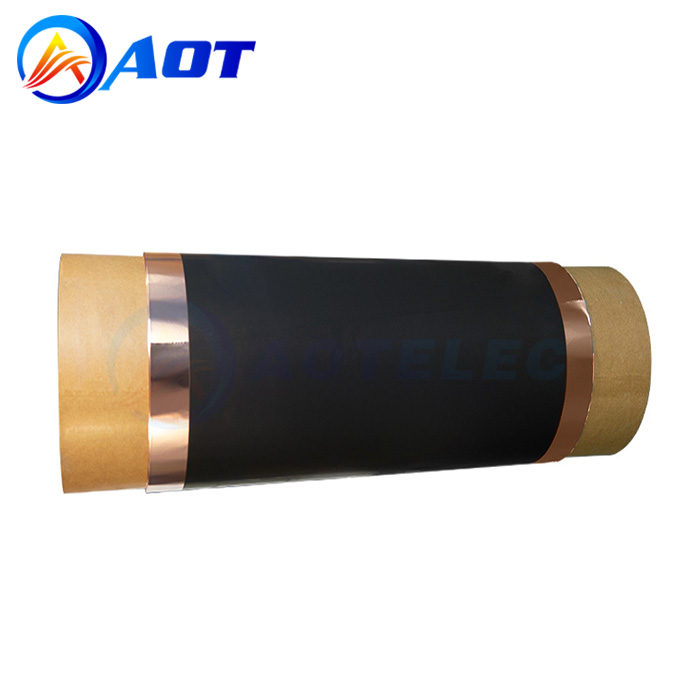

Carbon Coated Copper Foil for Lab Lithium Battery Research

Name: Carbon Coated Copper Foil
Substrate: Pure Copper Foil
Coating Thickness: 1um
Delivery Time: 3-5 days
Product description: Conductive Carbon Coated Copper Foil for Battery Anode Substrate, It is an ideal product for lab battery research.
INQUIRY

Carbon coated copper foil for lab battery research

Substrate sheet: 9umT*280mmW (The different batch has different spec)

Coating thickness: 1um

Conductive Carbon Coated Copper Foil for Battery Anode Substrate

Standard Packing: Vacuum Package

Specification (This is for your reference only, different batch has different spec, please contact sales for getting lastest information)

Product Name	Carbon coated copper foil
Conductive carbon coating	Double side coating with 1 micron thickness each side
Density	0.54 g/m2
Surface resistivity	< 30 ohms per 25um2
Copper Purity	> 99.9%
Copper Thickness	9 um
Coating Width	~ 239 mm
Total Width	280 mm
Total Thickness	11 um
Weigth	1KG or 2KG per roll
