Automatic Desktop Grinder Machine with Agate Mortar for Lab Research

Model: AOT-SFM-8
Origin: China
Power: 150W
Mortar Speed: 0 - 10rpm
Product description: Automatic Desktop Grinder Machine with Agate Mortar for Lab Research
INQUIRY

Automatic Desktop Grinder Machine with Agate Mortar for Lab Research

SPECIFICATIONS

AOT-SFM-8 is designed for grinding & mixing small batch of chemical and compound automatically for R&D laboratory. Its mortar and height adjustable pestle are designed for efficient, easy, and uniform grinding. The mortar can be taken off easily for cleaning. It is an excellent tool for preparing various ceramic materials in research lab so as to save labor. Grinding time can be set using the automated controller. Minimum granularity can be as small as microns even nanometers.

Working Voltage	Input: 24V DC 110- 240V AC to 24V DC power adapter is included Power adaptor is UL , TUV, CSA and CE approval for worldwide use.
Max. Power Consumption	150W

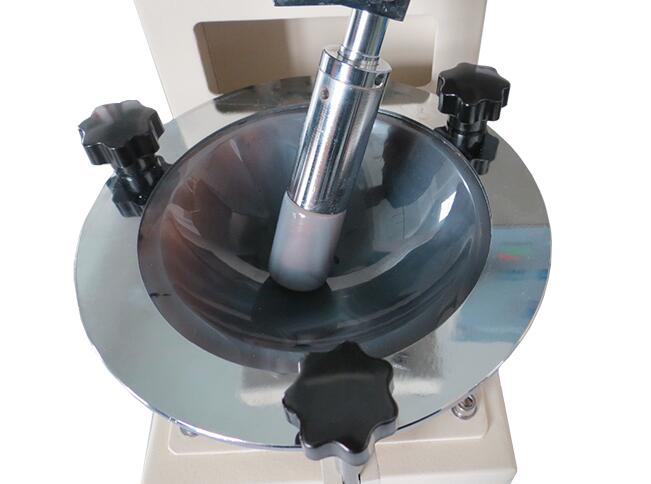

Grinding Bowl	Agate Mortar & Agate Head Pestle included Mortar Dimensions: Ø120mm x 34mm Dia.
Grinding Speed & Pressure	Mortar: 0 - 10rpm Pestle: 0 - 80rpm adjustable Grinding pressure is adjustable by spring
Dimension	300mm(L) x 250mm(W) x 530mm(H)
Net Weight	18kg
Package Dimension	460mm(L) x 460mm(W) x 610mm(H)
Package Weight	22kg
Warranty	One year limited warranty with lifetime technical support
Compliance	CE, TUV, UL, CSA certified in power supply Machine is safe 24VDC input, which can be used without any safety certification
Application note	This compact automatic grinder can be put into a glove box via air-lock port and operate under inert gas
