Voltage

208 - 240V AC (single-phase), 50/60 Hz

Power

Max.4550W

 Jars material

Four 500 mL stainless steel jars

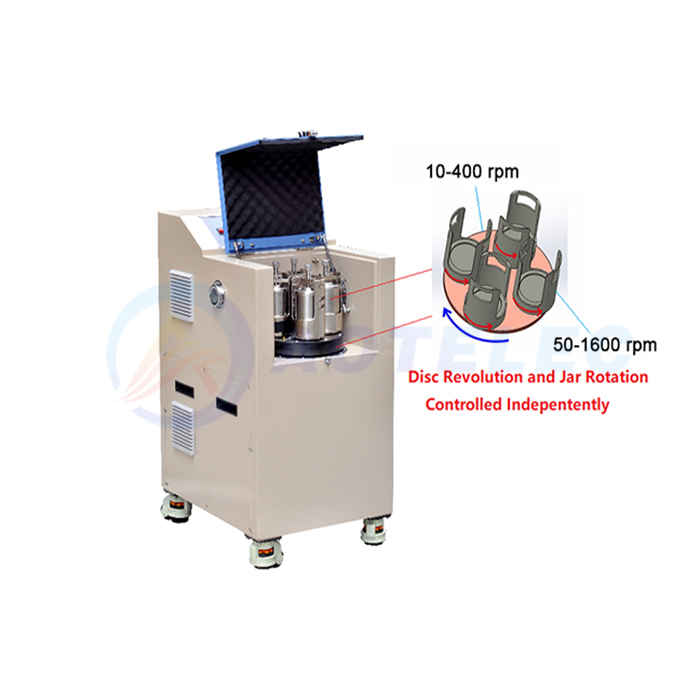

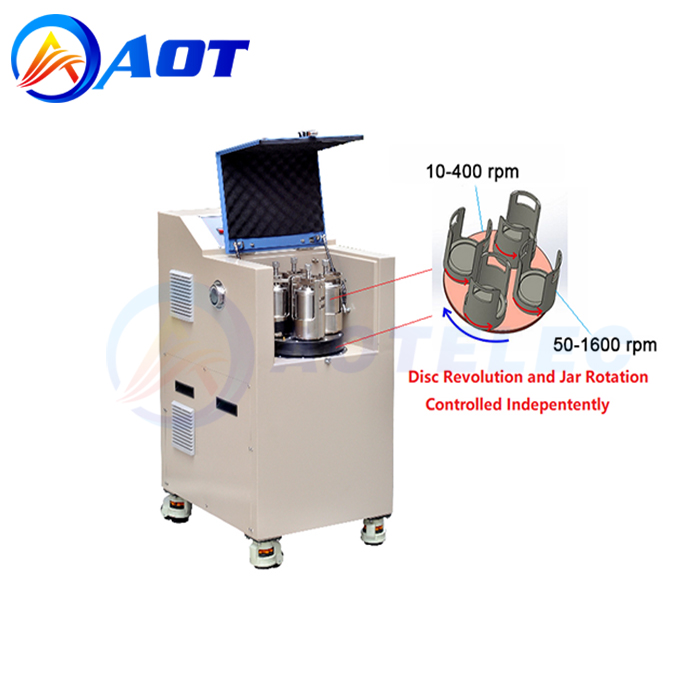

Main disc revolution

10 - 400 RPM adjustable

Centrifugal acceleration:

  Max.  16 g

Milling jar self-rotation

50 - 1600 RPM adjustable

Centrifugal acceleration

120g

Total Centrifugal acceleration

Max136 g

Touch Screen Control

Digital display and inputs for speed and time

Up to 10 recipes can be stored

Max. 8 segments speed control per recipe

Input size

Dia< 3 mm for most materials

Dia< 10 mm  for brittle materials

Output particle

Wet Milling < 1um average,

Dry milling < 20um average

Noise Level

55~70 decibel

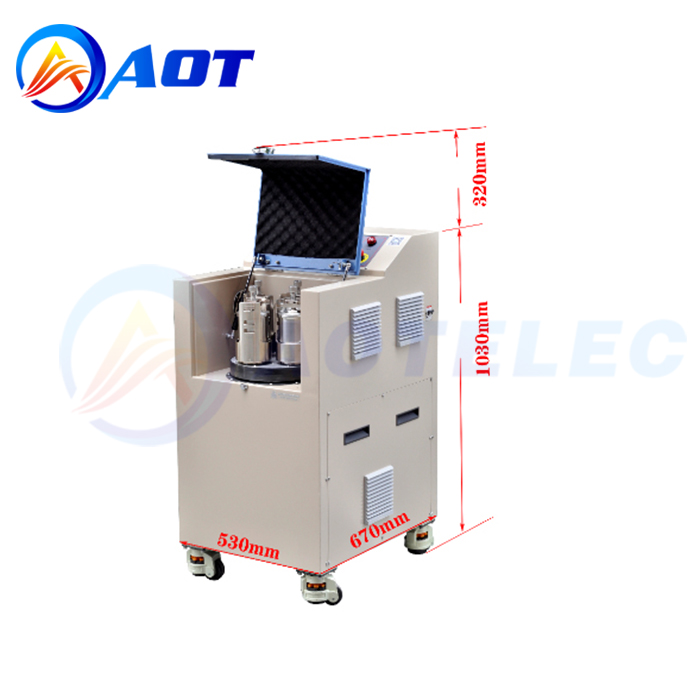

 Production Dimensions

530mmW×670mmL×1300mmH

Weight

246kg

Notes

1

SS304 mixing jar is suitable for grinding various metal materials.

2.In order to avoid contamination,  please pre-milling the material 2-3 times before normally milling, which can make a coating on the surface of the jar and balls.   Please use one jar for one type of material.

3.For milling the oxide material, please choose alumina/Nylon jars and zirconia media. DO NOT USE stainless steel balls in Alumina jars.

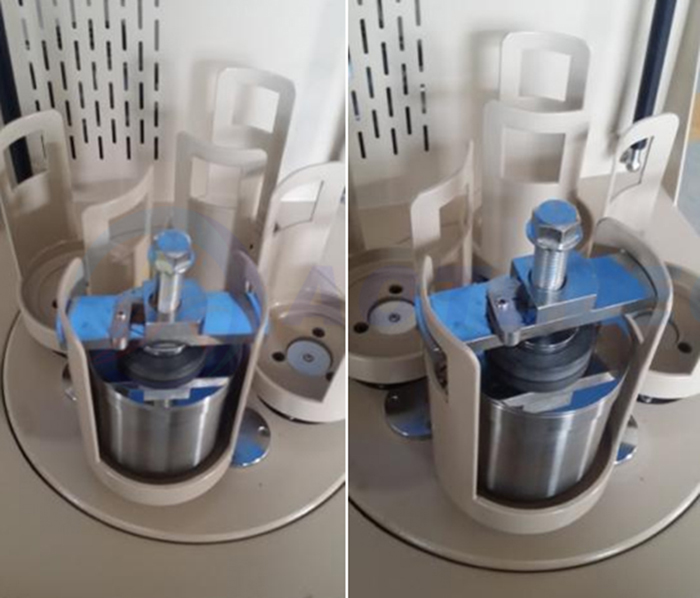

4.Must place 4 jars or 2 in symmetrical with similar weight in the ball mill to keep balance during rotation, If using one jar, you must put another jar with the same weight in a symmetrical position.  Otherwise, unbalance rotation, especially one jar, may damage the machine.
