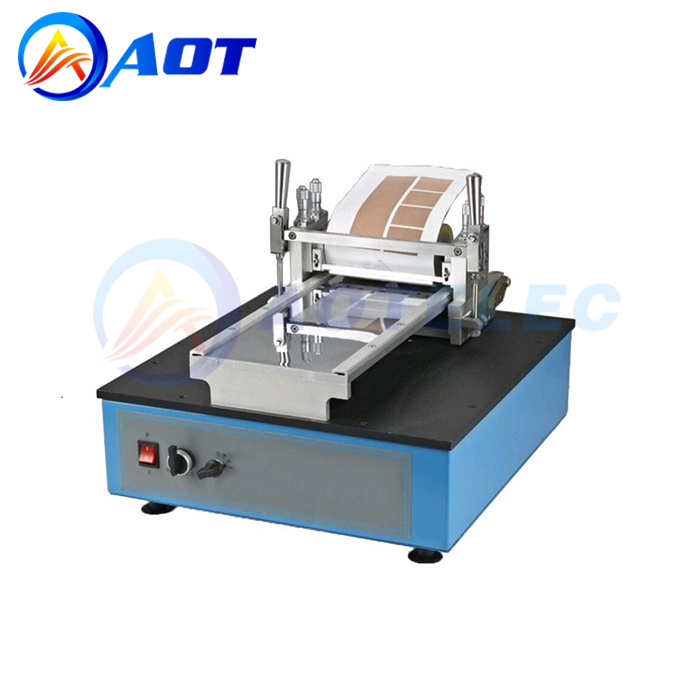

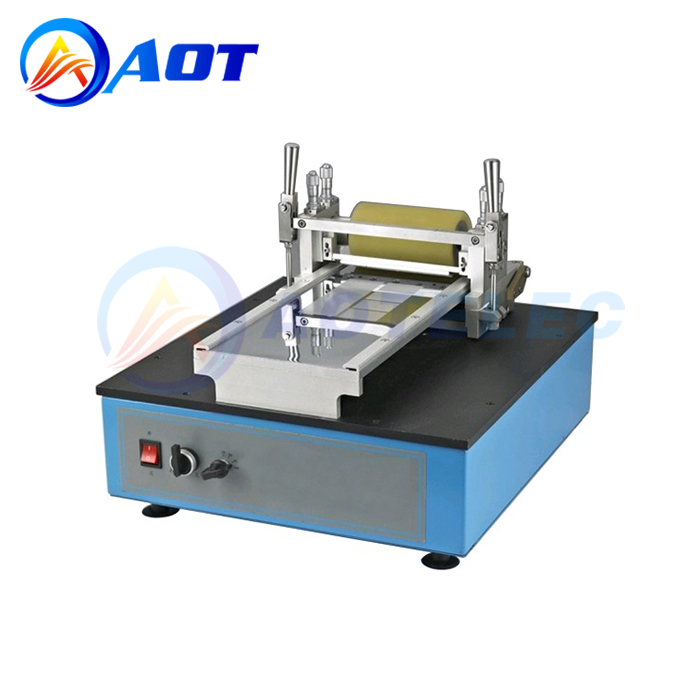

GPC-149 is a compact sheet-fed gravure printing/coating machine for printing and coating various electric circus on the flexible substrate. It is the ideal machine for testing the quality of single or multi-layer printing/coating at a fast speed with minimum ink or slurry ( < 1 ml ) at an area up to 149 L x 95 W (mm).
It can be used in the research of OLED, solar cell, and battery.
Specifications:
Working Voltage | · 208 - 240VAC Single Phase, 50/60Hz · 200W Max. |

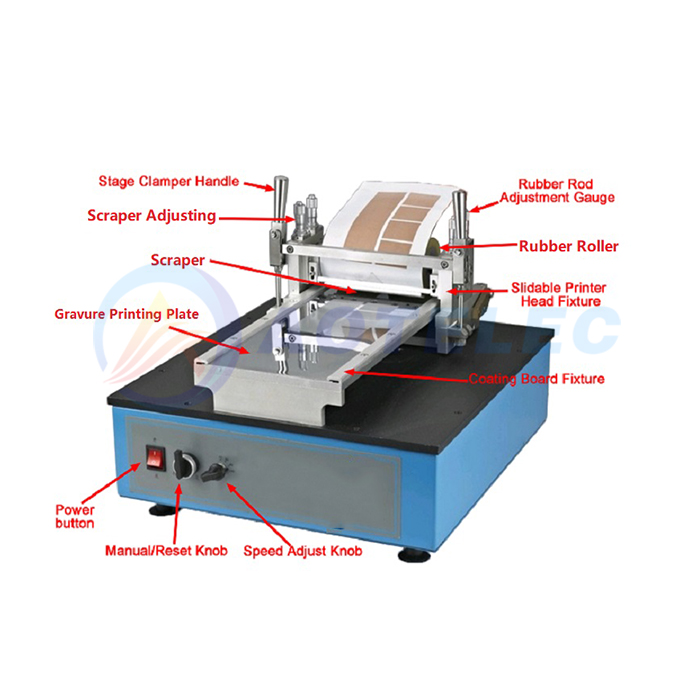

Machine Structure | · Max. Printing/ coating area : 95W ×149W (mm) · Printing speed: Four segments speed adjustable 20/30/40/45m/min · Substrate size: 120 w × 240 L mm suggested · One gravure plate is included for testing purpose ( as shown in the picture ) · The customized gravure plates are available upon request at the extra cost |
Warranty | · One year limited warranty |
Dimension | · 500×400×350mm |
Net Weight | 26kg |
