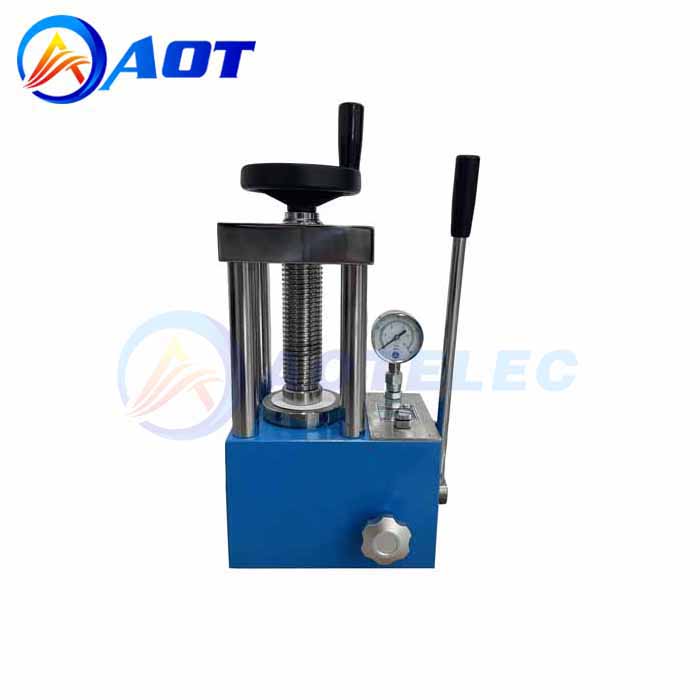

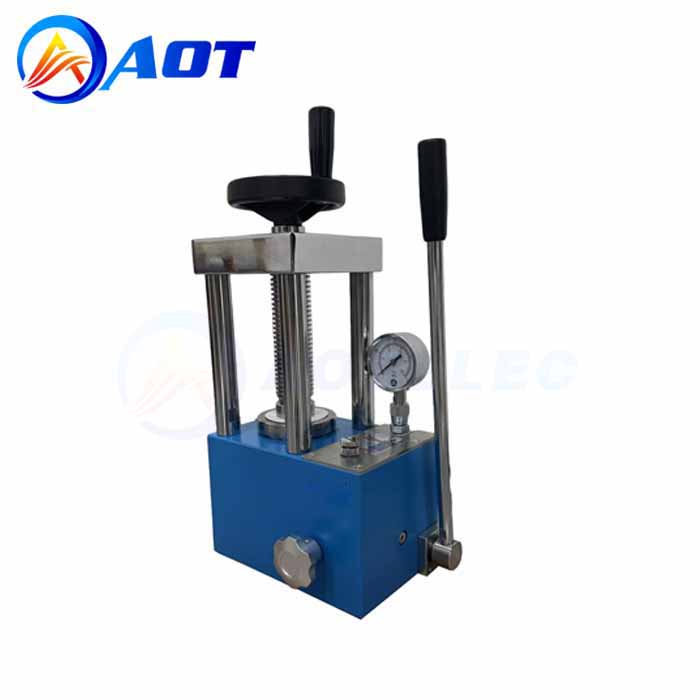

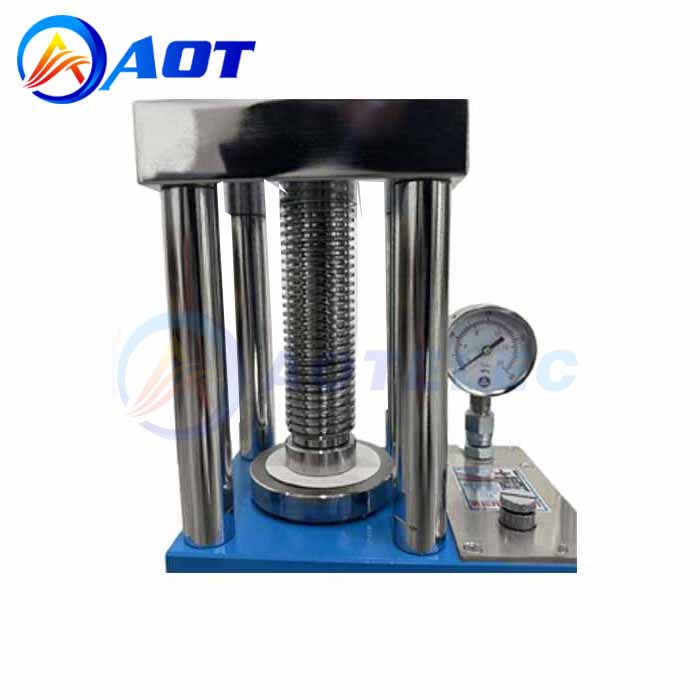

Manual powder tablet press(5T-40T Optional) for lab research

Manual powder tablet press(5T-40T Optional) for lab research

Product Name:Manual powder tablet press
Modle:AOT-MC-540
Brand Name:AOT
Product Orgin:China
Product description: AOT-MC-540(5T-40T Optional) It is easy to operate and can be used without complex training, and users can flexibly adjust the pressure.
INQUIRY

AOT-MC-540 It is easy to operate and can be used without complex training, and users can flexibly adjust the pressure according to actual needs to adapt to the characteristics and pressing requirements of different powder materials.

Specification：

Instrument type	AOT-MC-5	AOT-MC-12	AOT-MC-15	AOT-MC-24	AOT-MC-30	AOT-MC-40
Pressure range	0-5T	0-12T	0-15T	0-24T	0-30T	0-40T
Piston diameter	Φ45mm	Φ70mm	Φ80mm	Φ95mm	Φ110mm	Φ130mm
manometer	Two-scale display	Two-scale display	Two-scale display	Two-scale display	Two-scale display	Two-scale display
Maximum piston stroke	30mm	30mm	30mm	30mm	40mm	50mm
Pressure stability	<1mpa/10min	<1mpa/10min	<1mpa/10min	<1mpa/10min	<1mpa/10min	<1mpa/10min
Table diameter	Φ80	Φ80	Φ90	Φ105	Φ120	Φ130
Number of columns	Two columns	Two columns	Two/Four columns	Four columns	Four columns	Four columns
Overall dimension	210150350mm	225155380mm	245175390mm	245175415mm	275195420mm	295215500mm
weight	20kg	28kg	38/40kg	42kg	56kg	75kg
Column spacing	85*120mm	96*130mm	140*150mm	80*150mm	92*160mm	106*185mm
Die diameter	3-14	3-25	3-40/3-25	3-40	3-40	3-60

Exhibition

AOT Lithium battery equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.

certificate

FAQ

Q1:How long do you need to prepare my goods?
A:3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).

Q2:Can we have our logo or company name to be printed on products or package?
A:Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.

Q3:How can I install and operate the machine by myself?
A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.

Q4:How to get technical support after purchasing?
A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.

Q5:What's the warranty for the items?
A: We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately. Warranty for equipment is 1 or 2 year (12 or 24 months depends on the type of products), If the equipment parts are damaged due to non-human factors within one year, we will provide replacement parts free of charge
