Manual Hydraulic Coin Cell Crimping Machine for All Kinds of Coin Cells

Manual Hydraulic Coin Cell Crimping Machine for All Kinds of Coin Cells

Model: AOT-MSK-110
Origin: China
Usage: CR20XX coin cells
Material: 304 stainless steel
Product description: Manual Hydraulic Crimping Machine for All Kinds of Coin Cells. AOT-MSK-110 is a new design and CE Certified manual coin cell crimper machine with lighter weight and a smaller footprint. The crimping
INQUIRY

Manual Hydraulic Crimping Machine for All Kinds of Coin Cells

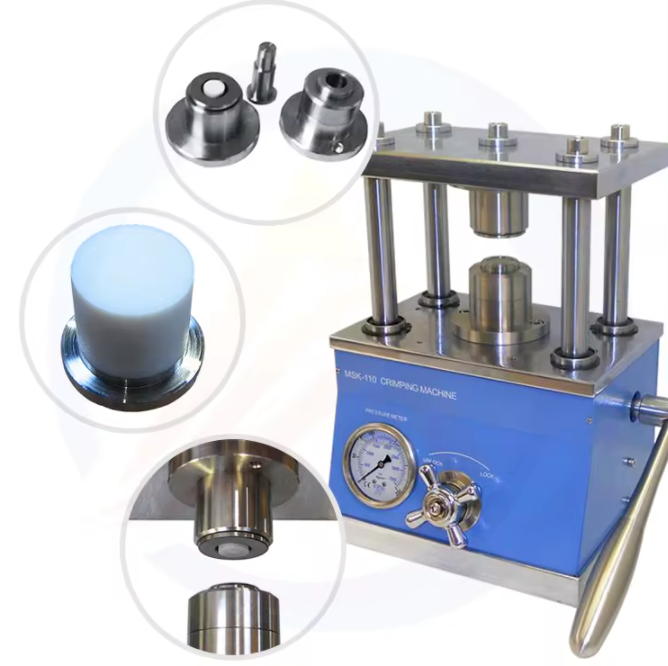

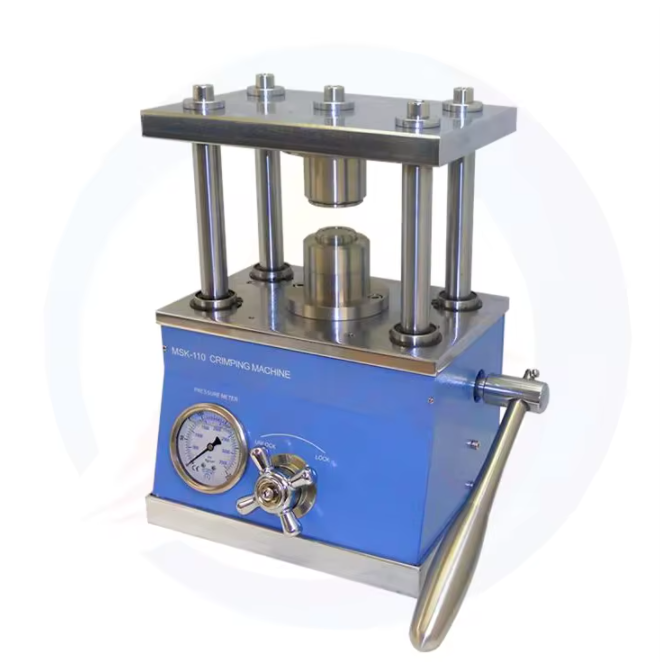

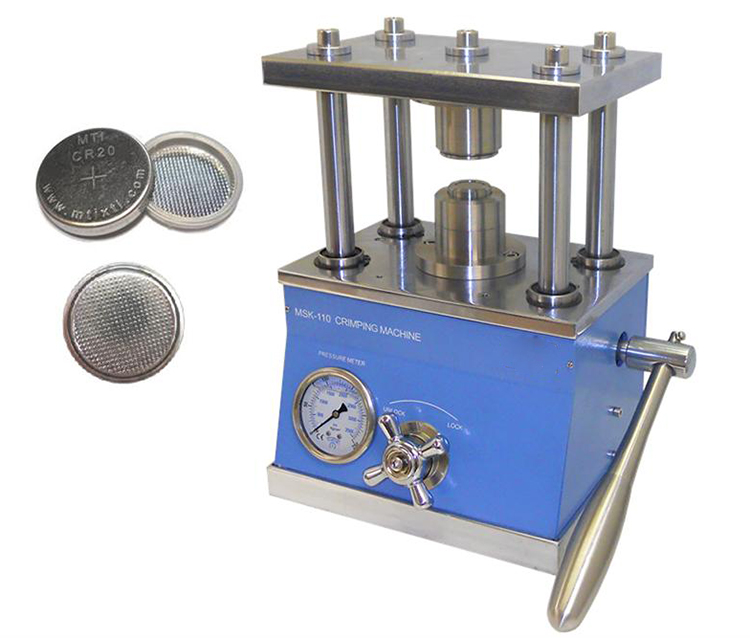

AOT-MSK-110 is a new design and CE Certified manual coin cell crimper machine with lighter weight and a smaller footprint. The crimping machine is suitable for sealing various types of coin cells such as CR2032,CR2025,and CR2016 with included die. It can also crimp CR2325, CR2450, AG3, AG5 and other special size cases with optional die sets.

SPECIFICATIONS:

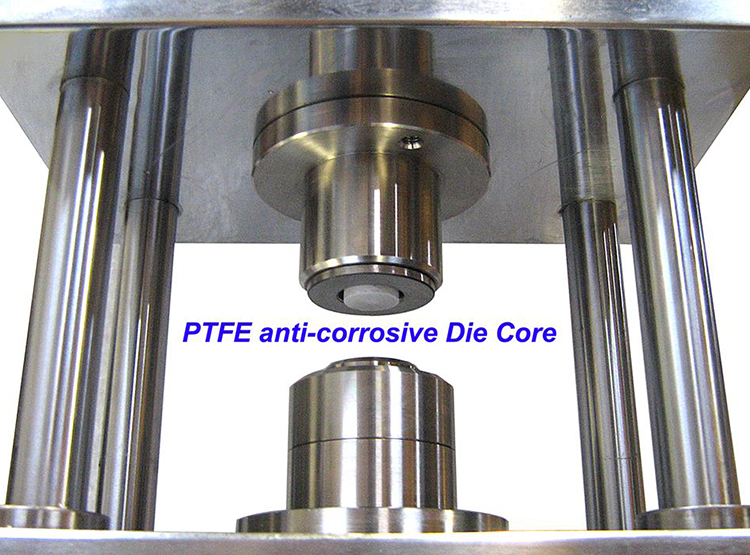

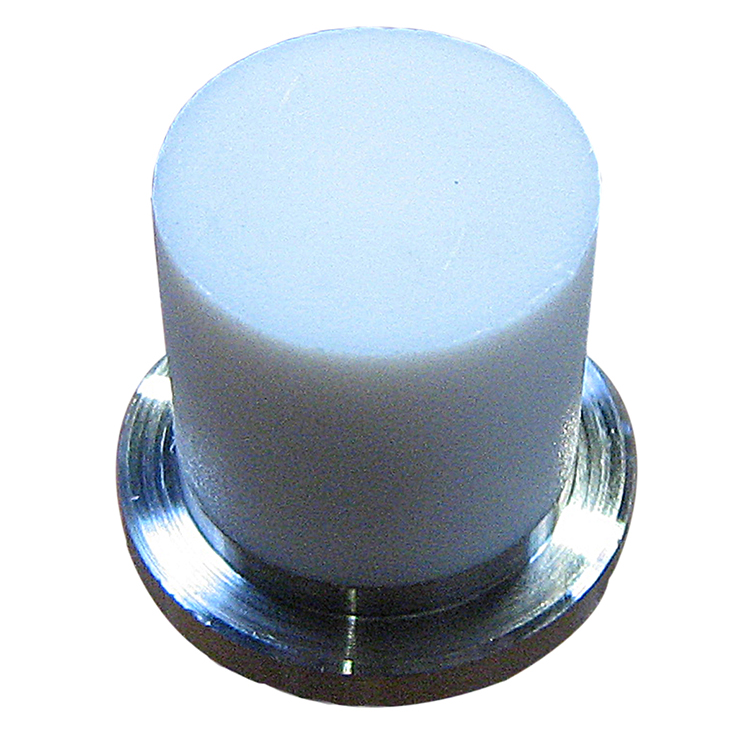

Features	Heavy duty steel frame PTFE Anti-Corrosion Core prevents coin cells from being short-circuited

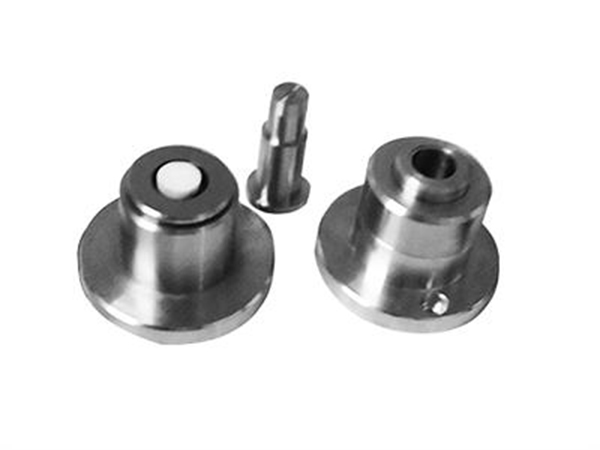

Crimping Die	Optional die available from product option for crimping CR20XX, CR12XX, CR23XX, CR24XX, AG3, AG5
Pressure	Max. 8 metric Tons hydraulic pump with automatic pressure relief Max.200 Kg/cm2 on CR20XX series coin cell
Warranty	One year limited manufacturer warranty with lifetime support.
Product Dimensions	223mm X 170mm X 325mm
Compliance	CE Certified
Net Weight	25 kg
Application Notes	Attention: The built-in small hydraulic pump is not designed for holding high pressure. The pressure inside will be released gradually after reaching 50~80 Kg/cm^2, (which is sufficient for disassembling the coin cell).
