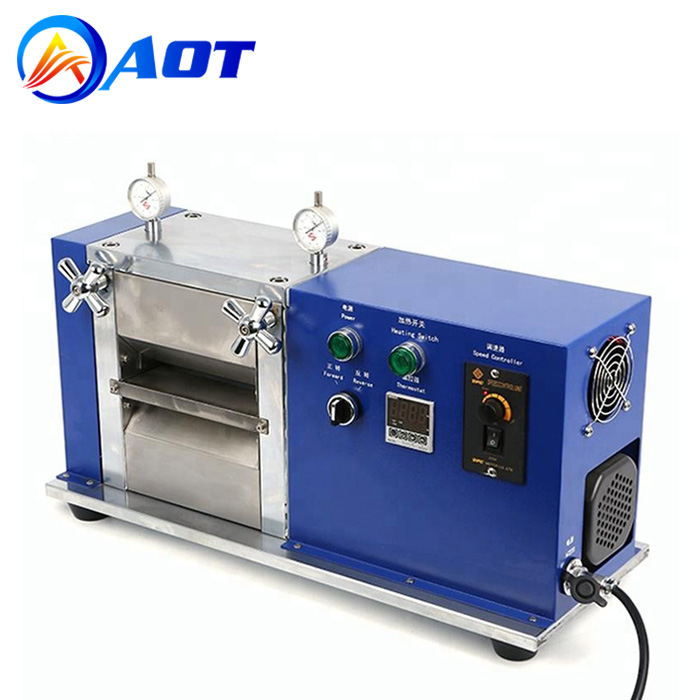

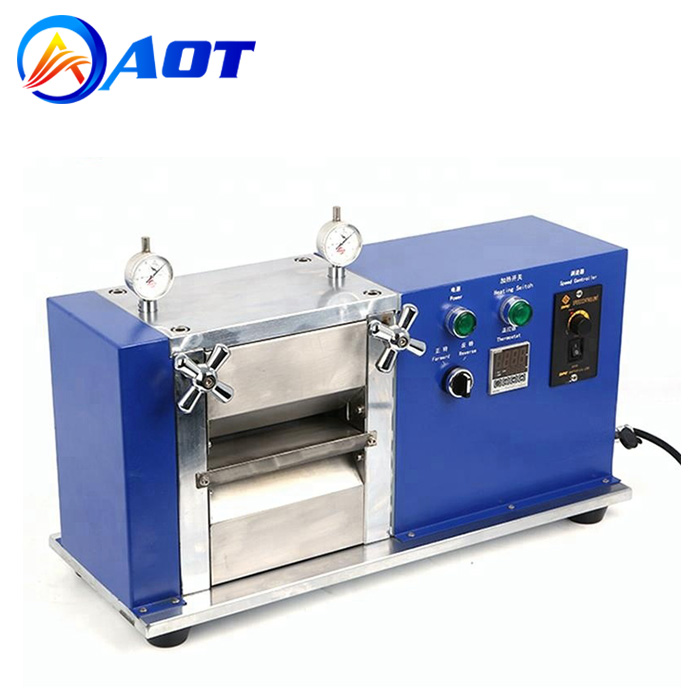

Lab Hot Roller Press Machine for Battery Electrode Sheet

Model: AOT-HRP-100
Origin: China
Roller width: 100mm
Application: Battery Sheet Pressing
Product description: Hot roller press machine is a compact hot rolling press machine mainly serves for pressing samples in the lab or other applications in the material research especially for increasing active material d
INQUIRY

Lab Hot roller press Machine for Battery Electrode Sheet

Features :

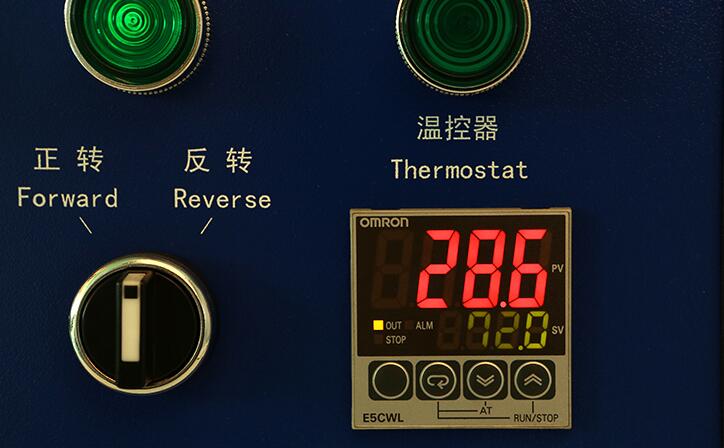

1. Heat rolling, temperature can be regulated & digital displayed.

2. Rolling hardness is high, surface plated by chrome treatment that hardness can reach HRC 62 and anti-rust.

3. Install transparent protection plates for safety use.

4. Vertical design for convenient feeding and pressing of strip and piece materials.

5. Use gear engagement to accomplish rolling press.

6. Thickness and speed can be regulated.

7. Electric rolling makes automation

8. Small dimension, convenient and operation, flexible and quick use.

BATTERY LAB EQUIPMENT-Battery electrode calendering machine AOT-HRP-100
Item Name	battery material hot presser
Roller diameter	2~Φ96mm
Roller hardness	HRC62
Roller finish	Ra > 0.8
Pressing thickness	0~2mm, adjustable
Pressing sheet width	0~100mm
Roller placing	vertical placed
Rolling temperature	Room temperature ~120℃, adjustable, with digital display
Operating method	Electrical
Voltage and Frequency	AC220V/50Hz
Power	750W
Feeding Speed	0~40mm/s
Dimension	L500mmW220mmH320mm
Weight	60KG
