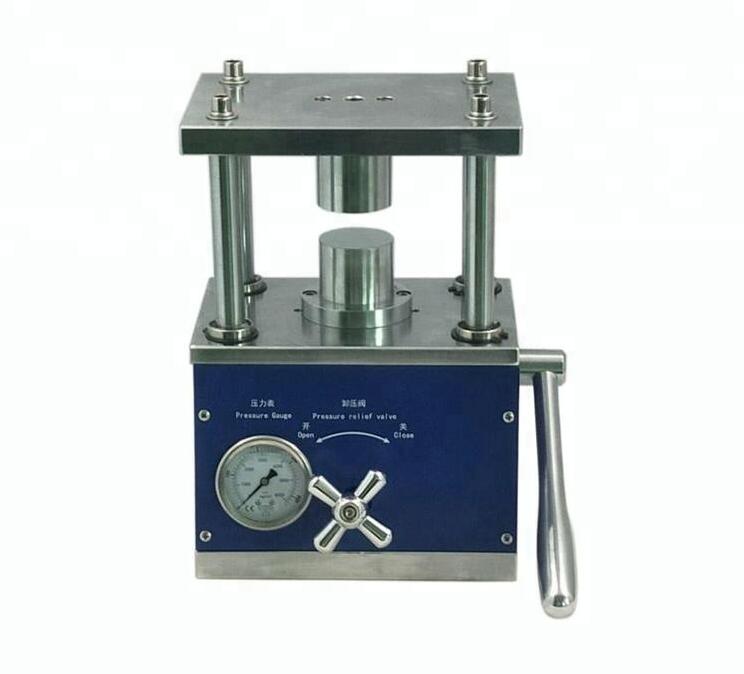

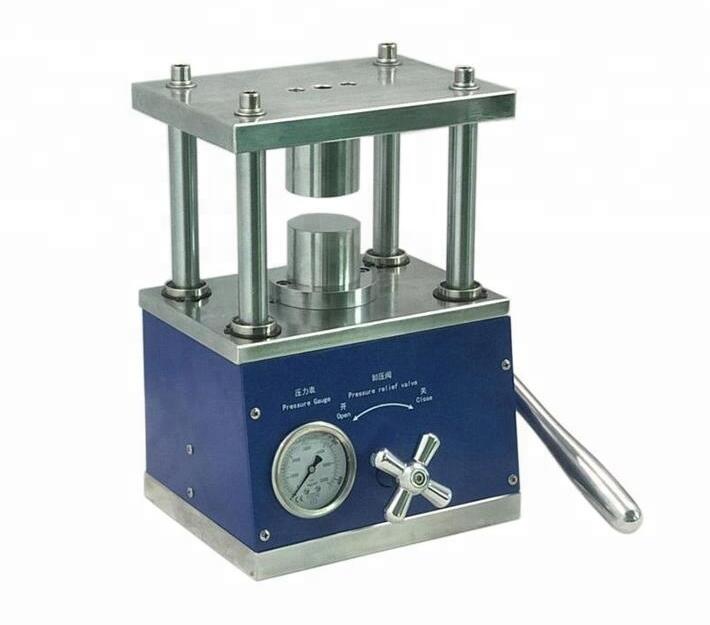

Lab Manual Hydraulic Tablet Press Machine for Coin Cell Battery Electrode

Model: AOT-YP180
Origin: China
Material: 304 Stainless Steel
Max Pressure: 200kg/cm2
Product description: Hydraulic Tablet Press Machine for Coin Cell
INQUIRY

Hydraulic Coin Cell Material Tablet Press Machine

Specification

1 AOT-YP180 Model Hydraulic press machine is a desktop manual pressing machine for materials / chemistry research laboratories to prepare compound ceramic sample.

2 The Hydraulic press machine is mainly used for laboratory tablet battery materials manual press, and Pressure powdery cake. It is mainly used for coin cell/ button battery electrode lab press.

3 The Manual press machine mould can be customized according to customer’s requirements.

Model	Hydraulic press machine AOT-YP180

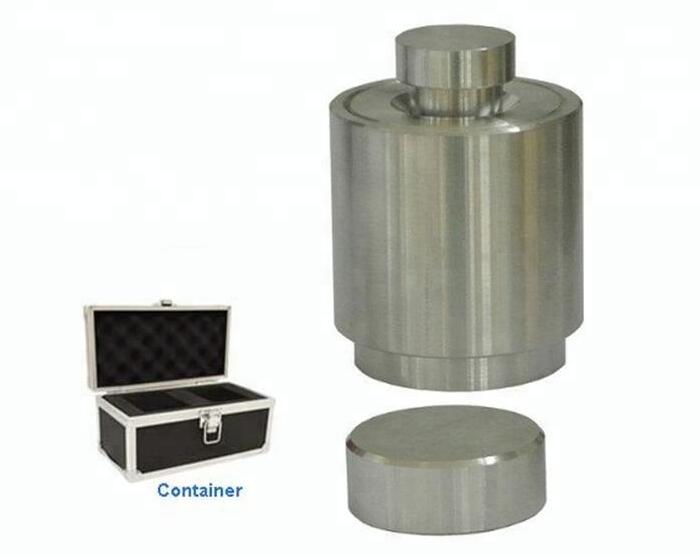

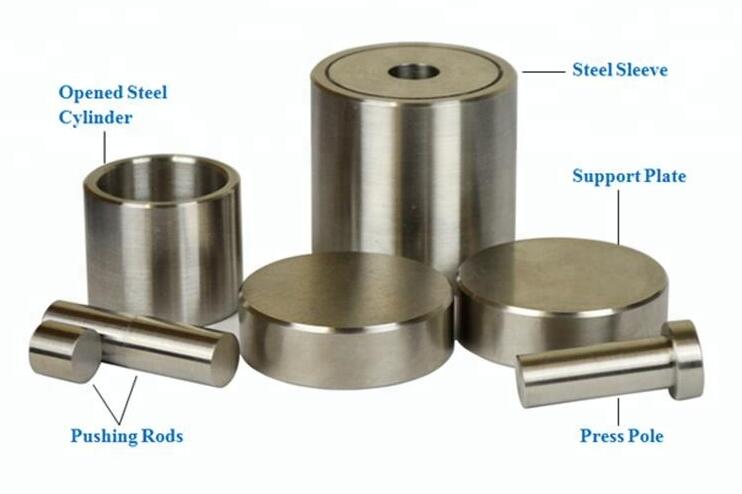

Press die size	StandardDiameter is 68mm, can becustomized
Press stroke	Max30mm
Advantages	By using aluminum alloy and high strength steel, surface after the environmental protection electroplating processing will never rust Using high quality imported mould material
Rocker Pressure	<6kg
Max Pressure	200kg/cm2 (The hydraulic drive pressure up to 8T, the battery sealing no vibration, no leakage)
Working Pressure	80-100kg/cm2
Dimension(LWH)	232165320mm
Weight	28kg
Shipping Weight	35kg
Warranty	One Year limited warranty with lifetime support
