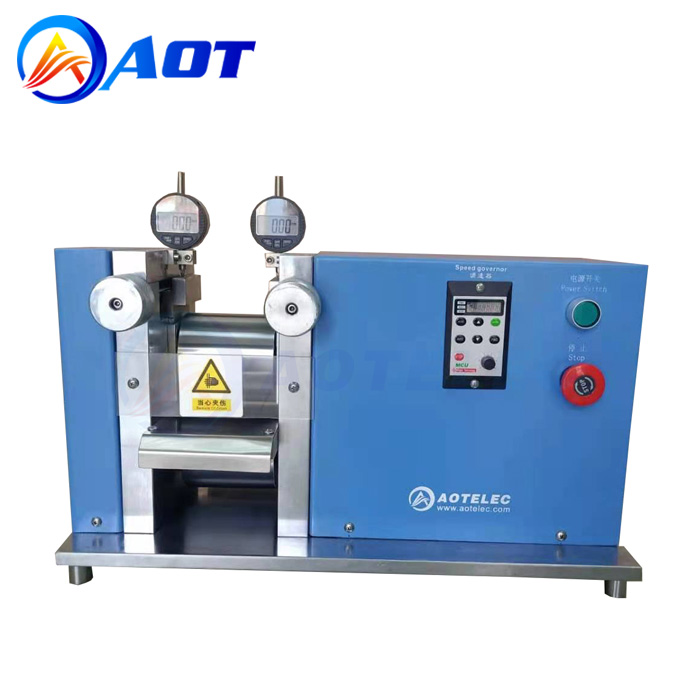

Electric Lab Roller Press for Battery Electrode Piece Calendering

Electric Lab Roller Press for Battery Electrode Piece Calendering

  • Model: AOT-ERP-100L
  • Rolling width: 100mm(customized)
  • Origin: China
  • Warranty: 1 Year
  • Product description: This type of electric roller press is specially used for calendering of small lithium electrode sheets in lab.
  • INQUIRY

Description:

This type of roller press is specially used for electric rolling of small lithium electrode sheets, a small amount of precious metal materials such as gold and silver, and non-ferrous materials such as copper and aluminum. It is especially suitable for thinning and increasing the density of lithium battery electrode sheets of clean energy materials. This machine adopts gear transmission, realizes the roll pressing, the rolling thickness can be adjusted, it is convenient to use, and it can realize the intuitive control of the material pressing thickness with the dial indicator.



Working principle:

This equipment is driven by a geared motor to drive a high-hardness pressing roller, and the gap between the pressing rollers is mechanically adjusted to make the battery electrode pieces pressed into shape and increase the density of the electrode sheets.



Technical Parameters:

Item Name

electric roller press for Battery Electrode Calendering

Watt

150W

Voltage

220V/50Hz (110V 60Hz can be customized)

Rolling width

100mm

Roller diameter

100mm

Roller material

Imported material 9CR2MO

Surface hardness

HRC62

Roll surface finish

>0.8um, Hard chrome plating will never rust

Pressing gap

0-3mm adjusted

Rolling speed

0~4m/min, adjusted

Dimension

L650mm*W325mm*H325mm

Weight

75KG

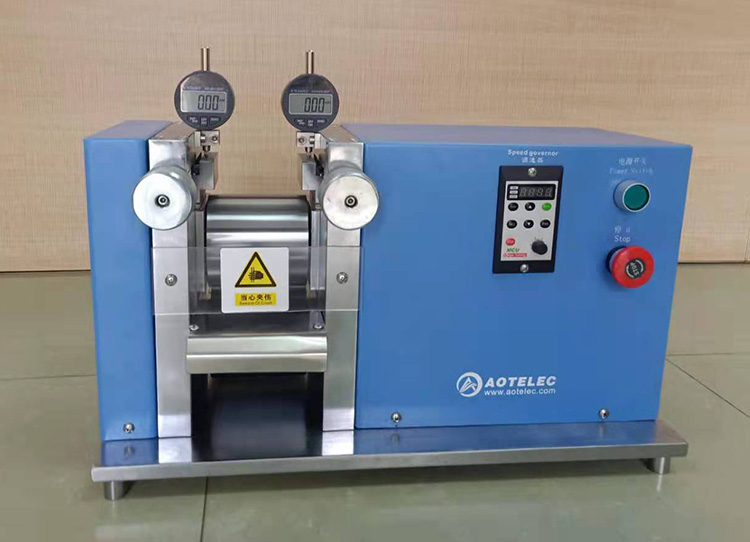

AOT Electric Roller Press for Battery Electrode
