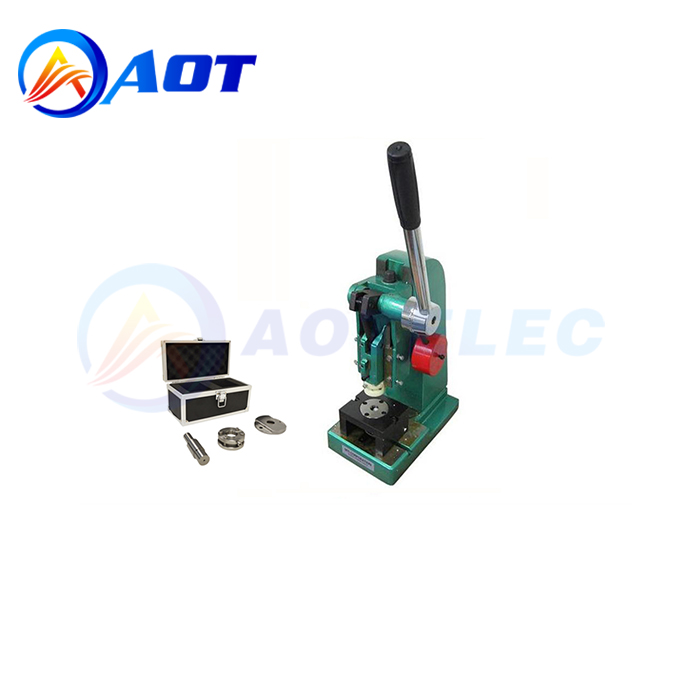

Heavy Duty Disc Cutter with 4 Sets Die For Coin Cell Battery

Heavy Duty Disc Cutter with 4 Sets Die For Coin Cell Battery

Product Name: Disc Cutter
Max. Nominal Pressure:600 kN
Model Number:AOT-MSK-T-06
Origin: China
Product description: AOT-MSK-T-06 is a precision disc cutter with max. the pressure of 600kN. This tool is manually operated and is designed for cutting round discs from a thin metal sheet/foil in the range from 0.01 mm
INQUIRY

AOT-MSK-T-06 is a precision disc cutter with max. the pressure of 600kN. This tool is manually operated and is designed for cutting round discs from a thin metal sheet/foil in the range from 0.01 mm to 0.10 mm (such as Cu, Al, and stainless steel ). The resulting discs can be used as electrode/separator discs of the split test cell and coin cell for battery researchers.

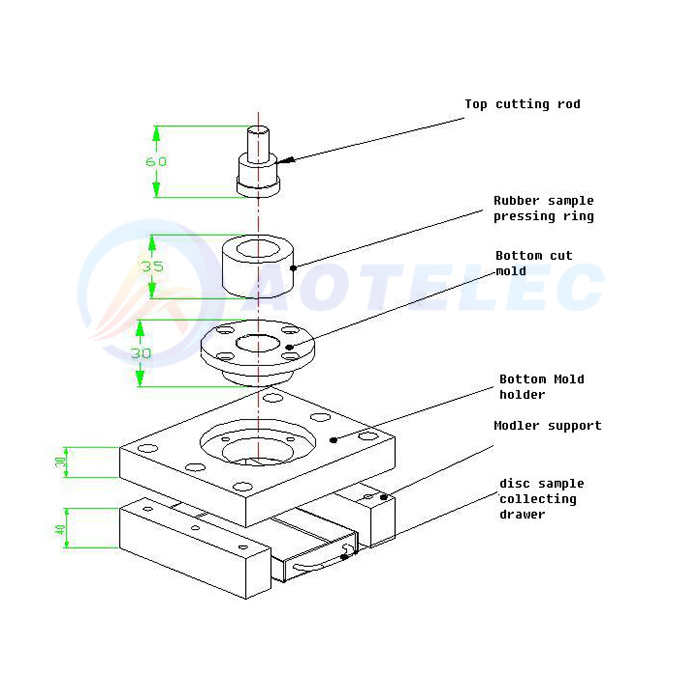

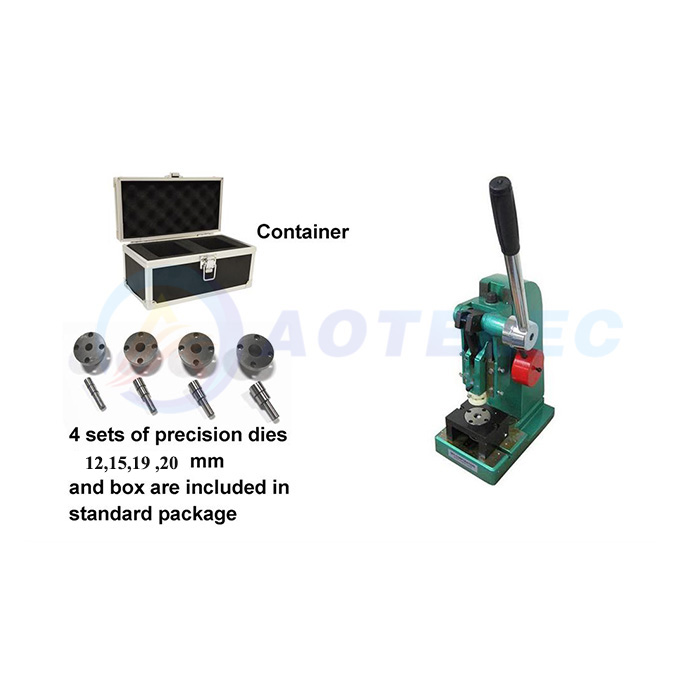

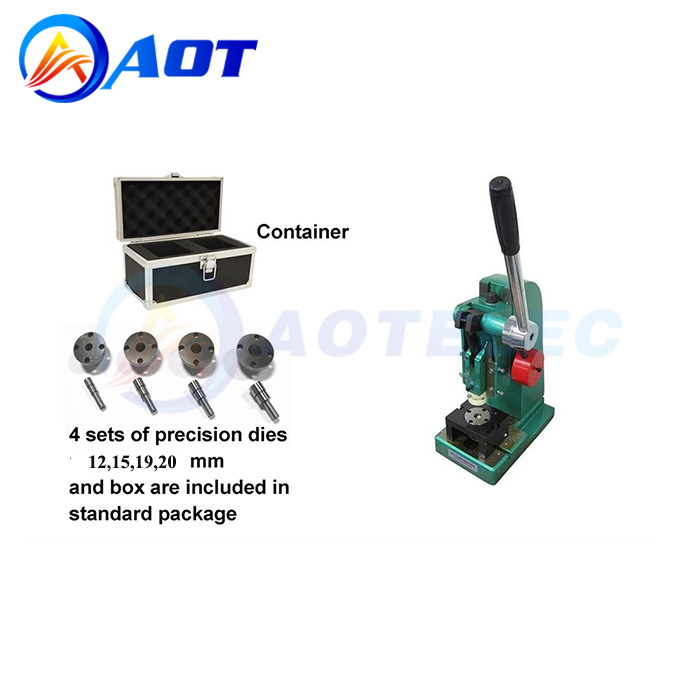

The disc cutter comes with 4 cutting dies in 12, 15, 19, and 20mm.

SPECIFICATIONS:

Max. Nominal Pressure	600 kN
Max. Stroke	40 mm
Max. cutting thickness	200 microns
Hole Diam. for upper mold insert	12mm
Cutting Dies	Four sets of cutting dies (12, 15, 19, 20 mm) are included in the standard package, which is made of hardening tool steel 15mm (for electrode discs of CR20xx series coin cell cases) 19mm (for electrode discs of CR20xx series coin cell cases and CR2325 negative side cases) 20mm (for electrode discs of CR2450 cell cases, CR2325 positive side cases, and separator discs of CR20xx series coin cell cases) Optional sizes available in 10, 12.7 (1/2''), 16, 18, 24 mm diameter at extra cost. 24mm (for electrode and separator discs of CR24+ cell cases.)
Cutting thickness	0.01 mm - 0.10 mm for all type material with hardiness < RC 40 mm Note: Thicker foil will result in the shorter the life of the die

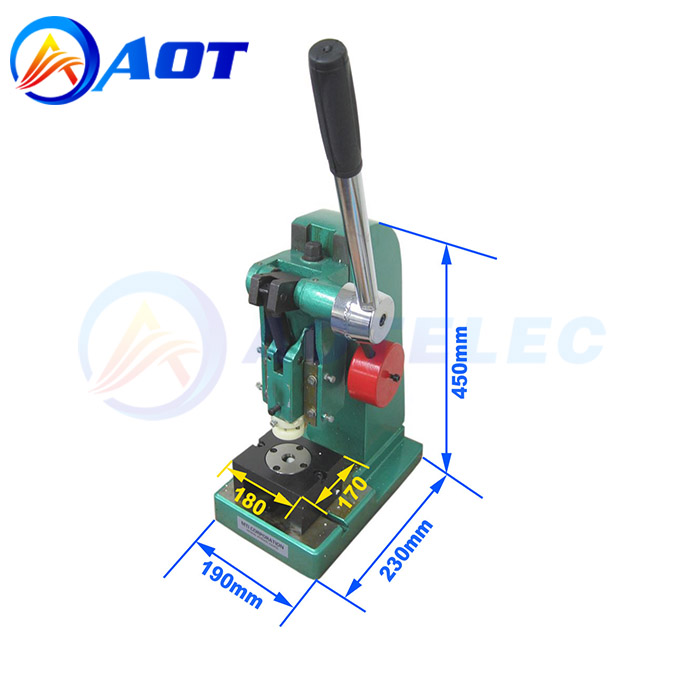

Product Structure and Dimensions	· The base is made of cast iron · Dimension: 230mm(L) x 190mm(W) x 450mm(H)
Warranty	One-year limited manufacturer warranty with lifetime support No warranty for die set caused (*Rusted and damaged parts due to improper storage condition or maintenance are not covered by warranty)
Net Weight	39kg
