Precision CR20XX Coin Cell Disc Cutter Machine for Battery Separator Round Discs Cutting

Precision CR20XX Coin Cell Disc Cutter Machine for Battery Separator Round Discs Cutting

Model: AOT-DC60
Name: Coin Cell Punching Machine
Applicaton: Coin Cell Electrode and Separator Round Sheet Cutting
Die Diameter: 6-24mm Customized
Product description: Coin cell disc cutter machine is manually operated and is designed for cutting round discs from a thin metal sheet /foil (< 0.5 mm) or separator film (<30um). The finished discs can be used as electro
INQUIRY

Precision Lab Coin Cell Disc Cutter with Optional 6-24mm Punching Die

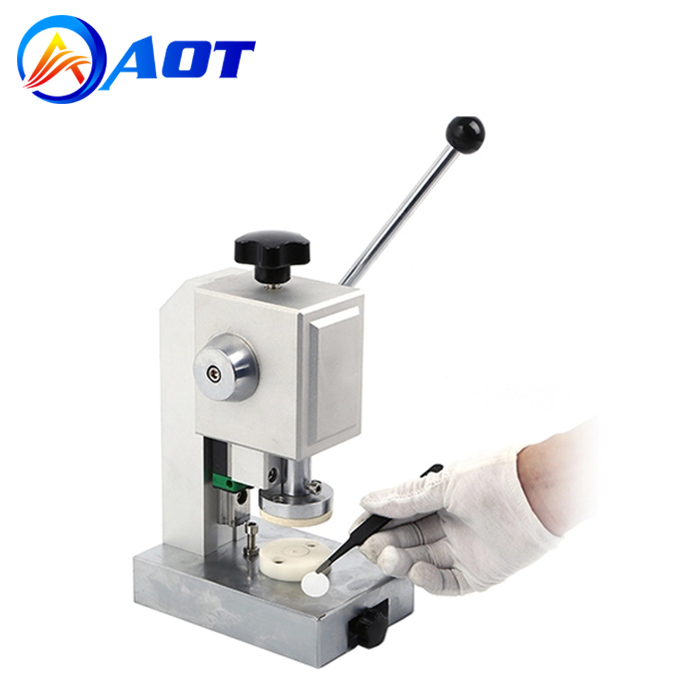

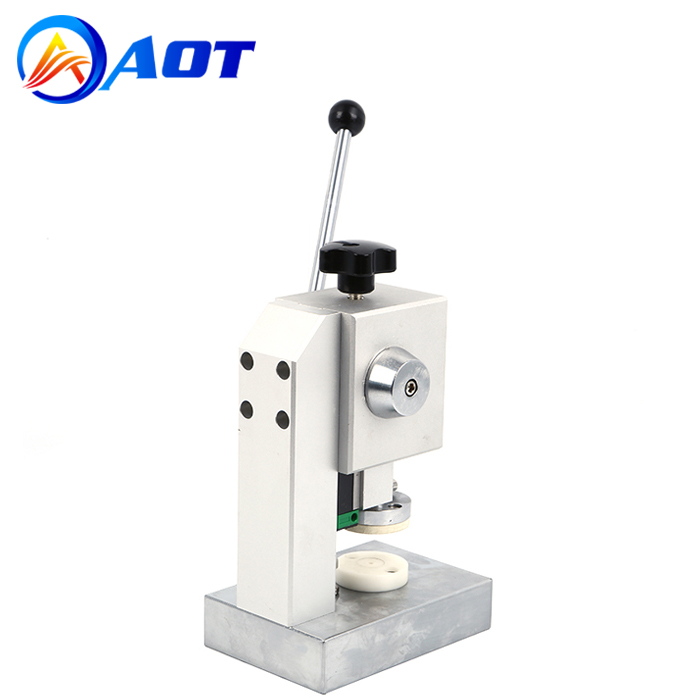

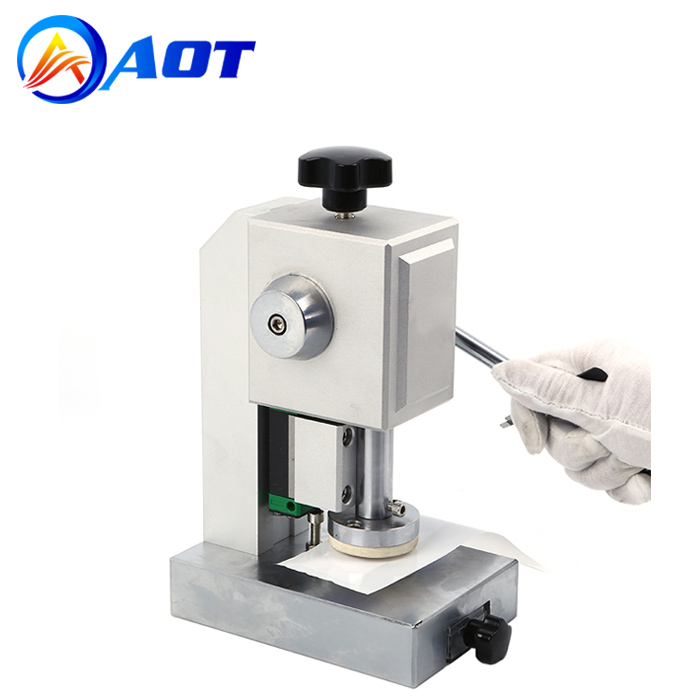

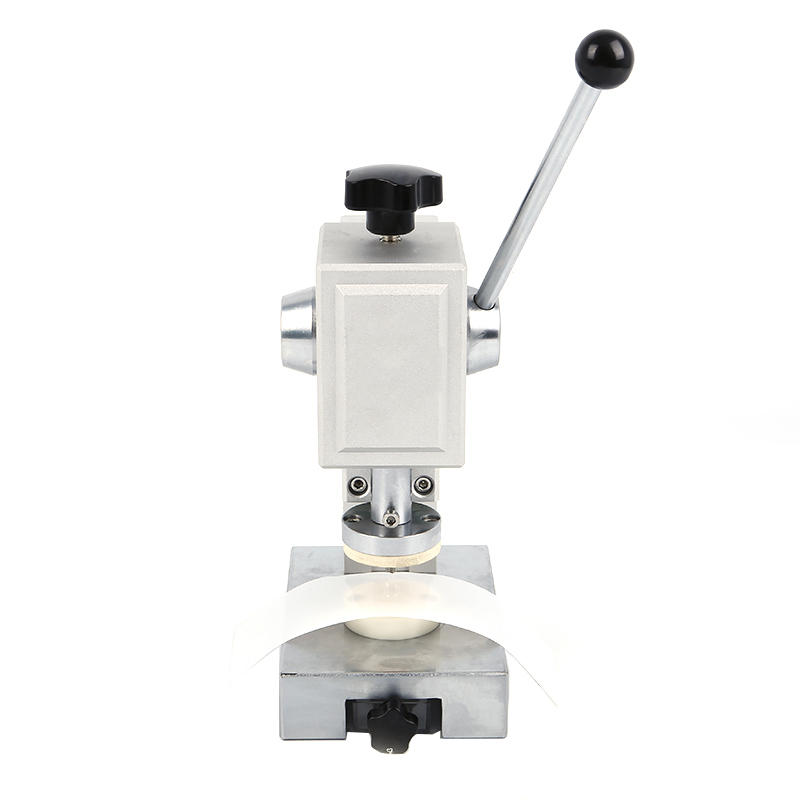

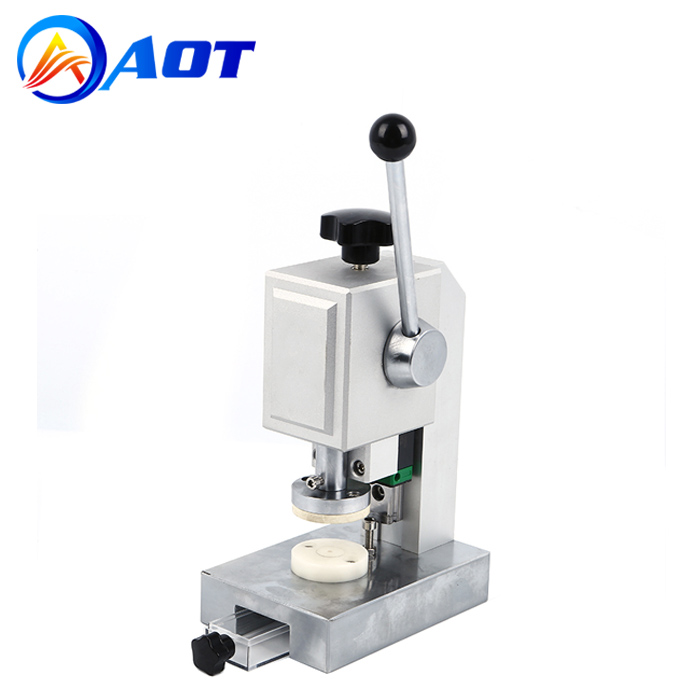

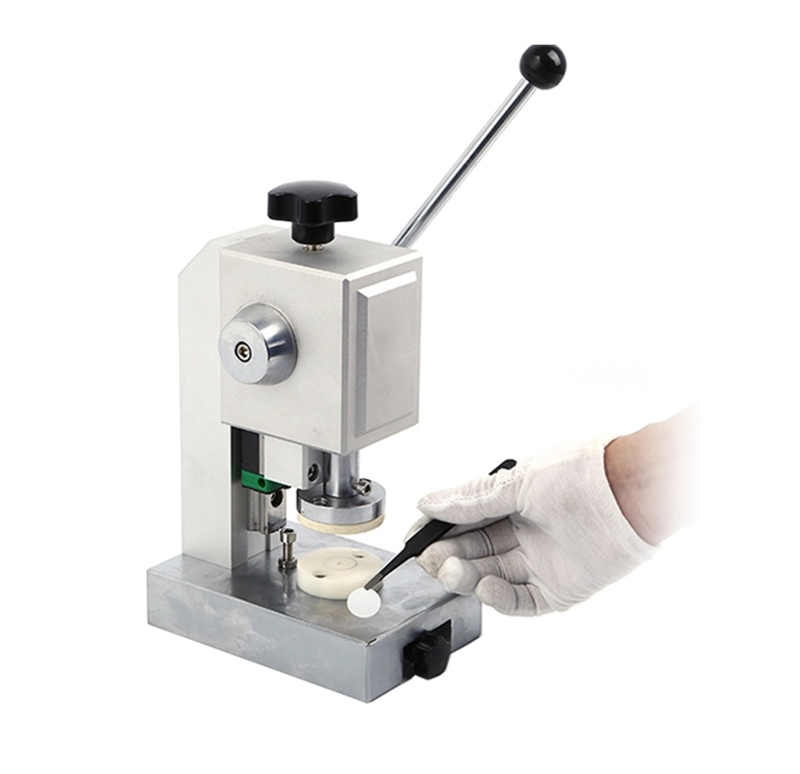

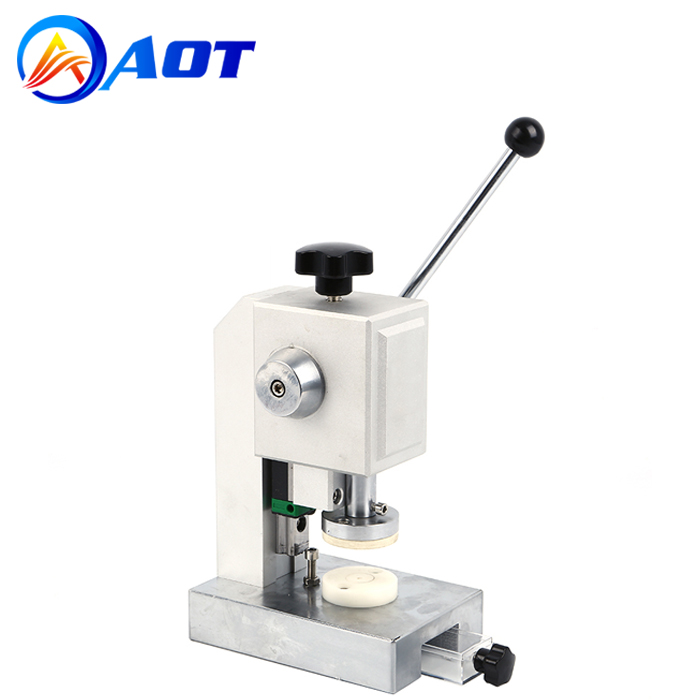

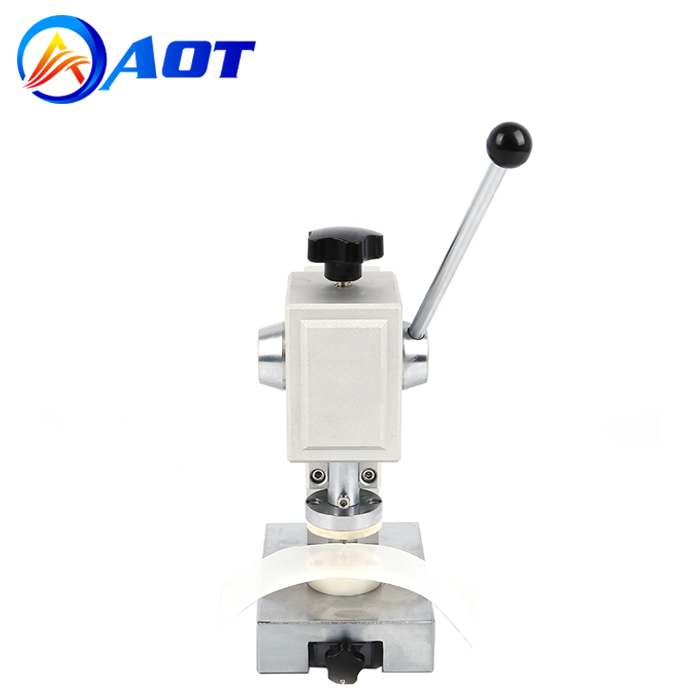

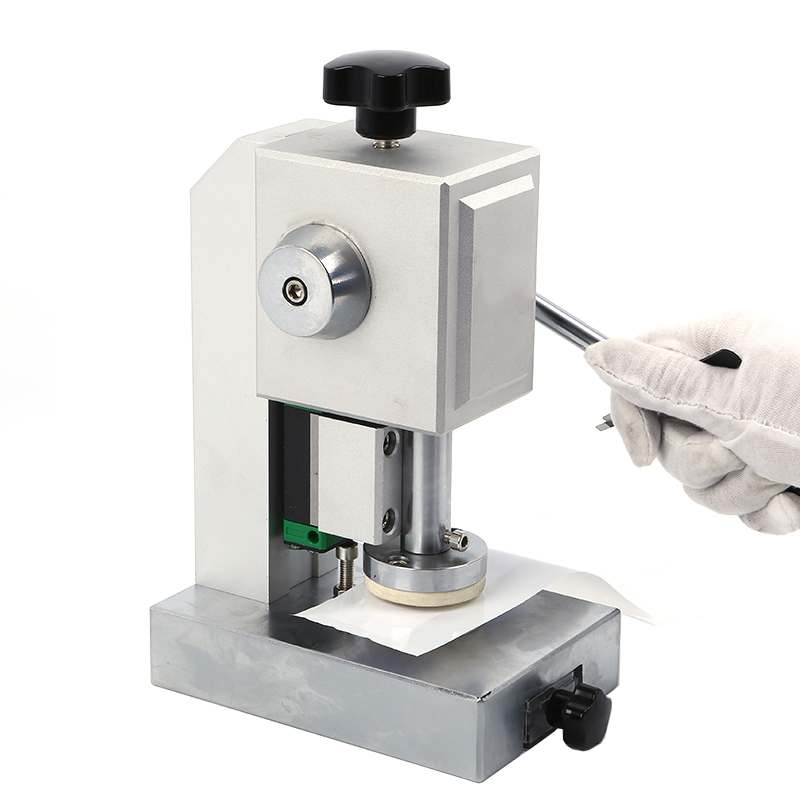

This machine is a compact disc cutter with quality sliding rail with ball bearing for precision cutting. It can be easily placed into a glove box via a transition chamber which the diameter larger than 230mm.

This tool is manually operated and is designed for cutting round discs from a thin metal sheet /foil (< 0.5 mm) or separator film (<30um). The finished discs can be used as electrode and separator discs for split test cell and coin cell, it is good for battery researchers as well as TEM sample preparation.

Features :

1. High accuracy ,no burrs,rags and dents .

2. It can cut various of battery materil with thinkness 0.005-0.5mm .

3. Small dimension, convenient operation, quick and flexible use into glovebox.

4. The machine body is made of anti-corrosion material that is anti-rust forever and has a nice appearance.

Machine model	Disc cutter for coin cell electrode and separatorpunching AOT-DC60
Operating	Manual/Hand press
Punching size	Standard configuration: 15mm diameter die for electrodepunching and19mm diameter die for separator cutting. (φ6-24mm customized)
Application Notes	For make CR2016, CR2025 and CR2032 coin cell batteries, we will need at least three cutting dies: A 15mm (for negative side case, which is 16.5mm in diameter) B 19mm (for positive side case, which is 20mm in diameter) C 20 mm (for separator to fully separate the electrodes) For CR2450 coin cell: 20mm cutting die can be used for cutting electrode discs and the 24mm cutting die for either electrode or separator disc.
Punching stroke	25mm
Punching thickness	0.005-0.5mm electrode and separator
Advantages	Easy operation Compact size and light weight Can both cut electrode and separator by changing the cutting die
Dimension	110150235mm
Weight	About 7kg
Warranty	One Year
