High Throughput Coin Cell Assembling System For Lab Battery Research

High Throughput Coin Cell Assembling System For Lab Battery Research

Product Name: Coin Cell Assembling System
Working voltage:AC 220V, 50/60Hz
Origin: China
Warranty: 1 Year
Product description: AOT-MSK-HTBA is an automatic coin cell assembly system for high-throughput battery materials research, which can handle 8 kinds of battery positive and negative electrodes in this glove box system Th
INQUIRY

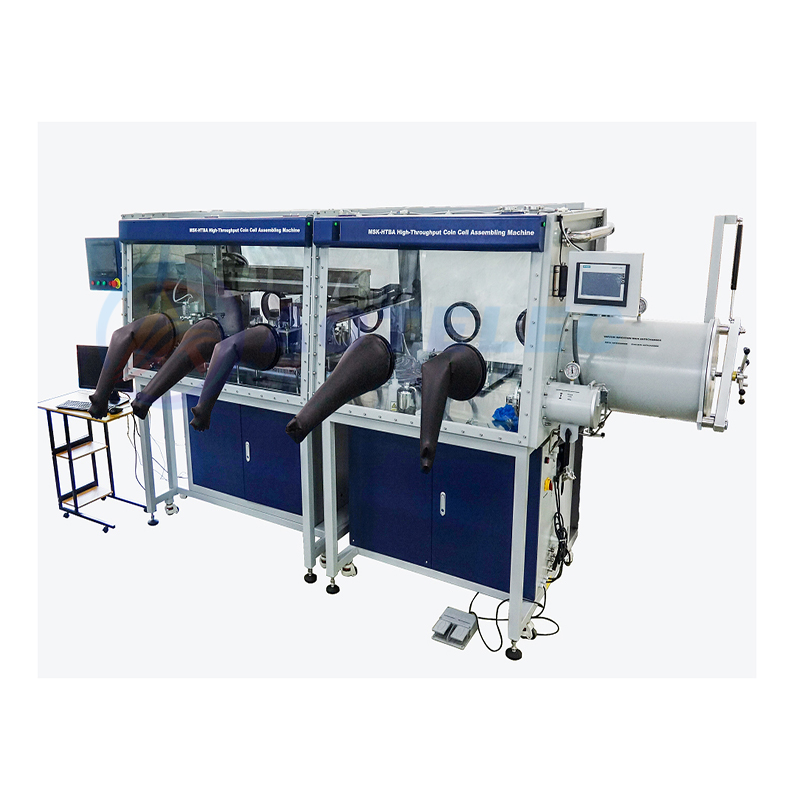

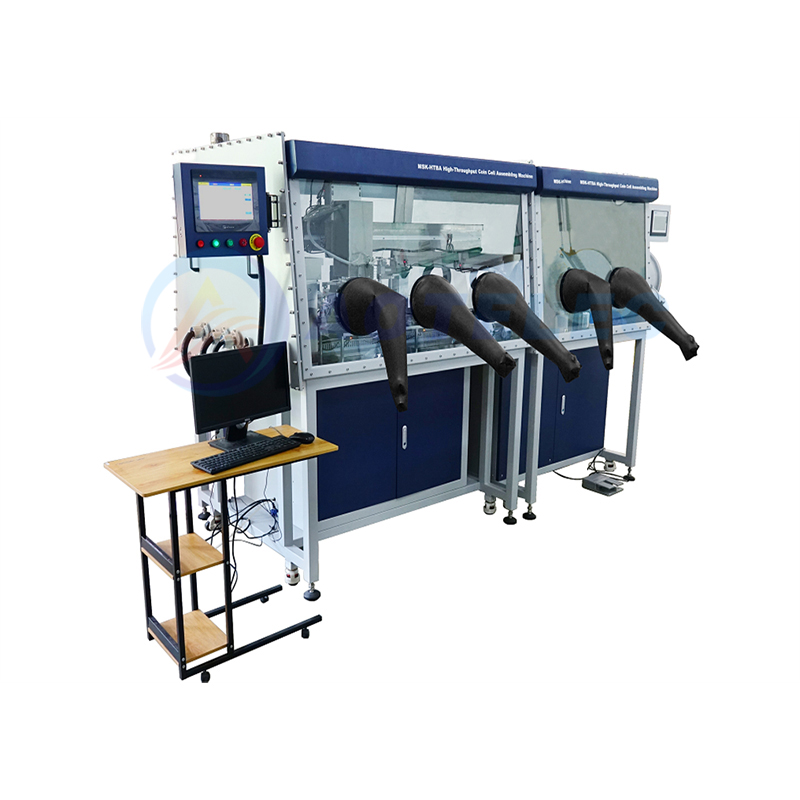

AOT-MSK-HTBA is an automatic coin cell assembly system for high-throughput battery materials research, which can handle 8 kinds of battery positive and negative electrodes in this glove box system

There are also 2 electrolytes and about 64 cells can be assembled per hour.

Specification：

Product Name	Coin Cell Assembling System
Voltage	AC 220V +/- 10%, 50 / 60 Hz, Three Phases
Power	Max.2 kW

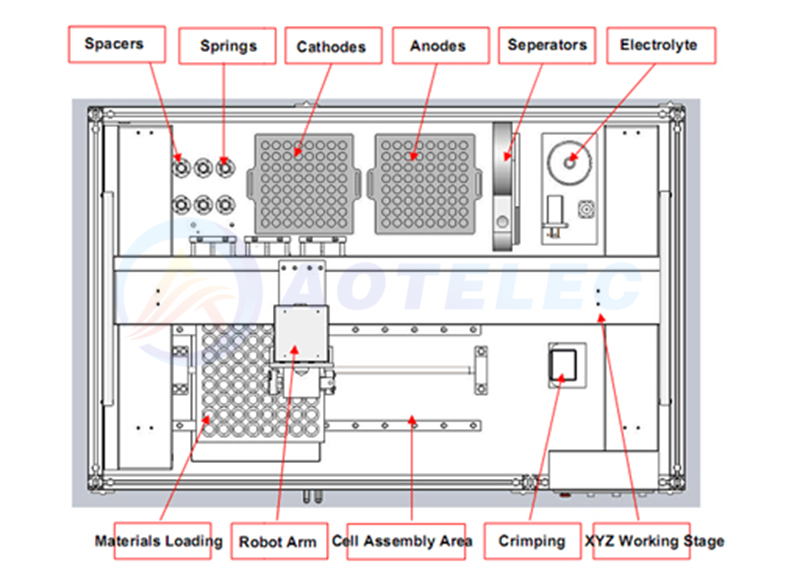

Flow Chart	①Top Case Loading ②lithium chip / Anode Loading ③Separator Loading ④Cathode Loading ⑤Spacers / Springs ⑥Electrolyte Injection ⑦Bottom Case Loading ⑧Pressure Control Electric Crimping
Requirements	Temperature: 25ºC +/- 3%, Humility: 30 - 90 RH% If without the glovebox, it requires the dry room with dewpoint below - 40ºC 0.5 - 0.8 MPa dry compressive gas
battery materials Requirements	Cathode:Dia 13 mm ,T 0.1 mm Anode: Dia 14 mm, T0.09 mm Separator: Dia16.5 mm , T0.1 mm Spring: Dia15.4 mm Spacer:Dia 15.5 mm,T 0.5 mm Bottom case: Dia19.4 mm, T2.84 mm Top case: Dia16.5 mm, T2.6 mm
Coin Cell Type	CR 2032
Production Yield	1 - 2 PPM
Channels	8 x 8 layout 64 channels
Assembly Deviation	+/- 0.5 mm
Electrolyte Injection Accuracy	0.5 uL

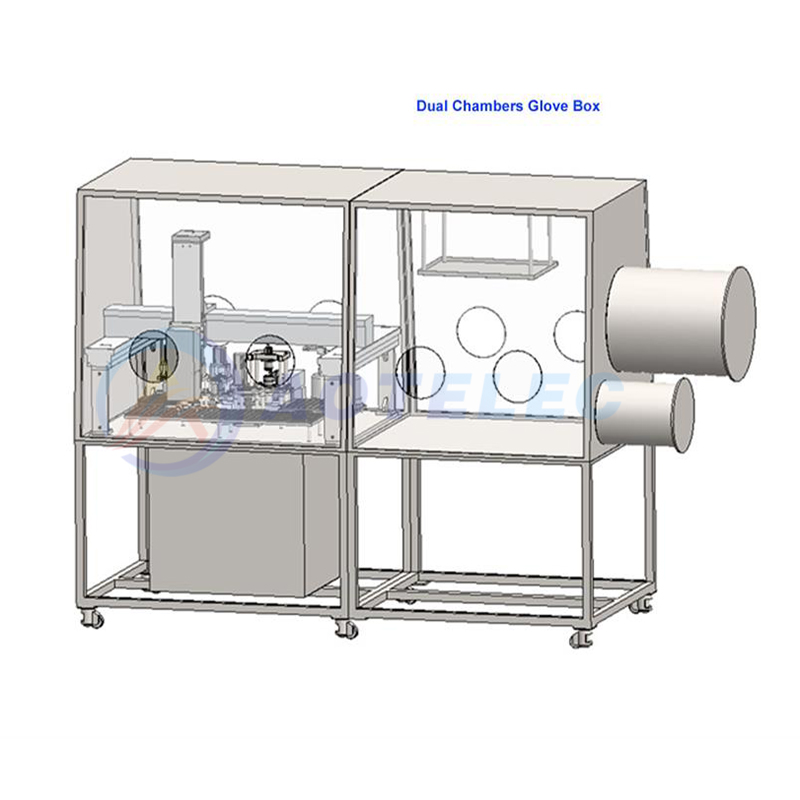

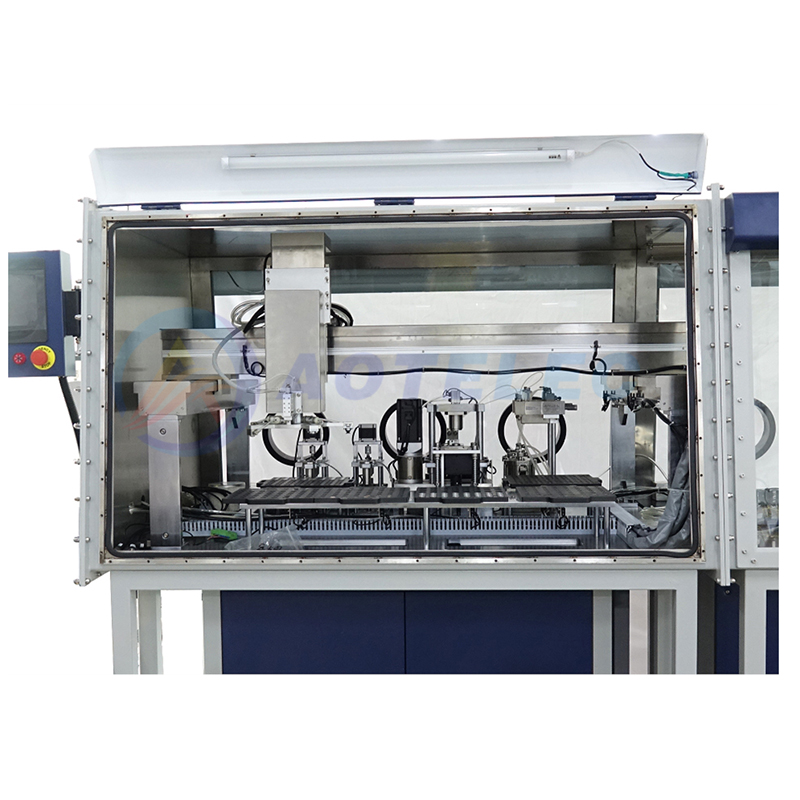

Structure	XYZ automatic working station, X 1100 mm * Y 800 mm * Z 200 mm Dual chambers glove box, four working positions Sample materials loading Electric crimping, pressure 50 - 80 kg/cm^2 PLC digital control
Dimensions	Main glove box chamber size: L 1400 mm x W 1200 mm x H 900 mm Dimensions of the system: L 3200 mm x W 1200 mm x H 900mm
Warranty	One year
