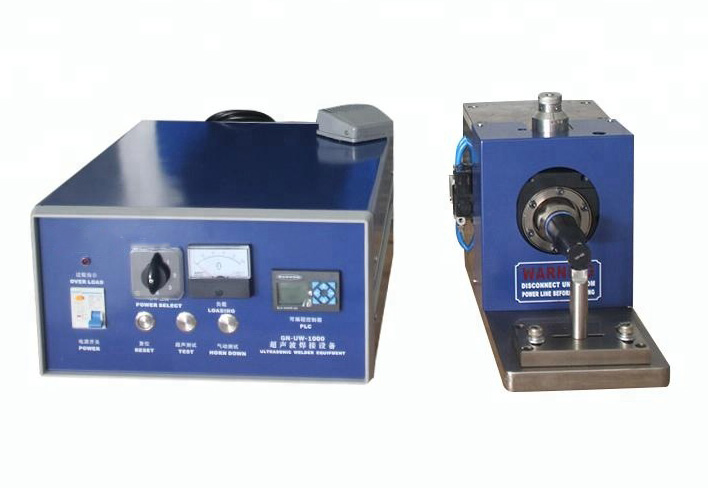

Battery Ultrasonic Spot Welding Machine for Ni or Al Tabs

Model: AOT-USW-1500W
Origin: China
Welding Ability: 5-10 layers
Application: Battery Electrode and Tab Welding
Product description: Battery Ultrasonic Spot Welding Machine for Ni or Al Tabs
INQUIRY

International advanced microprocessor integrated control circuit, frequency automatic tracking technology, and stable circuit performance.

Anti-interference code, friendly interface, easy to operate:the following parameters can be set: preloading time, welding time, power, pressure holding time.

High precision X guideway mechanical structure,stable mechanical properties.

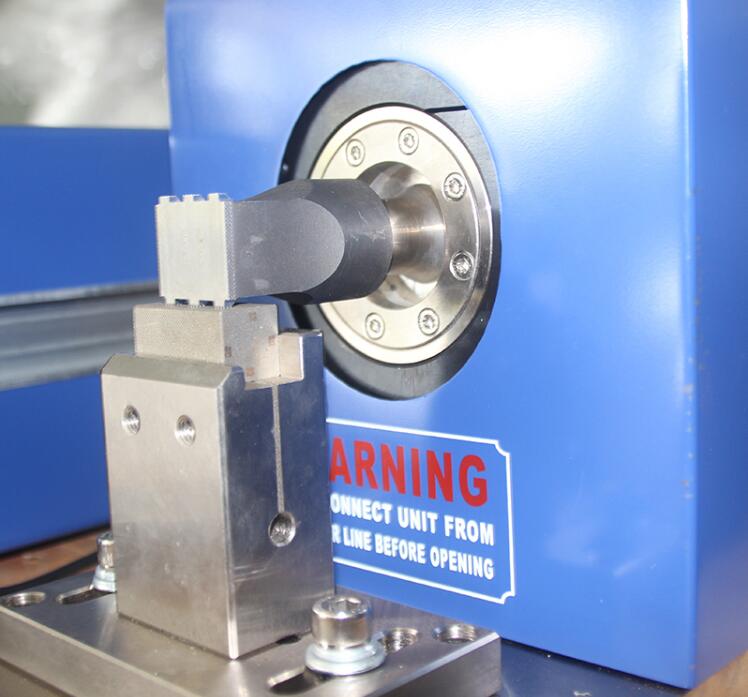

The welding head is made of imported alloy steel, high hardness, the pattern with high precision grinding, long service life.

Superior welding effect solid welding, no virtual weld, no vibration powder, do not burn the diaphragm, not hot insulation, not crack the lug pole piece.

Technical parameter

Model		AOT-USW-1500W
Power		1500W
Frequency		24KHZ
Power Supply Voltage		220V/ 50Hz
Gas supply source		≥0.5MPa
Control Method		CPU Control
Max Stroke		15 mm
WeldingTime		0.05～2S
MajorComponent		1.Ceramic chips,importfrom Germany 2.Aluminium barfrom Alcoa 3.Single chip fromPhilips 4.Welding head Titanium alloy and type 6542
Welding Function	0.1mm aluminium strip+1～3mm aluminum cover board,solder joint 33mm,34mm single point welding or 33mm double point welding 8mm(length) Double-Point Welding of Al-Ni Composite Belt with Aluminum cover Plate or bottom of Aluminum Shell; Solder joint 33mm two group 10mm long,34mm two groups of 14mm long, each group of 6 points, 9 points and so on. Cathode tab 5-10 layers Aluminum Foil(20um) with pure aluminumtab (0.1mm) welding : 34 3 points 25mm long or 325mm Anode electrode 5-10 layers copper foil (10um) with pure nickel tab (0.1mm) welding : 34 3 points 25mm long or 3*25mm
