Heated Vacuum Bed and Doctor Blade Battery Casting Coater Machine with Sheet Pattern

Heated Vacuum Bed and Doctor Blade Battery Casting Coater Machine with Sheet Pattern

product name：Battery Casting Coater Machine
AOT-MSK-AFA-H200A
Brand Name. AOT
Product Orgin:China

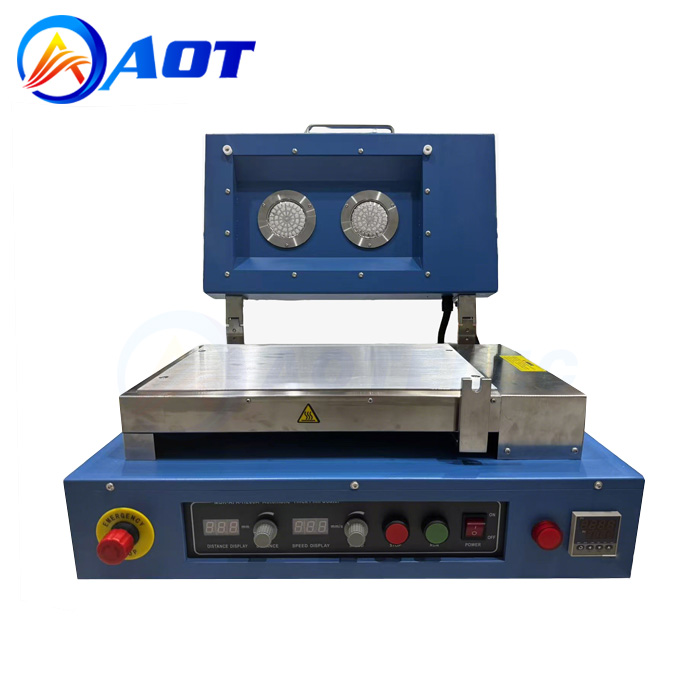

Product description: AOT-MSK-AFA-H200A Is an standard Compact Tape Casting Coater with a vacuum chuck hotplate up to 250ºC and an active carbon filter on the top cover to protect the lab environment.
INQUIRY

MSK-AFA-H200A Is an standard Compact Tape Casting Coater with a vacuum chuck hotplate up to 250ºC and an active carbon filter on the top cover to protect the lab environment.

SPECIFICATIONS:

Power	· 208 - 240V AC 50/60Hz · 1500W
Heatable Vacuum Platform	· Vacuum chuck made of aluminum alloy with the micro-size holes · Vacuum chuck Area: 400mm (L) x 250mm (W) (16"L x 10"W ) · Heating elements are installed inside the chuck which can reach 250ºC Max. · Precision digital temperature controller with +/- 1ºC accuracy
Film Applicator	· Built-in pushing bar for using micrometer adjustable applicator · 180 mm width Applicator with micrometer adjustable head is included for immediate use (Click picture 1 to see details) · 24VDC motor driving mechanism, which can be used under Ar gas glovebox.
Coating Area	· Standard Package: 350mm(L) x 180mm(W) due to the width and occupied area of the 180 mm applicator. · Maximum: 350mm(L) x 230mm(W) Reduced width to avoid slurry spilling off the vacuum bed. · Length 10 - 350 mm adjustable by using Adjustable Position Switch
Accuracy of Film thickness	· +/- 0.01mm

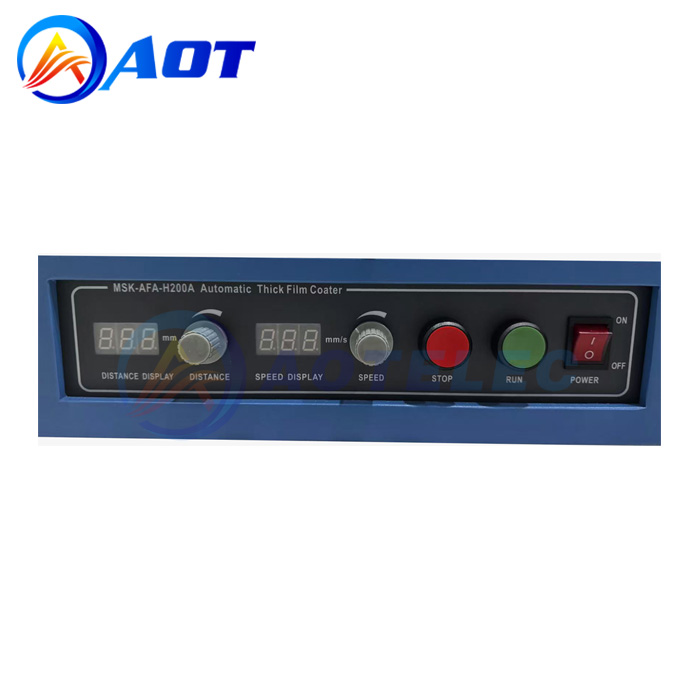

Traverse Speed & Distance	· Travel Speed: 0 - 80mm/sec variable · Travel distance: 0 - 400 mm adjustable

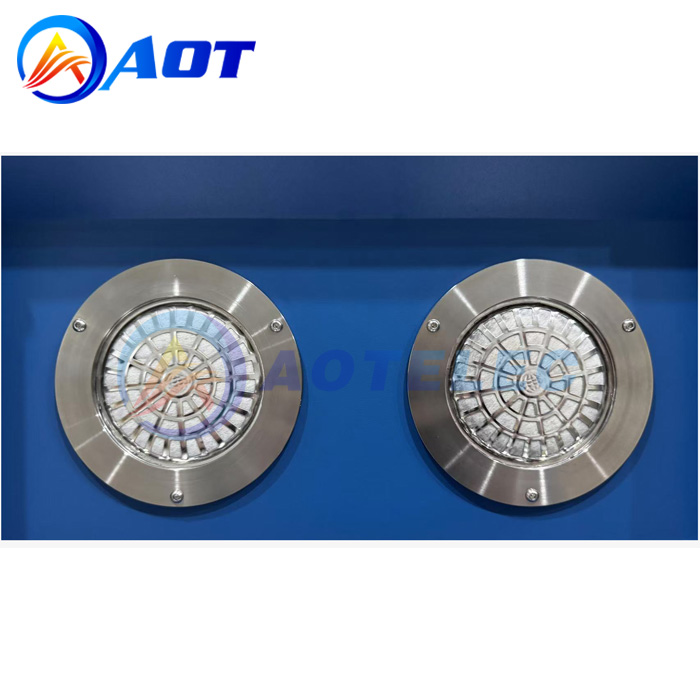

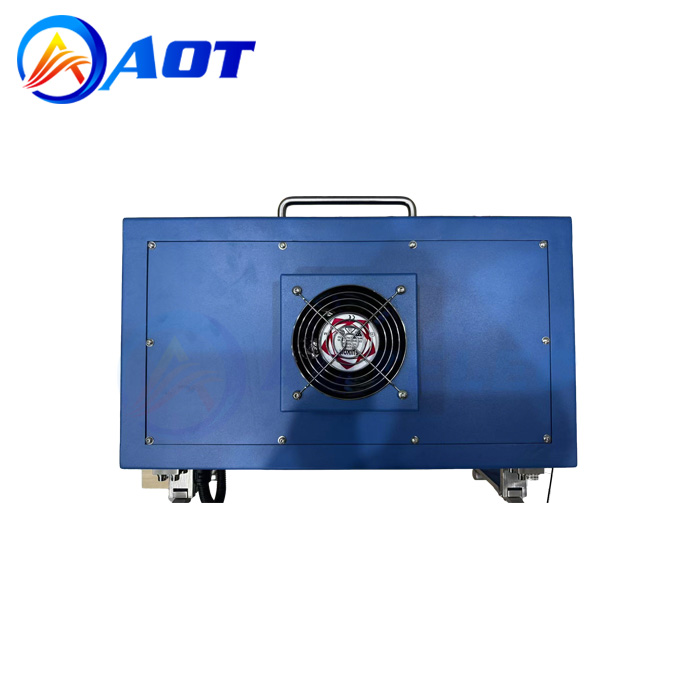

Top Cover and Filter	· Active carbon filter and venting fan are installed on the top cover · The filter will remove organic vapor to make the lab environment safe & clean
Net weight	40kg

Company Profile

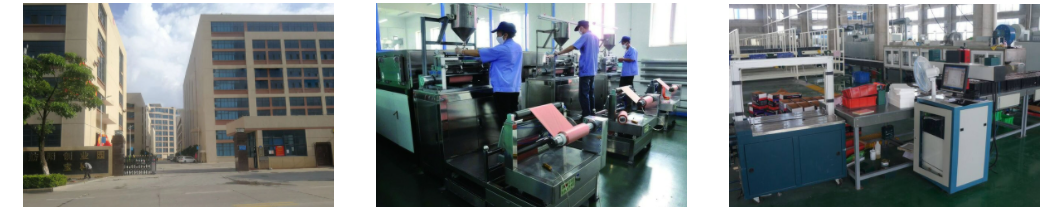

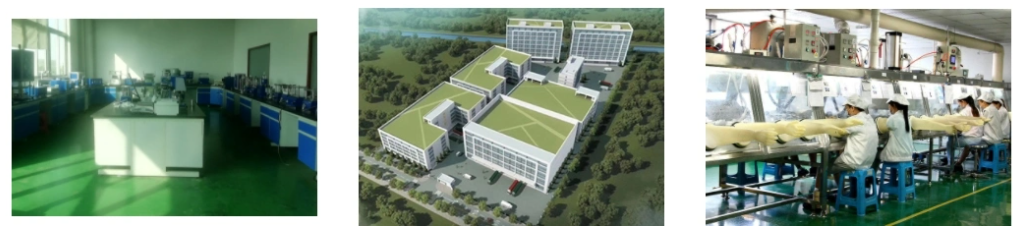

Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
