300W Ultrasonic Processor For Li-ion Battery Slurry

Product Name;Ultrasonic Processor
Model:AOT-USP-1
Voltage：110VAC, 50-60Hz
Origin:China

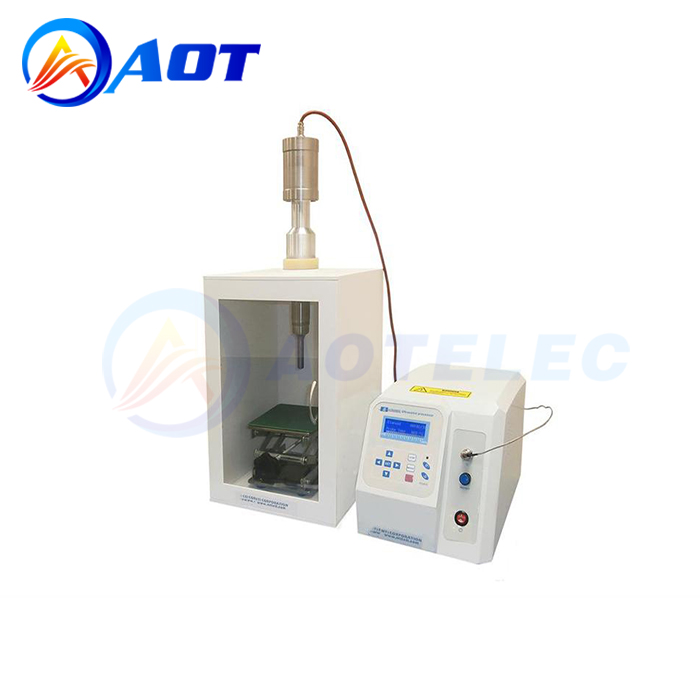

Product description: It is a desktop 300W ultrasonic processor with soundproof room and stainless steel lifting platform.
INQUIRY

AOT-USP-1 is mainly used to disperse a small amount of nano-powder in liquid, and homogenize the liquid phase by co-precipitation. It is a good tool for preparing sol-gel lithium-ion battery slurry and high-quality thin film.

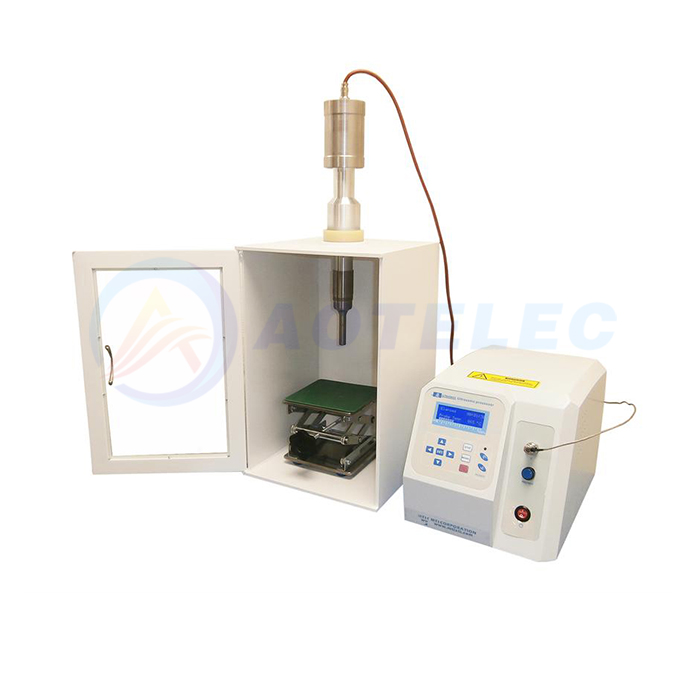

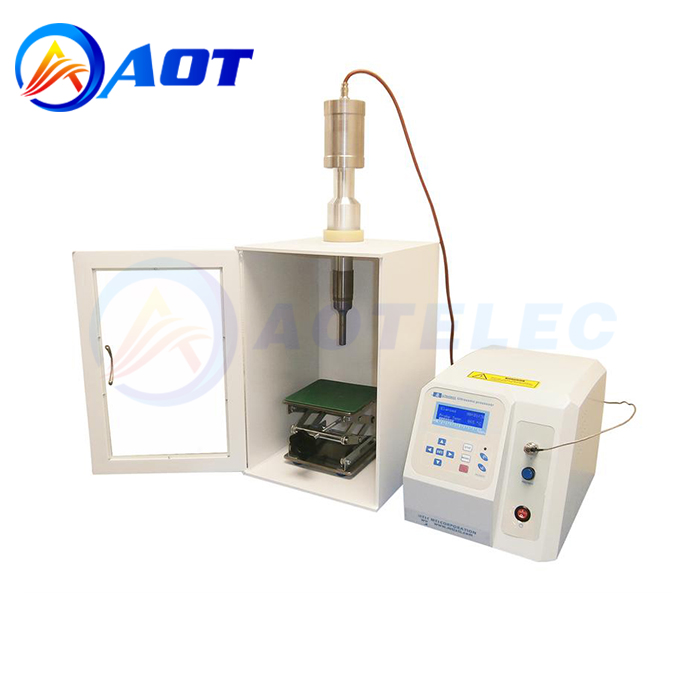

It is a desktop 300W ultrasonic processor with soundproof room and stainless steel lifting platform.

Specification：

Product name	300W Ultrasonic Processor
Voltage	110VAC, 50-60Hz Single Phase
Output Power	Max.300 W , 20 kHz
Dipping depth of ultrasonic processor rod	Max.30mm
Processor Head	Material:Ceramic Alumina Diameter:8 mm Weight: 400g Liquid handling: 5mL - 200mL
Digital Timer is displayed	LC panel (adjustable from 1 second to 99 hours)

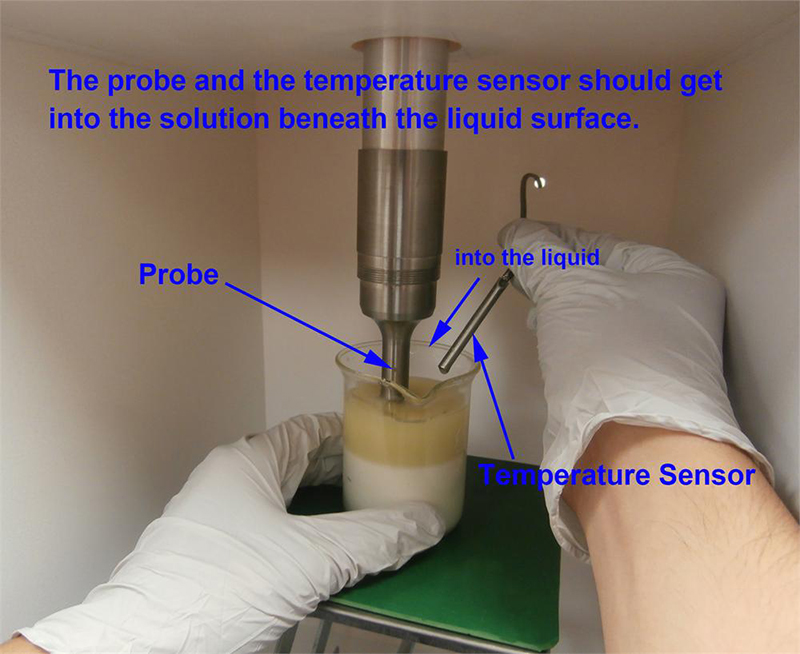

Chamber	One sound-proof box is included to put the ultrasonic processor into the chamber One stainless steel lift platform is included to support the liquid container at a suitable height The temperature sensor is installed inside the chamber to touch with the container to protect the sample from over-heated
Product Size	Chamber: L270mm xW240mm x H400mm Control Box: L365mmxW235mm x H215mm Ultrasonic Head: 425mm(L)
Weight	32kg
