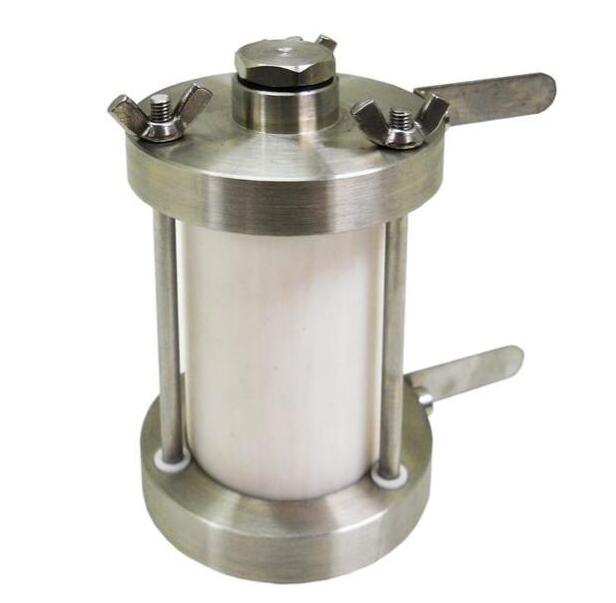

Split Type Swagelok Cell for 26650 Cylindrical Cell

Model: AOT-STC-26650
Origin: China
Applicaton: Cylindrical Battery Reseach
Material: PTFE
Product description: Split Type Swagelok Cell for 26650 Cylindrical Cell
INQUIRY

26650 Split Type Testing Cell is designed for testing 26650 batteries. Its detachable design allows you to test the cycling behavior as well as structural changes of electrode easily and quickly.

Specifications
Dimensions (Dia x Height)	ID of PTFE Body: 26mm Height of PTFE Body: 65mm
Material	Caps: Full Stainless steel end caps Body: Electrolyte corrosive-proof PTFE body can sustain with temperature up to 250ºC O-ring: Sealed by electrolyte corrosive-proof PTFE O-rings

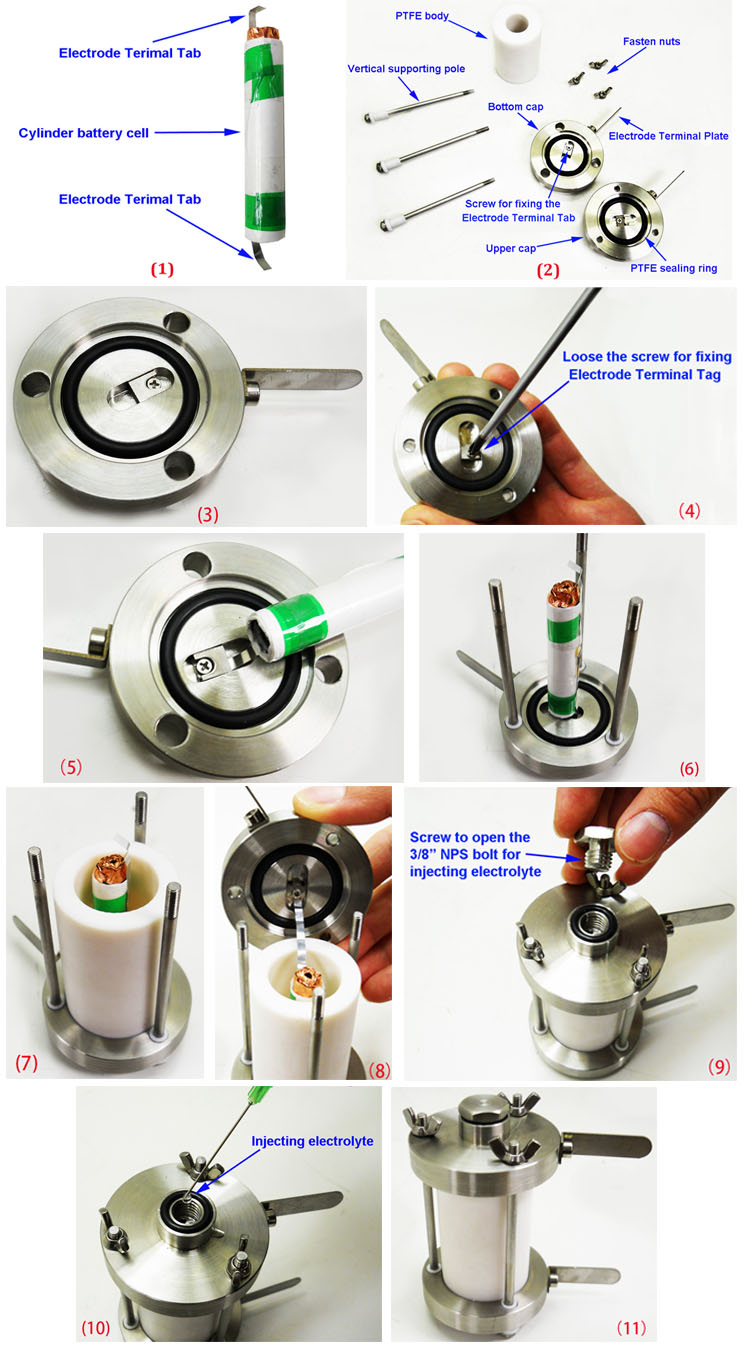

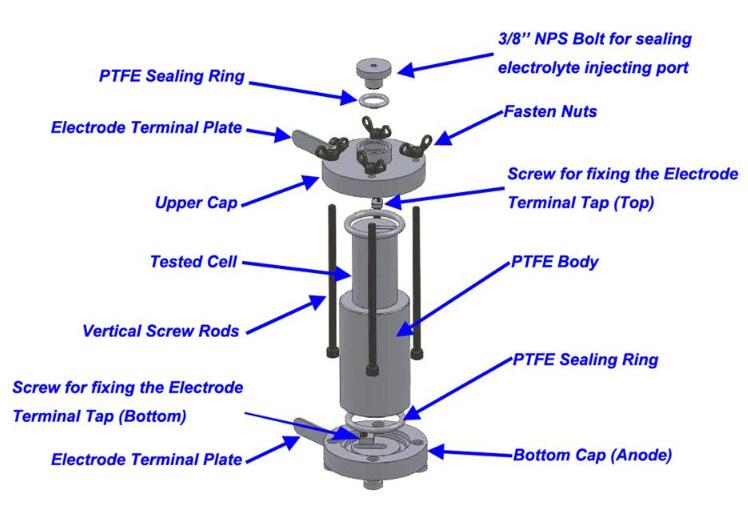

Design	Easy assembling by only four cap mounting screws Easy to separate after test for cleaning Space saving, compact design allows you put it into the glove box Click the image left for the detailed illustration of this cell
