Lithium Battery Pack Assembly Line

Name: Battery Pack Assembly Line 1
Type: Manual and Semi-automatic
Origin: China
Warranty: 2 Years
Product description: AOT Battery Technology has independently developed a semi-automatic assembly line system for lithium battery PACK based on the characteristics of the battery module group.
INQUIRY

New energy lithium battery PACK assembly line system

With the widespread application of batteries such as 18650 in the field of new energy, semi-automatic and automated equipment has become one of the core competitiveness of battery companies.

As one of the representatives of China's lithium battery intelligent equipment enterprises, AOT Battery Technology has independently developed a semi-automatic assembly line system for lithium battery PACK based on the characteristics of the battery module group.

The system integrates a lithium battery sticker system, a sorting and inspection system, an automatic battery pack assembly system, a CCD visual recognition system and an automatic spot welding system. It adopts automatic feeding and automatic sorting mechanism to ensure the consistency of the battery used in the product. At the same time, it can automatically scan and obtain cell barcodes, and classify and record barcodes and PACK barcodes.

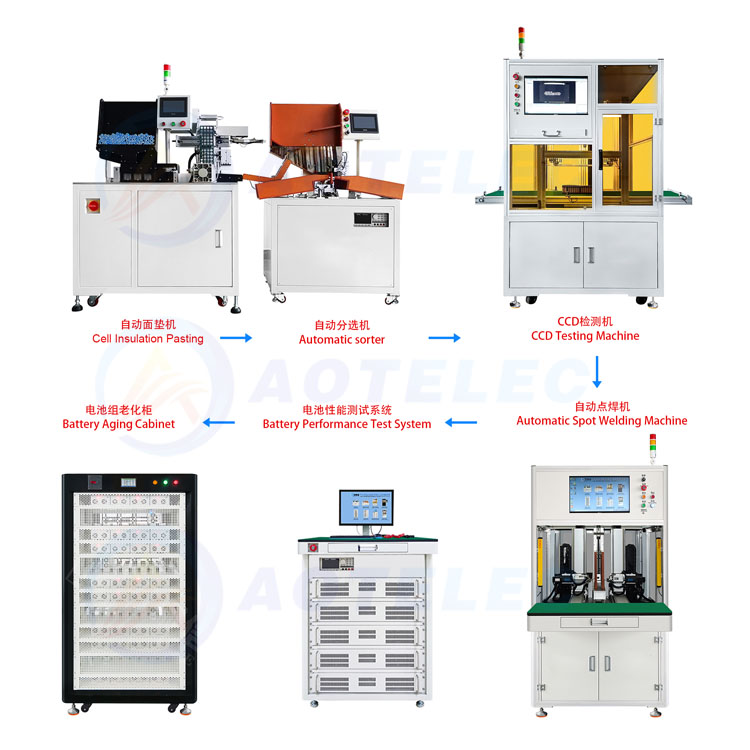

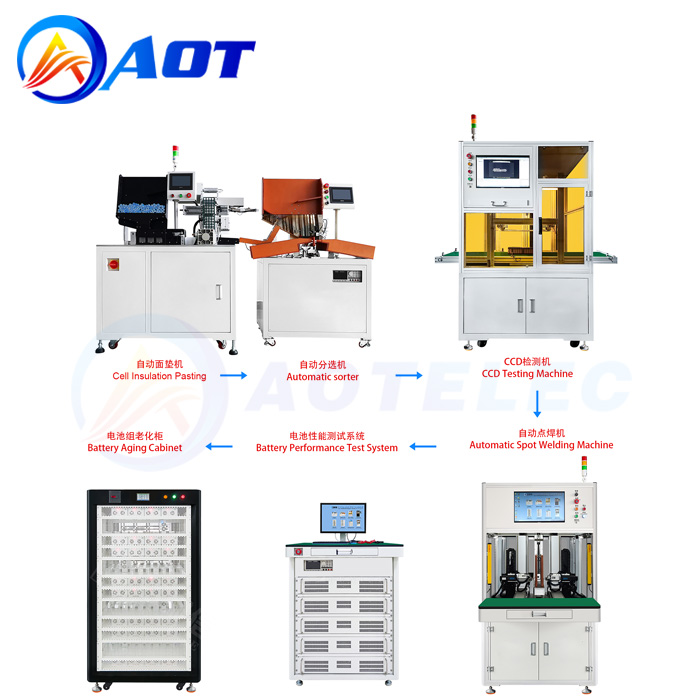

Equipment List for LithiumBattery PACKAssemblyLine
1.	Aumatic sticking machine	Cell insulation pasting(barley paper)
2.	Automatic sorting machine	Sorting the cells by testing internal resistance and voltage
3.	CCD testing machine	Check whether the positive(+) and negative(-) of batteries are misplaced
4.	Automatic spot welding machine	Weld the cells together according to design, single side spot welding and double side welding is optional
5.	Battery performance test system	Quick checking the performance of semi-finished battery pack by charging, discharging, AC/DC resistance, testing different pressure/internal resistance etc.
6.	Battery aging cabinet	Remove early failure and unqualified component products, so that product reliability is relatively improved, and product quality is guaranteed

AOT Battery supply a complete pack line equipment, include project design, site layout, staffing andbudget, we provide high-end production line solutions based on semi-automatic and automated equipment, welcome to get more information by sending your interests to our related person.
