  • Lithium Titanate Oxide LTO powder for Li-ion Battery Anode Raw Material
Lithium Titanate Oxide LTO powder for Li-ion Battery Anode Raw Material

Lithium Titanate Oxide LTO powder for Li-ion Battery Anode Raw Material

  • Name: Lithium Titanate Oxide
  • Color: White / Black
  • Formula: Li4Ti5O12
  • Application: Battery Anode Material
  • Product description: Lithium Titanate Oxide LTO powder for Li-ion Battery Anode Raw Material
  • INQUIRY

Battery Anode Material for Lithium Titanate Battery LTO Powder



SPECIFICATION



Lithium titanate

LTO/ Lithium titanate/Lithium Titanium Oxide/ LiTiO / Li4Ti5O12(Carbon coating is black powder, no carbon coating is white powder). At present, it is mainly used in energy storage battery, EV battery, special power supply, super capacitor and so on.

1. Advantage: High safety, long service life, high power.

2. Shortcoming: Low energy density.

3. Application: Anode materials for lithium ion batteries.



Model

 LTO-White

Not Have Carbon - coated

 LTO-Black

Carbon - coated lithium titanate

Black powder

  Item

 Unit

 Test value

 Test way

LTO-W

LTO-B

  D10

  um

0.2~0.6

0.2~0.6

Malvern Instruments Ltd

   MASTERSIZER2000

  D50

  um

0.7~1.5

0.8~1.6

Malvern Instruments Ltd

   MASTERSIZER2000

  D90

  um

≤10

≤10

Malvern Instruments Ltd

   MASTERSIZER2000

 Purity

  %

99

99



  TAP density

 g/c㎡

≥0.9

≥1.0

Quantachrome Autotap DAT-3

  BET

  ㎡/g

≤16

≤6.0

Quantachrome NOVA 1000e

 First capacity

 mAh/g

≥150

≥150

Battery testing

 First efficiency

  %

≥93

≥92

Battery testing

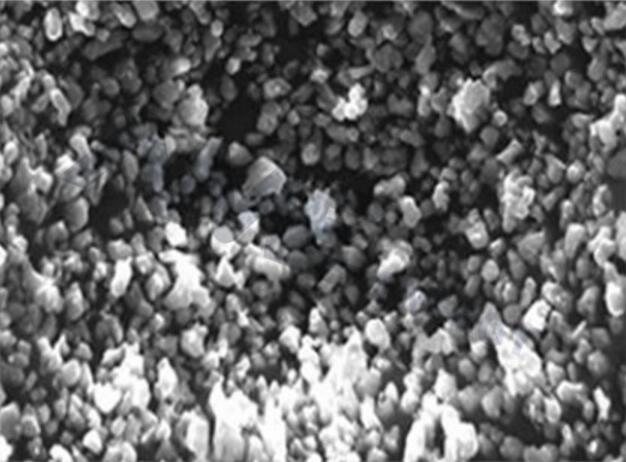

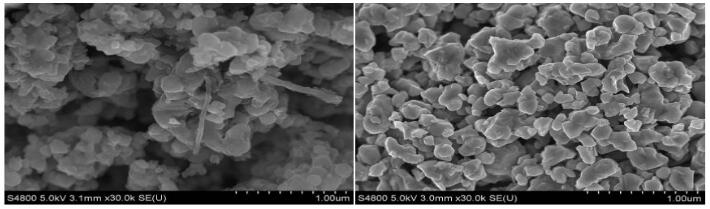

SEM: White/Black

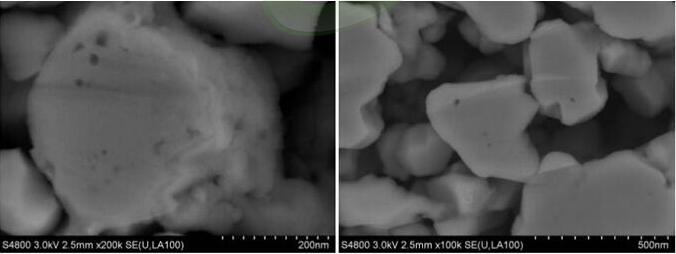

Section SEM: White/Black

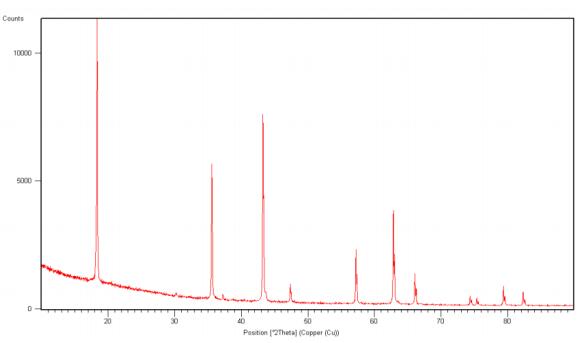

XRD
