NMC 811 is a black powder for lithium ion battery cathode raw material. Full chemical format is LiNiMnCoO2, NMC 811 means that Nickel:Manganese:Cobalt=1:1:1.
Thelithiumnickel cobalt manganese battery is safer than lithium cobalt oxide battery. The finished lithium battery mainly used forcompact electrictool or equipment. High nickel type NMC material has larger capacity of battery.
Parameters:
Test item | Unit | Standard | Typical | |
Particle size | D10 | um | >5.0 | 5.2 |
D50 | 10-12 | 11.75 | ||
D90 | <25 | 23.46 | ||
Dmax | <40 | 37.09 | ||
SSA | m2/g | <0.4 | 0.33 | |
Tap density | g/cm3 | >2.25 | 2.3 | |
Max Compact Density | g/cm3 | 3.50±0.20 | 3.5 | |
PH Value |
| <12.10 | 12.08 | |
Moisture | Wt% | <0.04 | 0.02 | |
Li | Wt% | 7.40±0.20 | 7.4 | |
Ni | Wt% | 47.50±1.50 | 47.67 | |
Co | Wt% | 6.60±0.60 | 6.62 | |
Mn | Wt% | 5.50±0.60 | 5.57 | |
Li+ | Wt% | <0.28 | 0.26 | |
Fe | ppm | <40 | 16 | |
Cu | ppm | <40 | 8 | |
Na | ppm | <200 | 130 | |
Ca | ppm | <50 | 20 | |
Mg | ppm | <100 | 55 | |
Magnetic impurity | ppb | <50 | 15 | |
Halfcelldischarge capacity | mAh/g | >190 | 195 | |
Halfcelldischarge efficiency | % | >85 | 87 |

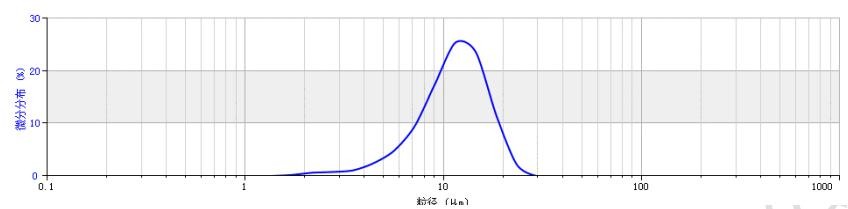

Particle size Distribution
SEM photo

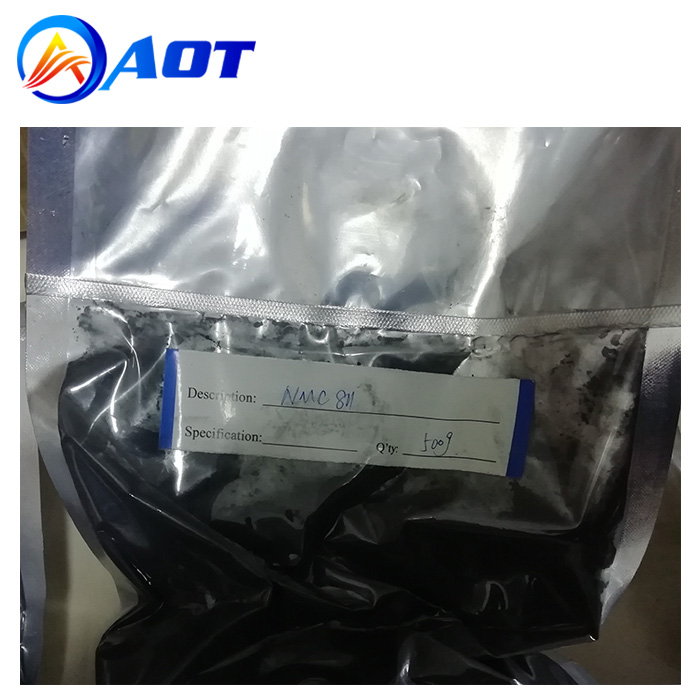

Appearance:no impurity color,no-caking

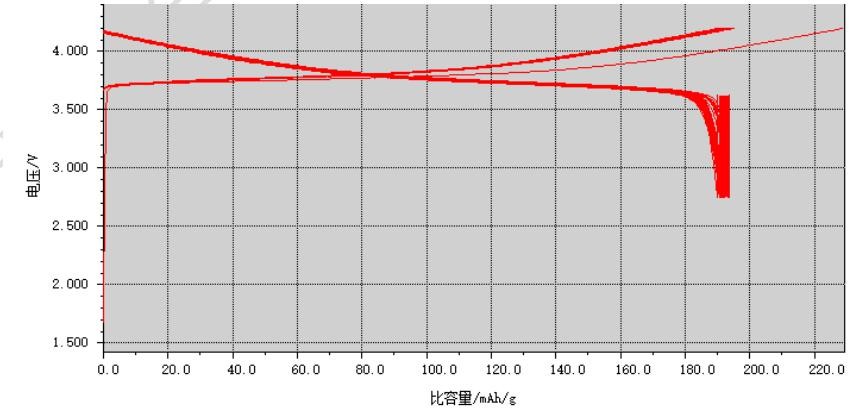

Half cell Charge/discharge Curve
Exhibition
Cerificate
