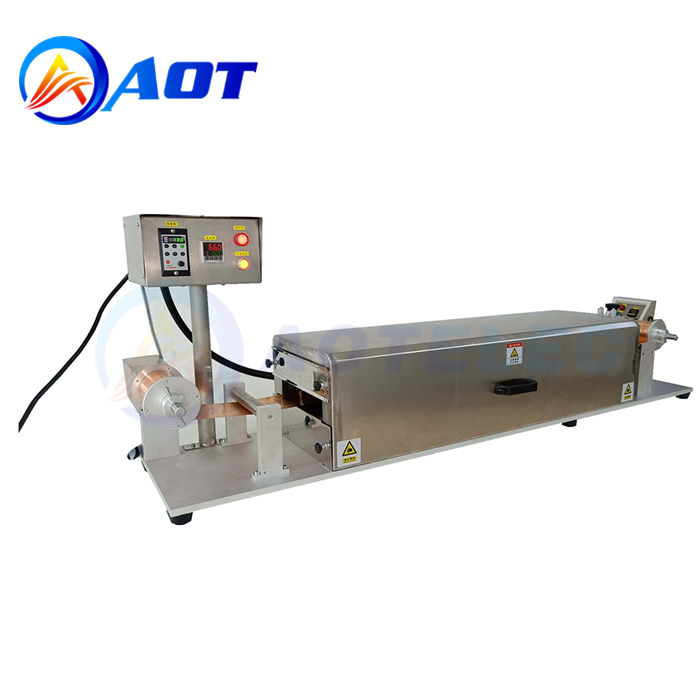

Lab Lithium ion Battery Making Coater Coating Machine For 18650 Cylindrical Battery

Product Name : Coater Coating Machine
Power supply:220VAC, 50/60Hz,
Power :4KW
Origin:China
Product description: AOT-TBJ-180C is a small roll-to-roll coater for laboratory research, because it can coat continuously, it is suitable for pilot scale battery research work in colleges, universities and factories.
INQUIRY

AOT-TBJ-180C is a small roll-to-roll coater for laboratory research, because it can coat continuously, it is suitable for pilot scale battery research work in colleges, universities and factories.

Product Name	Desktop Roll to Roll Continuous Coating Machine
Type	AOT-TBJ-180C
Voltage	AC 220V/110V, 50HZ/60HZ
Power	3KW
Suitable material	Aluminum foil thickness: 0.01-0.03mm Copper foil thickness : 0.006-0.020mm
Max electrode width	50-150mm
Coating speed	0-2m/min, adjustable
Max baking temperature	100℃ ,PID control mode
Coating thickness	0.01mm-2mm
Coating thickness accuracy	0.01mm

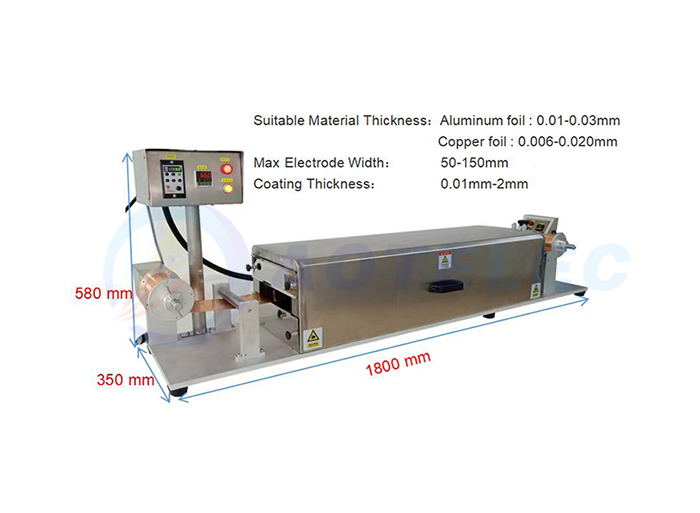

Dimension	1800* 350 * 580 mm(LWH)
Weight	128 kg
Oven length	1100mm
