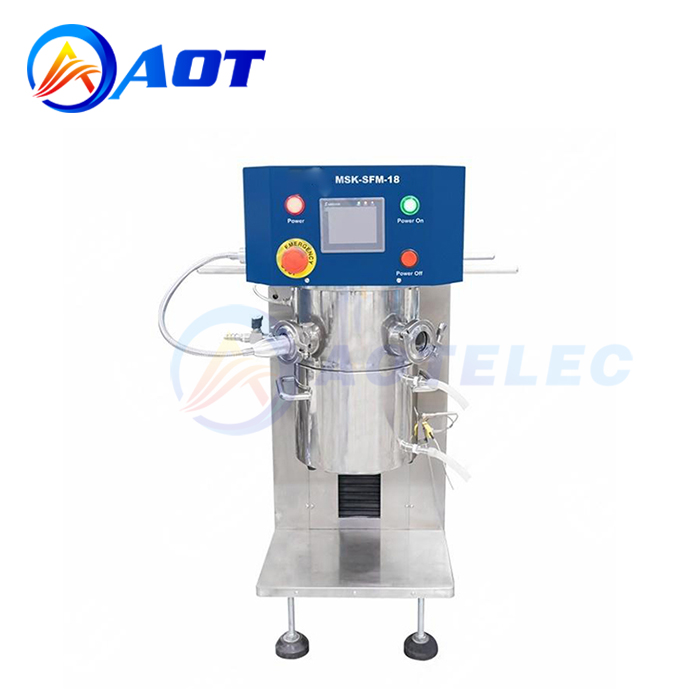

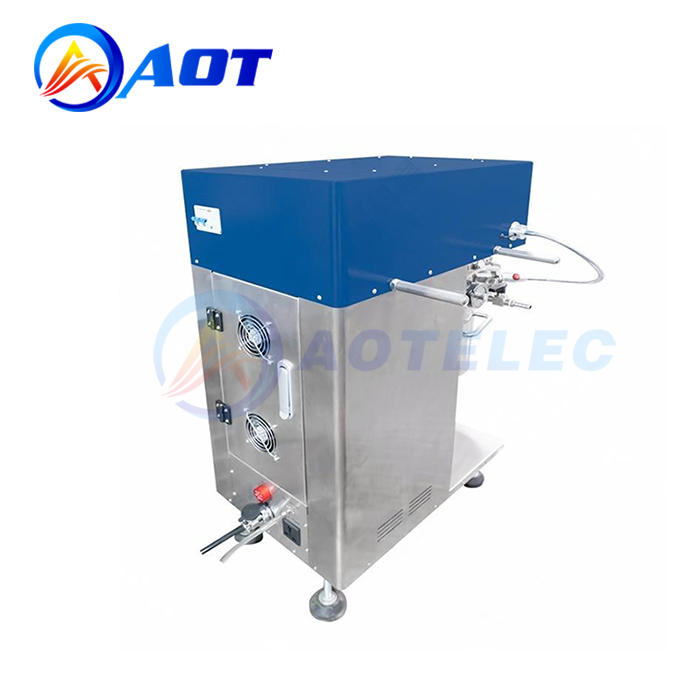

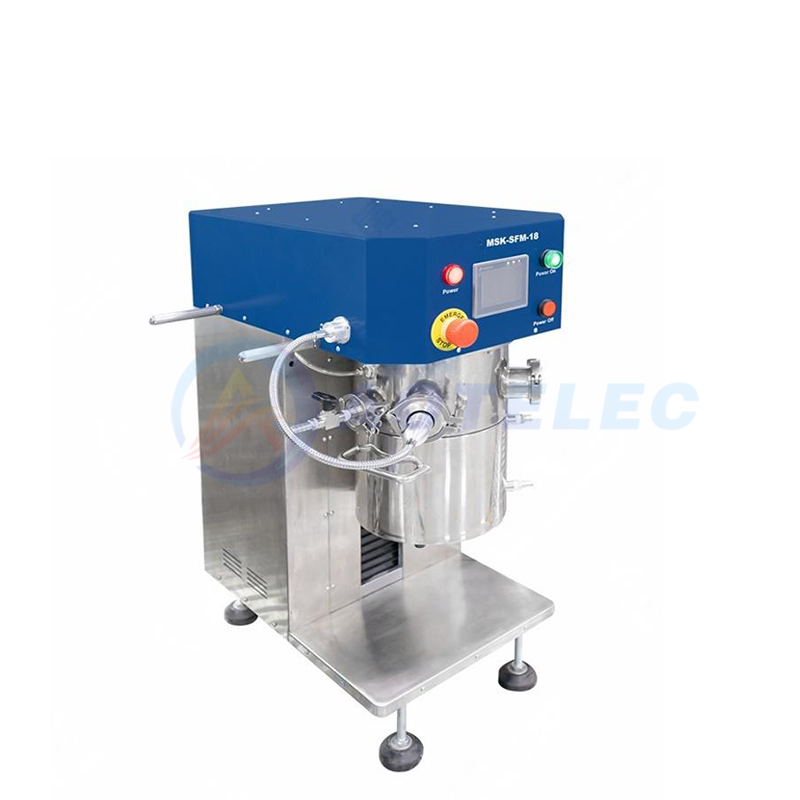

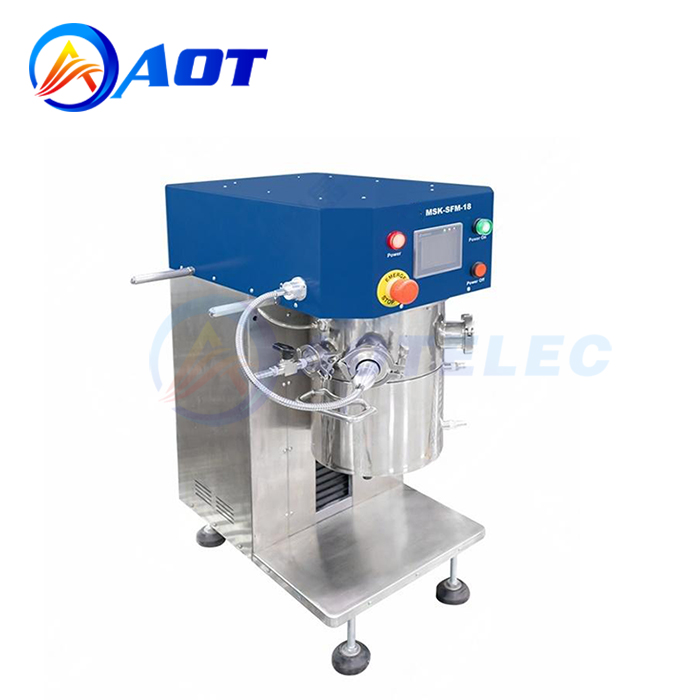

AOT-SFM-18 dual planetary four blade vacuum mixer is an efficient mixing equipment that integrates vacuum mixing and dispersion. It can be applied to various solvent and powder mixing processes, such as the batching process of lithium-ion batteries, tapes, solar energy, chemical and other raw materials.
The device has a beautiful appearance, compact size, good mixing uniformity, and is convenient and easy to use
Technical Parameter:
Power Supply | single-phase AC220V ± 10% (customizable AC110V), frequency 50Hz/60Hz, Power 1600W (including vacuum pump power 2350W) |
Vacuum | Vacuum degree Max -0.095MPa (pressure drop less than 5KPa within 8 hours), customer requested For centralized vacuum source or optional vacuum pump |
Usage Environment | Suggested ambient temperature is 25 ± 3 ° C, humidity is 30~90RH, and there is no vibration or electromagnetic interference |

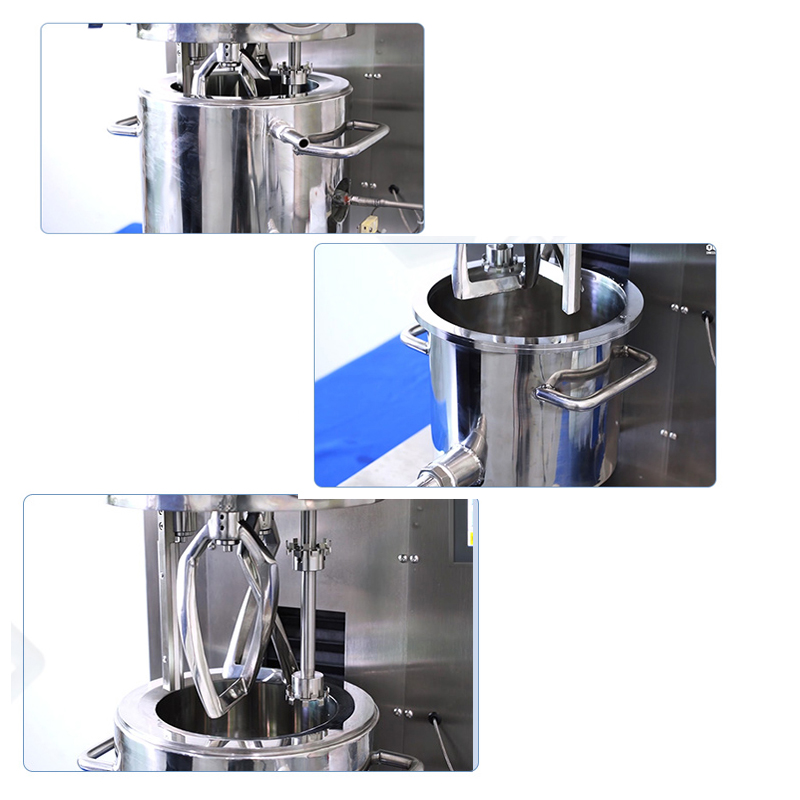

Mixing Paddles | two Fried Dough Twists frame mixing paddles, one dispersion plate and one scraper |
Revolution Speed | Max.47rpm |
Mixing Speed | Max.295rpm |
Dispersed Rotational Speed | Max.4000rpm |
Mixing Time | Can be set from 0 to 9999 minutes |
Tank Capacity | Total volume 2.9L, maximum effective volume 2L (minimum stirring volume 350ml) |
Material Tank Size | Inner diameter of Ø 150mm * H165mm (with water jacket, optional with chiller and hot water bath) |

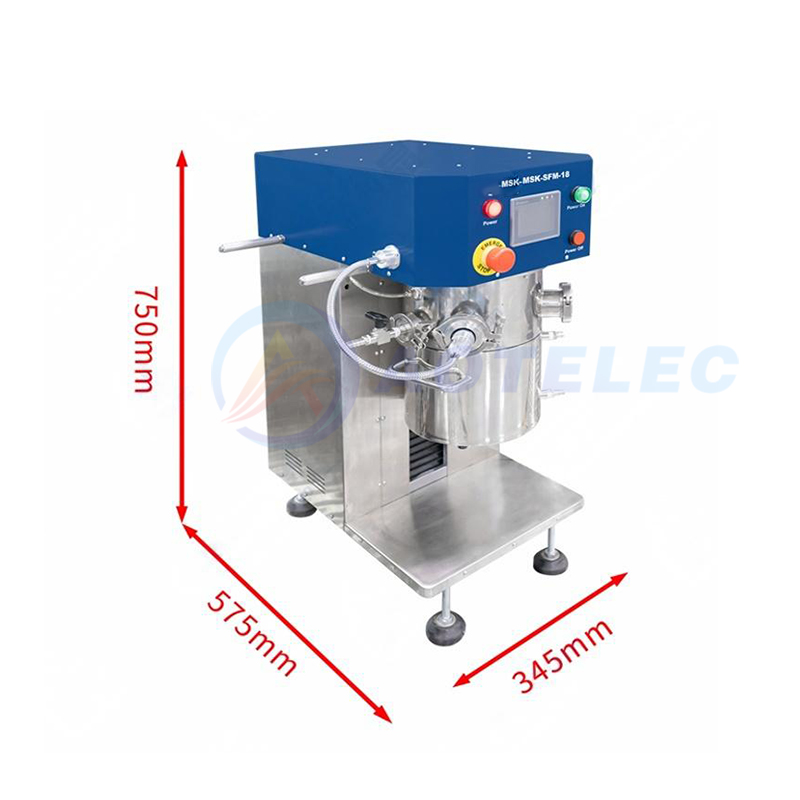

Equipment Size | L575mm*W345mm*H750mm |
Weight | About 150kg. |
