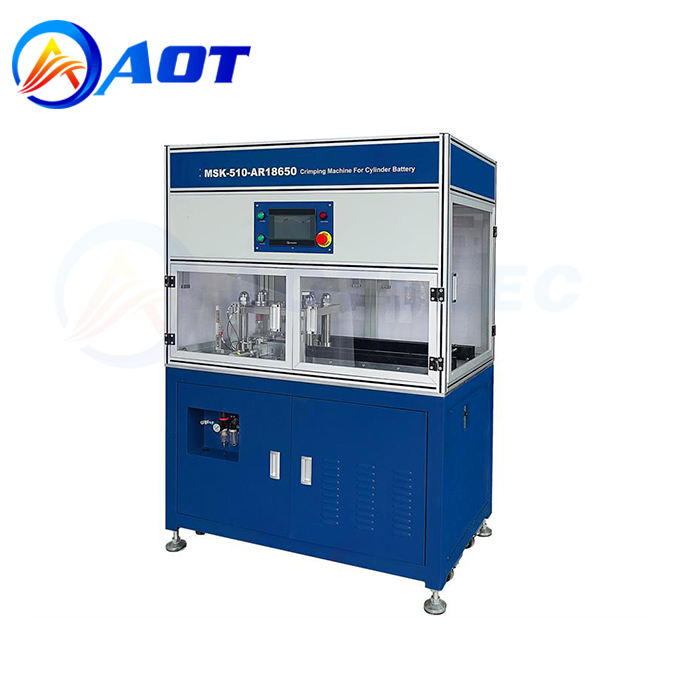

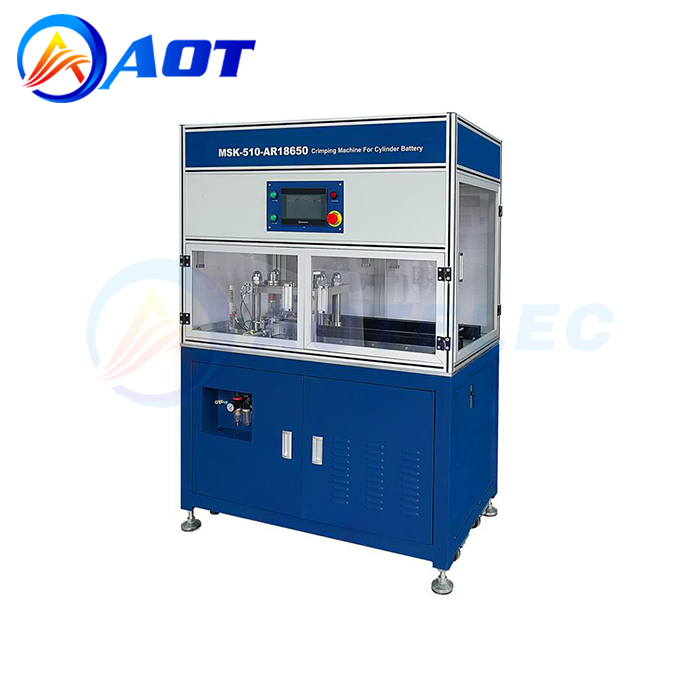

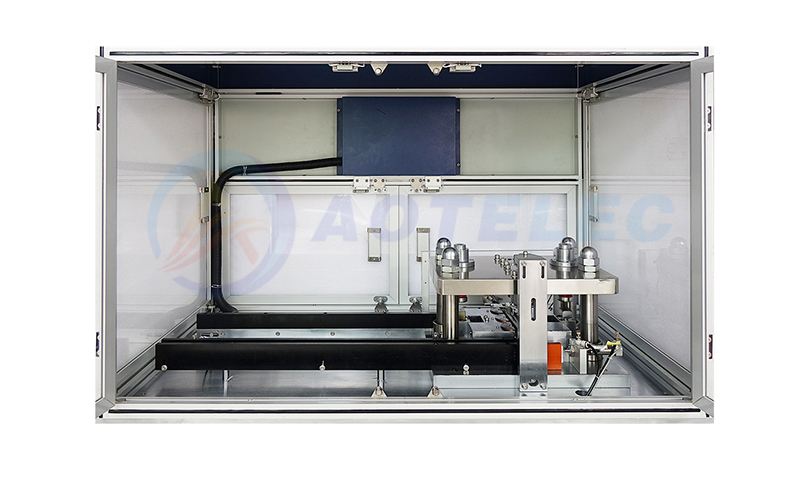

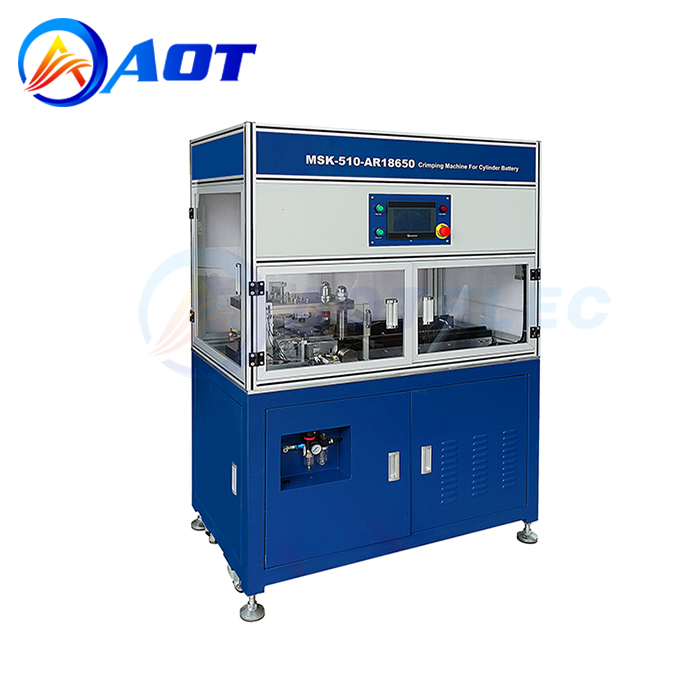

AOT-MSK-AR18650 cylindrical battery sealing machine is an equipment used for sealing cylindrical battery shell and cap. The equipment adopts automatic design, manual loading and unloading, and the sealing process is fully automatic.
Product name | Cylindrical battery sealing machine |
Voltage | 220VAC, 50/60 Hz, three phases |
Power | Max4KW |
Pneumatic | 0.5-0.8MPa compressed air |
Compatibility | Standard crimping capability for 18650 case |
Crimping Force | Up to 6kgf/cm² |
Productivity | 30 pieces per minute |
Features | 1.Four sealing processes are adopted, including pre-sealing, primary sealing, secondary sealing and pier sealing;
2.Equipped with 18650 mold, other models of cylindrical battery seals can be customized;
3.The equipment works stably and reliably, and the height consistency is good after sealing;
4.The size of each seal can be adjusted slightly, the speed can be adjusted, and the sealing force can be controlled;
5.PLC control, HMI operation, easy to use;
|

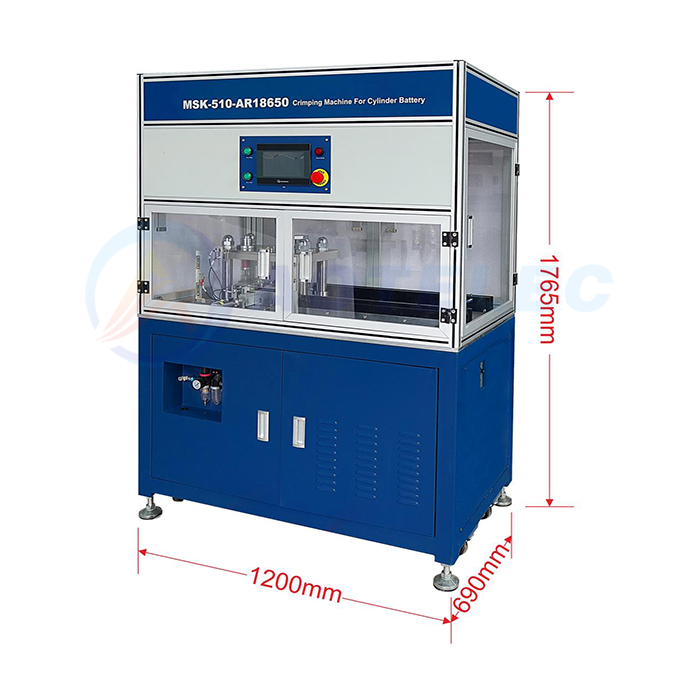

Product Dimensions | L1200mm * W690mm *H 1765mm |
