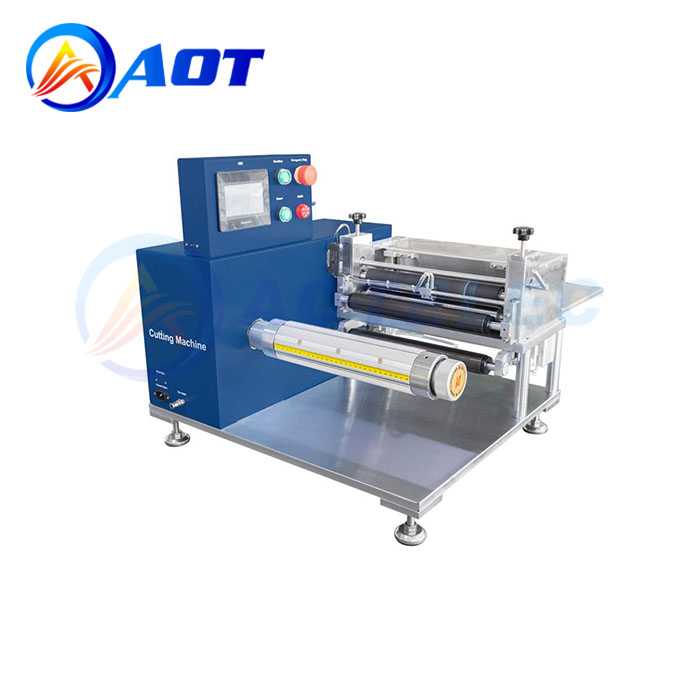

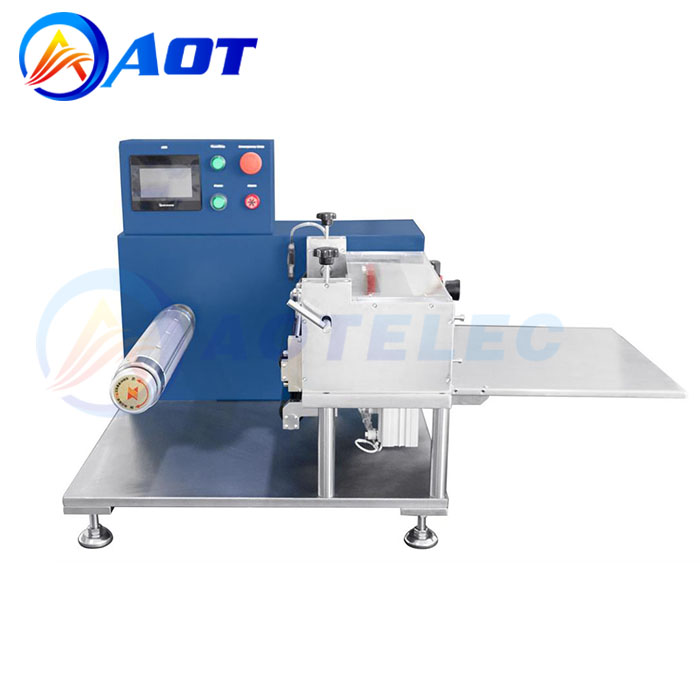

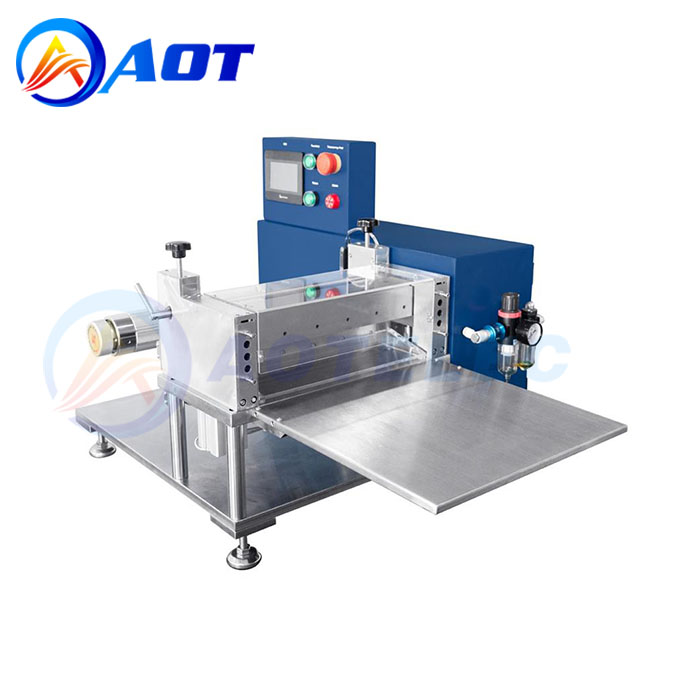

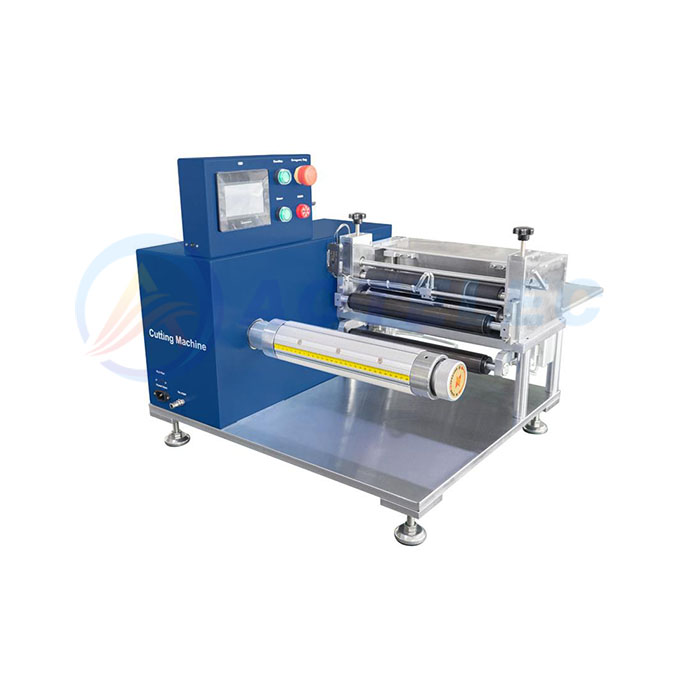

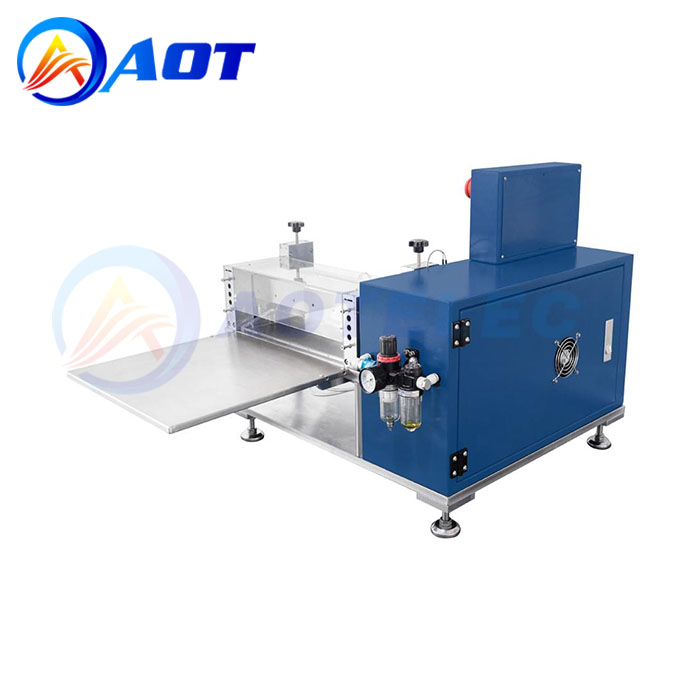

This is an automatic roll-to-sheet cutting machine for lithium battery electrode cutting.
Features:
1.Automatic tension control.
2.Electrode cutting width: 10 mm - 290 mm optional
3.Continuous cutting and continuous cut-to-length modes are possible
4.PLC touch screen control
Specification
Product Name | Cutting Machine |
Voltage | Single-phase 208~240VAC, 50/60Hz |
Power | Max 500 W |
Electrode Width | 10 mm - 290 mm |
Cutting Accuracy | +/- 0.3mm |
Tension Control | Maximum 30 N |
Linear Speed Allowed | Maximum 2 m/min |
Electrode Roll Size | Maximum OD300 mm |

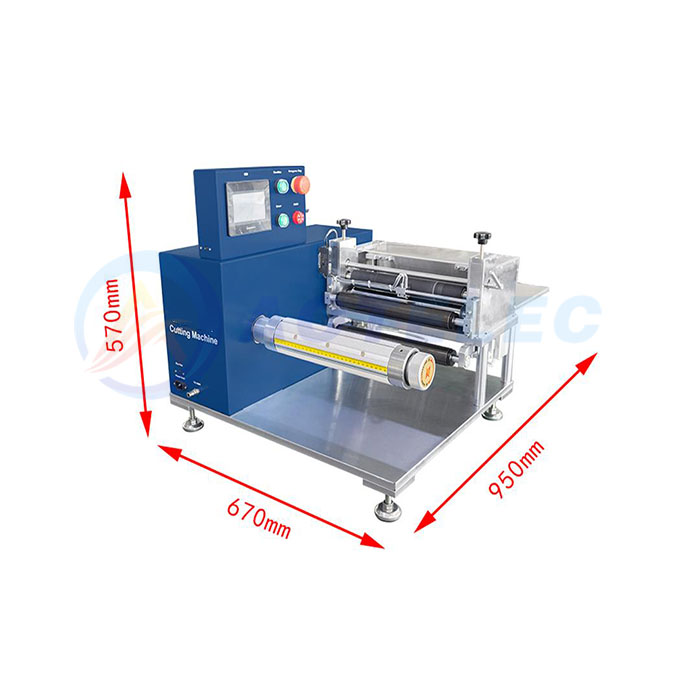

Product Size | L 950 mm x W 670 mm x H 570 mm |
Weight | 161 kg |
