Aluminum Laminated Film for Lab Pouch Cell Case Preparation

Aluminum Laminated Film for Lab Pouch Cell Case Preparation

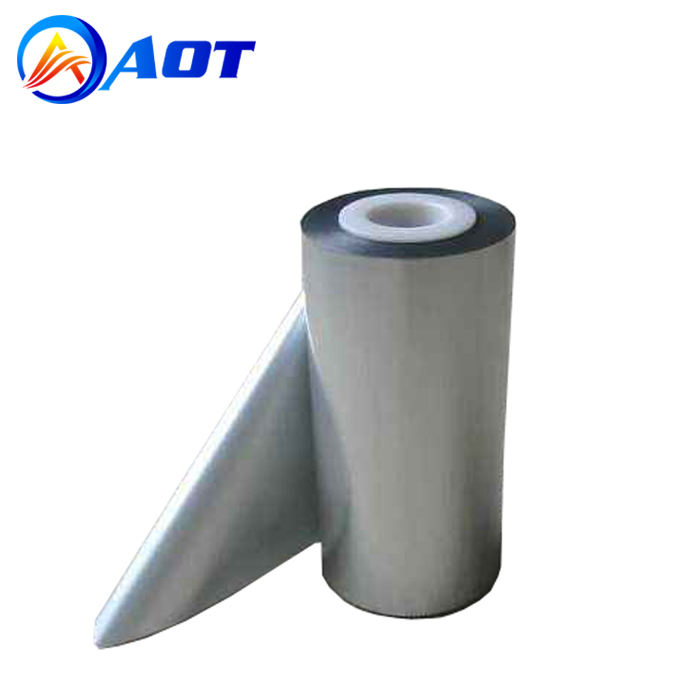

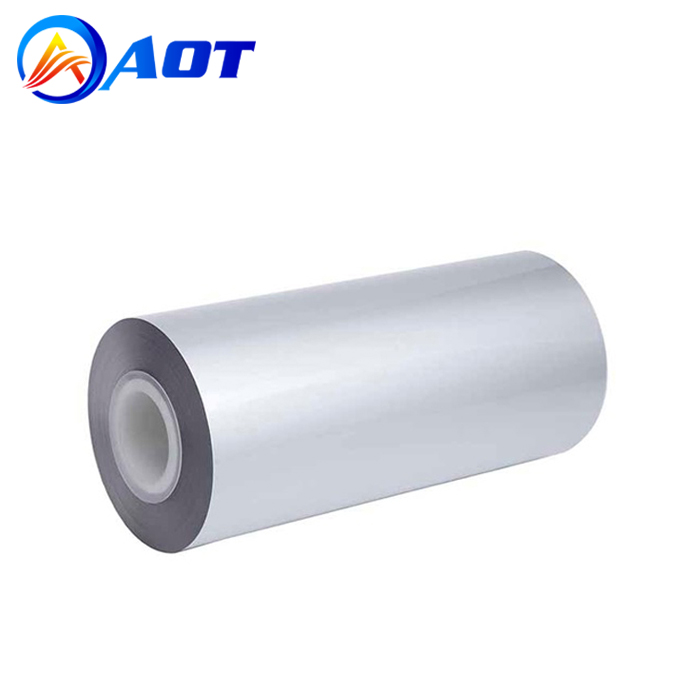

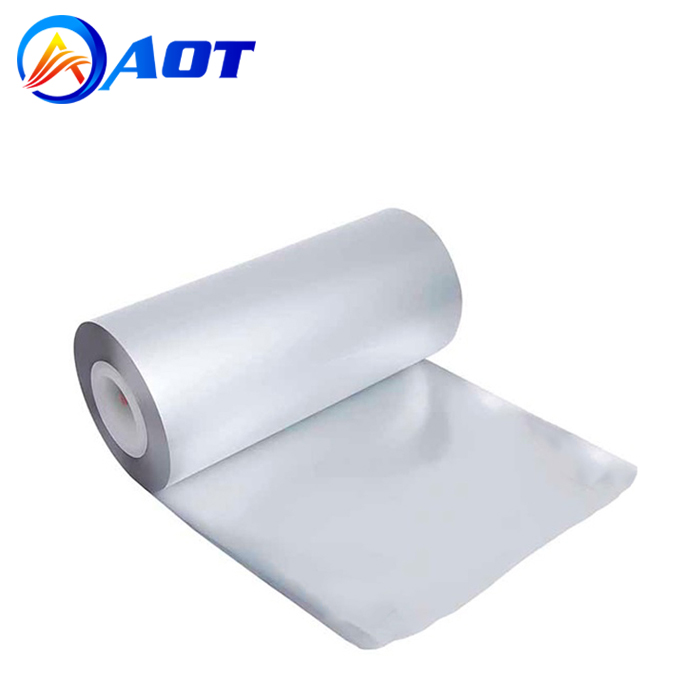

Aluminum Laminated Film
Thickness: 88um/113um/152um
Origin: China/Japan
MOQ: 1 Roll
Product description: Aluminum laminated film mainly for lithium ion battery pouch cell case preparation, it is one of the five major materials of lithium ion battery, and it is lithium battery soft packaging materials.
INQUIRY

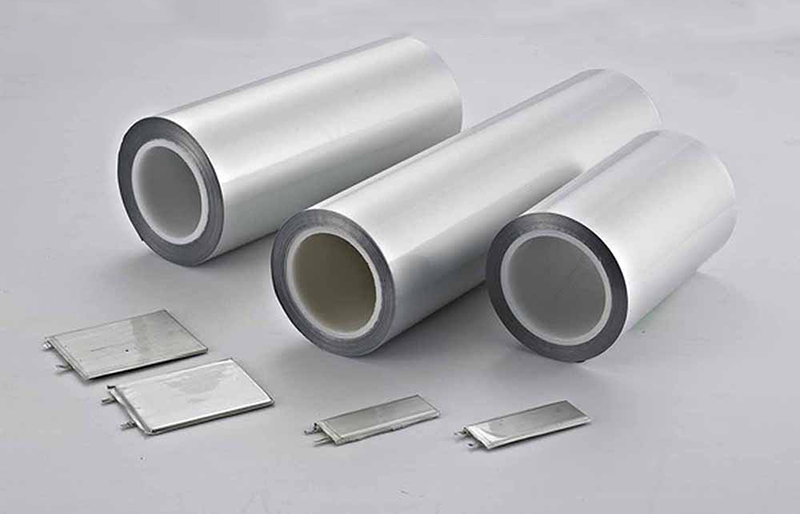

Aluminum Laminated Film for Pouch Cell Case battery material

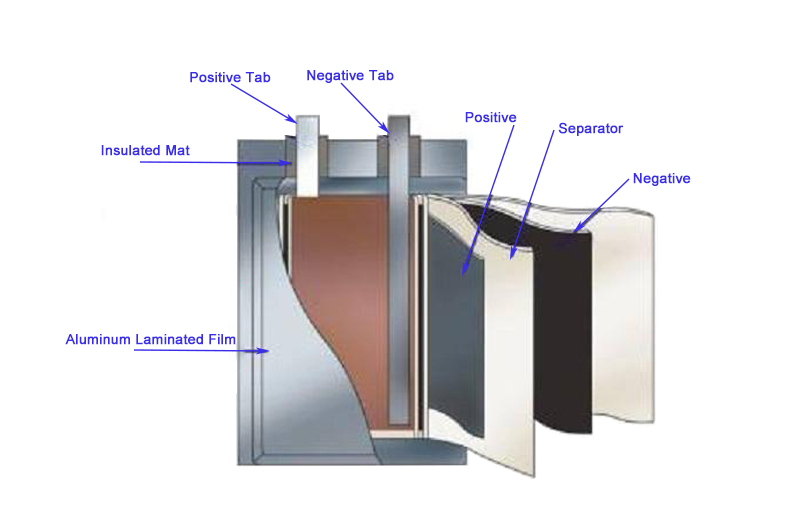

Aluminum laminated film mainly for lithium ion battery pouch cell case preparation, it is one of the five major materials of lithium ion battery, and it is lithium battery soft packaging materials. The aluminum laminated film consists of outer nylon layer/adhesive/intermediate Aluminum Foil/adhesive/internal heat seal layer.

The specification below is for 113um thickness Aluminium Laminated Film. We can also supply 88um, 152um thickness for your choice, as well as ready made pouch cell case with customized size for laboratory use.

Name	Small Roll Aluminium Laminated Film for Pouch Cell Case
Thickness	113um(88um and 152um optional)
Width	400mm, pls confirm with sales person
Length	Min:10m/roll, Can be customized.
Surface quality	Mat finish
Pinholes	Subject to the applicable aluminum foil standard
Impurity	1mm or less in diameter
Fish Eye	2mm or less in diameter (clear),1mm or less in diameter (colored)
Molding Depth	≥5.0mm
Electrical Insulating	Good
Hot Sealing Coniditon	180-190 degree centigrade
Moisture Vapor / O2 Transmission Rate	200ppm/5 years
Laminate Strength	Nylon/Al more than 2N/15mm; Al/CPP more than 5N/15mm
Heat Seal Strength	More than 22.5N/15mm wide at 200℃ x 0.2Mpa x2 sec by AOT Battery heat sealer machine
Solvent Retention	Less than 5mg/m2
Appearance	Within the sample of the limit
Slip Factor	CPP/CPP: less than 1.0
