6L Laboratory Planetary Ball Mill Is Suitable For Grinding Various Materials

6L Laboratory Planetary Ball Mill Is Suitable For Grinding Various Materials

Product Name;Planetary Ball Mill
Voltage:AC 220V, 50 Hz
Motor Power：0.75kw
Origin:China
Product description: Planetary ball mills are widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and other departme
INQUIRY

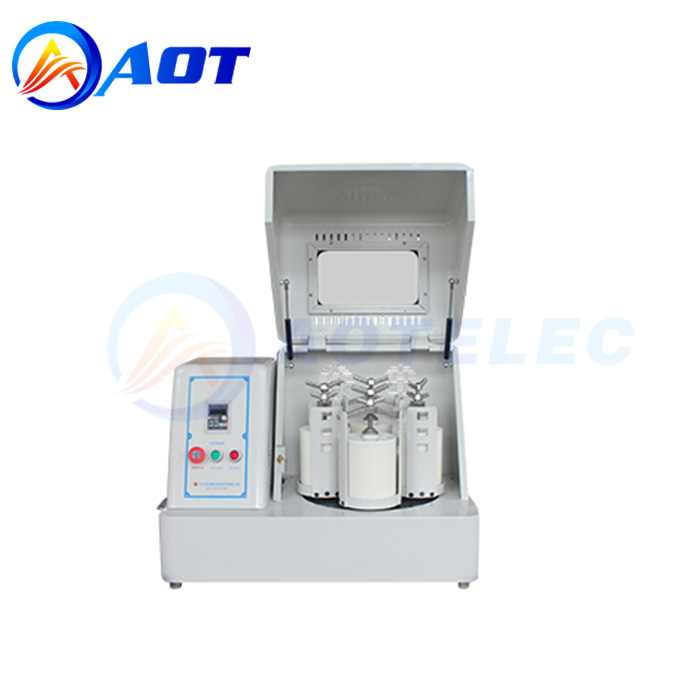

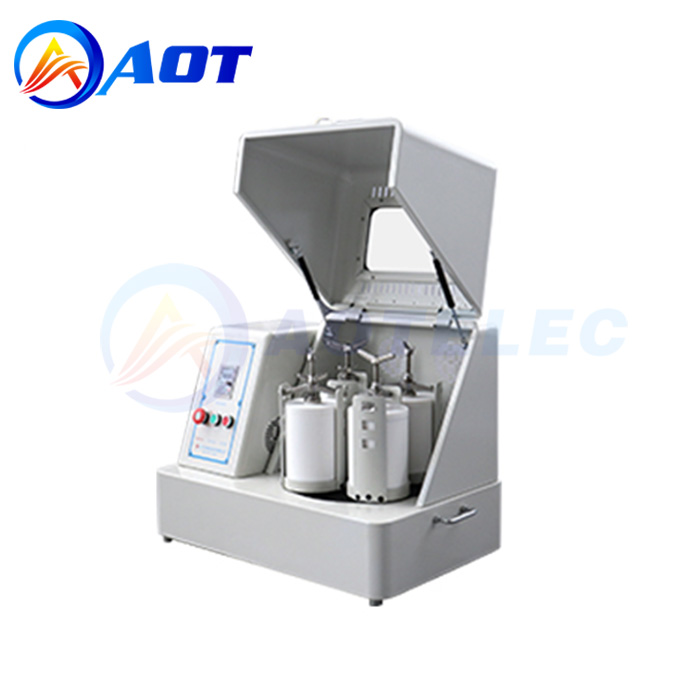

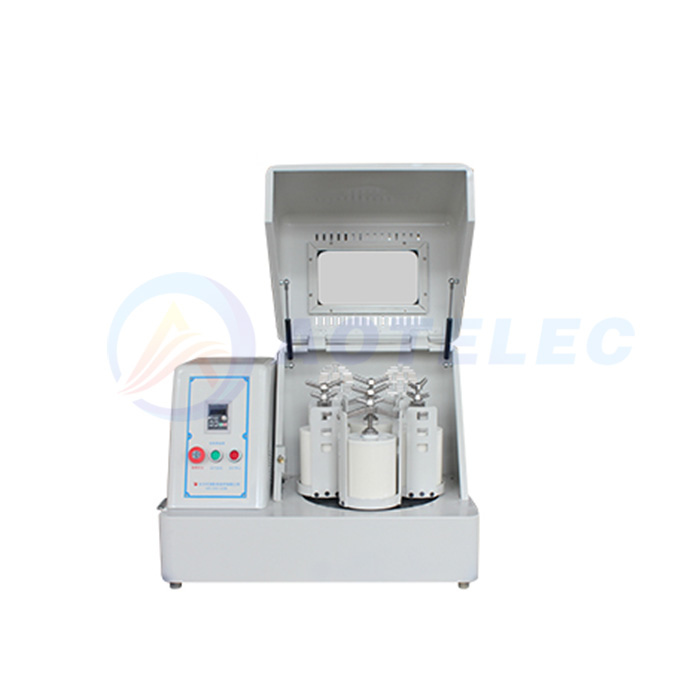

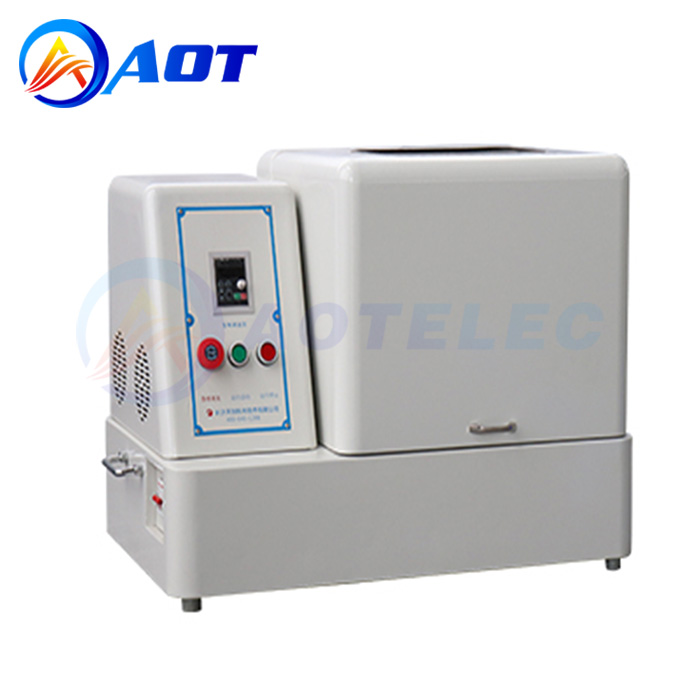

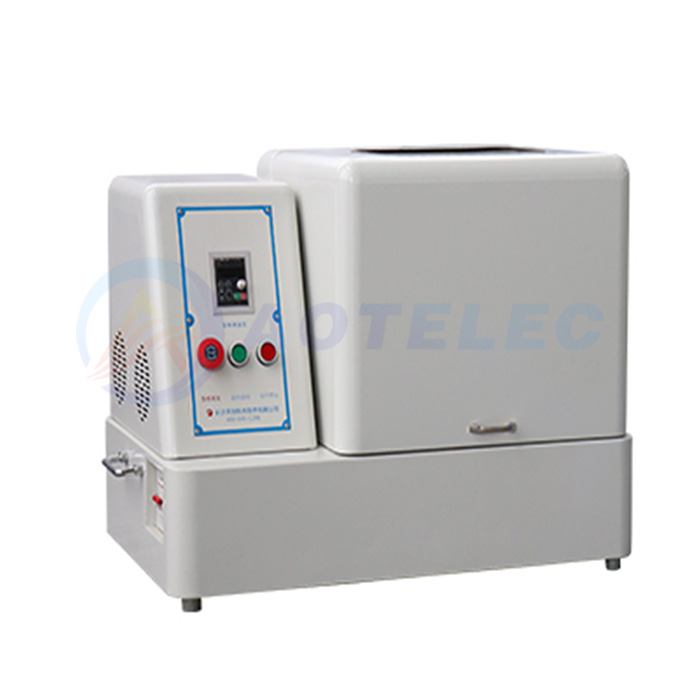

AOT-XMQ-6L planetary ball mill has the advantages of small size, full function, high efficiency and low noise.It is suitable for powder equipment for scientific research units, colleges and universities, and enterprise laboratories to obtain research samples (four samples can be obtained at the same time for each experiment).It is also equipped with a vacuum ball mill jar, which can grind samples in a vacuum state.

Planetary ball mills are widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and other departments.

Specification:

Product Name	Laboratory Planetary Ball Mill
Voltage	220V 50HZ
Motor Power	0.75kW
Total running time	1~9999min
Forward and reverse running time	1~999min
Adjustable speed revolution	35~335rpm
Adjustable speed rotation	70~670rpm
Noise level	≤65±5dB
Speed mode	Frequency
Maximum throughput	6L
Can be equipped with ball mill specifications	1-1.5L
Number of stations	4pcs
Transfer method	gear drive
Way of working	Two or four ball mill tanks work at the same time
Maximum sample size	Two-thirds of the volume of the ball mill
Ball mill jar volume	5L-50L per can, total volume 20L-200L
Feed particle size	Soil material ≤ 10mm, other material < 8mm
Minimum discharge particle size	0.1μm
weight	93kg
Size	750470564mm
Remark	Can be equipped with 50-1000ml vacuum ball mill
