26650 Cylindrical Battery Cell Cases with Cap

Model: 26650 Cases
Material: 304 Stainless Steel
Size: 26mm*680mm
Delivery Time: 3 days
Product description: 26650 Cylindrical Battery Cell Cases with Anti-explosive Cap
INQUIRY

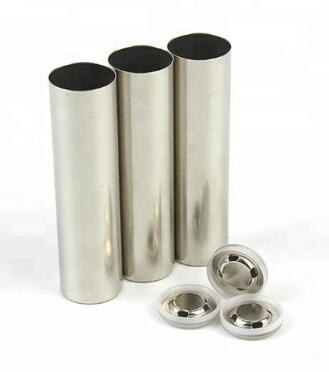

26650 Cylinder Cell Case with Anti-Explosive Cap and O-ring for Lithium ion Battery Making

Materials

Case are made of 304ss stainless steel

cap are made of Nickel plated steel

Seal O-ring are made of nylon

Insulating gasket are made of PP

26650 cylinder cell case

Specifications
Dimensions (Dia x Height)	Case: 26mm(OD) x 25.5mm(ID) x 68mm(H) Top Cap: 25.5mm(D) x 5mm(H)
Materials	case and cap made of Nicke plated A3 steel and seal O-ring made of nylon
Weight	18.75 g/pcs
Note	Safety valve's open pressure: 2.8MPa (the cap valve will open to release interior high pressure if over 2.8MPa to ensure no explosion from the can)
