Home > Li-ion Battery Material

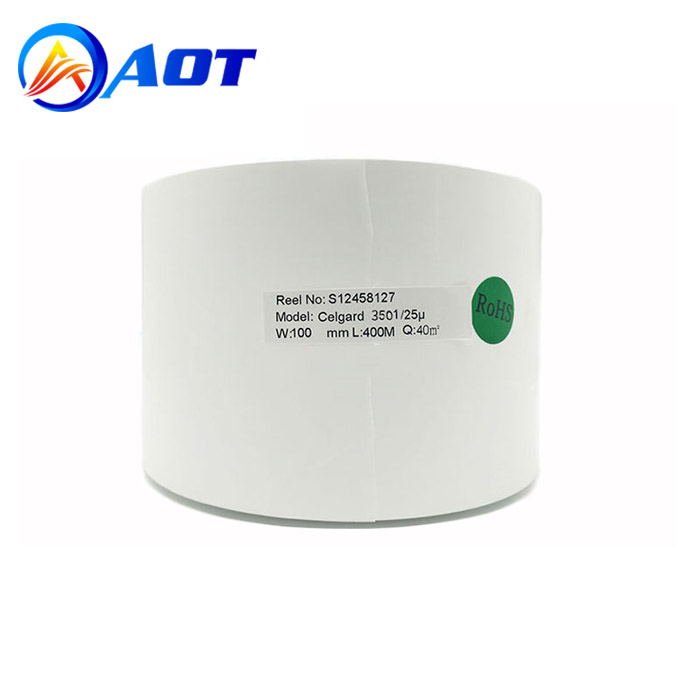

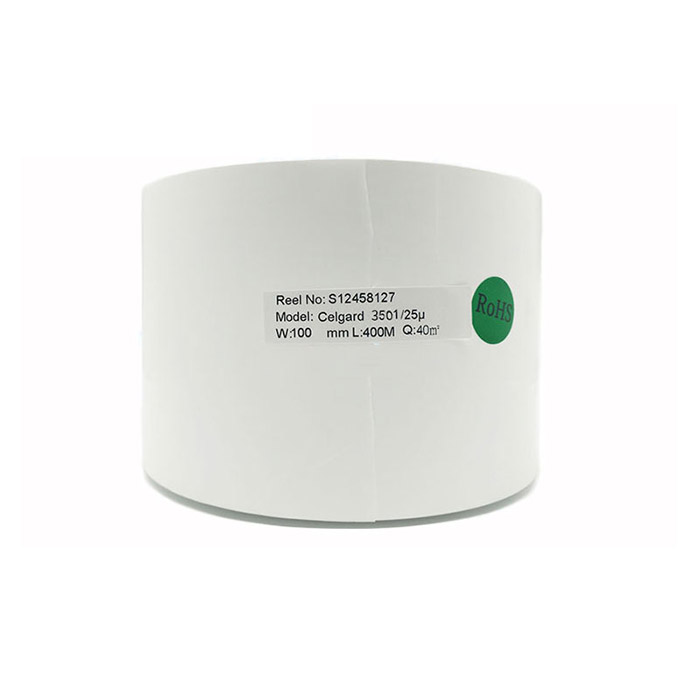

25um Microporous Monolayer Membrane PP Battery Separator for Lithium Battery Lab Research

Model: Celgard 3501
Thickness: 25um
Material: PP Membrane
Origin: China
Product description: This 25µm Microporous Monolayer Membrane (PP) Separator Celgard 3501 is recommended to use in lithium ion batteries lab research.
INQUIRY

25um Microporous Monolayer Membrane PP Battery Separator for Lithium Battery Lab Research

Name and Description

Model: Celgard 3501

25um Microporous Monolayer Membrane PP Separator Surfactant-Coated
Primary Applications
Aqueous Electrolyte Battery Systems

Product Features
1.Surfactant coated for rapid wetting.
2.Low electrical impedance provides good rate capabilities.
3.Zero TD shrinkage reduces internal shorting and improves high temperature stability.
4.Oxidation resistance for excellent cycling and trickle charge performance.

Technical Data (Typical Properties)

Basic Film Properties	Unit of Measure	Typical Value
Thickness	um	25
Gurley(JIS)	Seconds	200
Porosity	%	55
TD Shrinkage @ 105°C/ 1 Hour	%	0
MD Shrinkage @105°C / 1 Hour	%	2.97
TD Tensile Strength	Kg/cm²	135
MD Tensile Strength	Kg/cm²	1055
Puncture Strength	Grams Force(gf)	335
