200mm Continuous Electrode Coating Machine for Lab Battery Manufacturing

Model: AOT-CCM-200
Type: Continuous Coating Method
Coating width: 30mm-180mm
Coating Thickness: 30um-200um
Product description: AOT-CCM-200 Lab battery electrode coating machine is a compact Roll to Roll continuous coater for small size lithium battery research in laboratory of university and factory.
INQUIRY

200mm width Continuous Coating Machine for Lab Battery Manufacturing

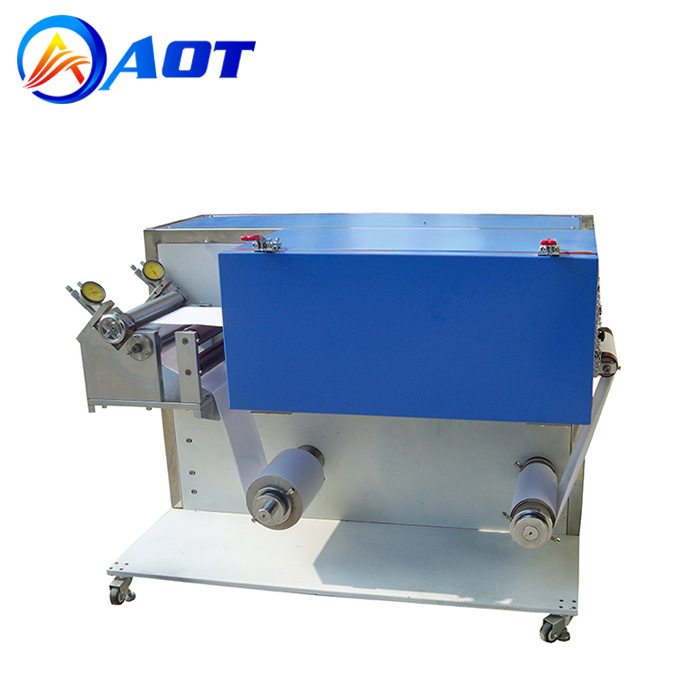

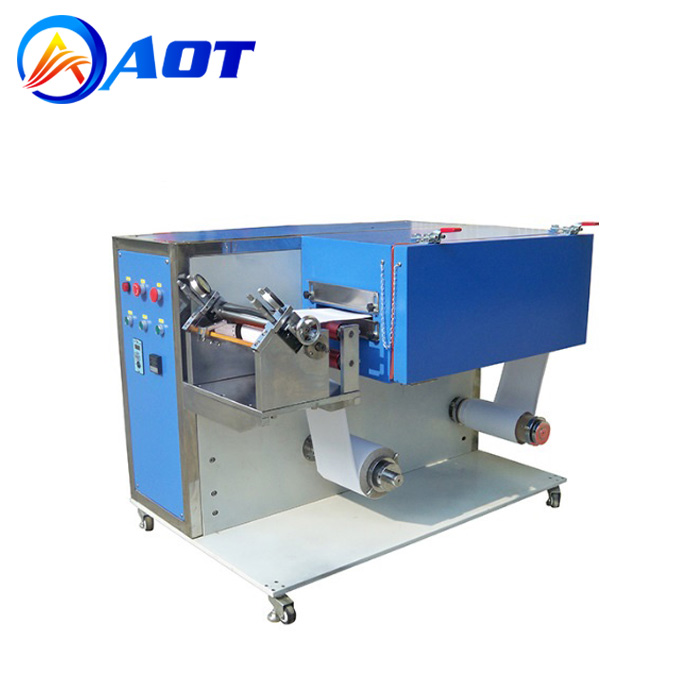

AOT-CCM-200 Lab battery electrode coating machine is a compact Roll to Roll continuous coater for small size battery research in laboratory of university and factory.

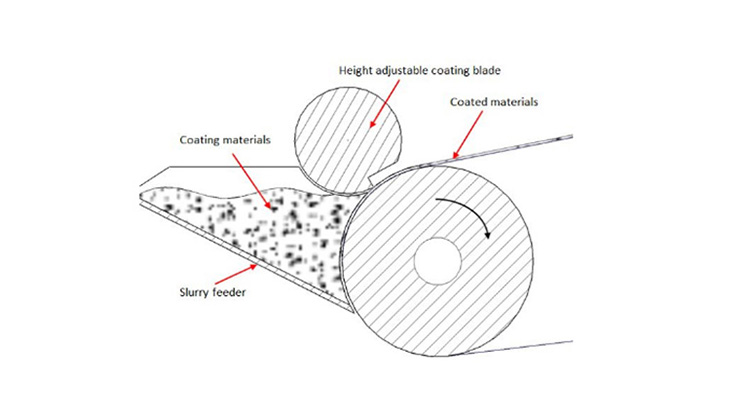

This coating system integrates the functions of reeling in and out, slurry feeder, coating blade, baking oven, and final electrode rewinding. It can coat electrode sheets up to 180mm width and 500 meter length automatically.

This lab coating machine is mainly used for LFP, LCO, LMO and NCM system battery cathode and anode electrode continuous coating.

One convenient design is that it has four wheels on bottom of equipment, it can be removed easily for laboratory use.

Model	Lab battery electrode coating machine AOT-CCM-200
Source voltage	AC 220v 50Hz , can be customized
Power	3000W
Warranty	One Year limited manufacture warranty with lifetime online support
Coating mode	Continuous coating
Max coating width	180mm
Applicable matrix thickness	Aluminum foil : 11-30um Copper foil : 8-30um
Mechanical tape speed	≤5m/min, with accuracy ±0.1m/min
Coating speed	0-750 mm / minute, adjustable
Coating thickness	30-200um
Applicable slurry viscosity	1500-15000cps
Coating roller accuracy	≤1um
Coating accuracy	Double dry thickness accuracy error : <±4um
	Single side dry thickness accuracy error : <±2um
	Double coated alignment error : <±0.5mm
	Average length of error : <±0.5mm
Roller inner diameter	3 inches
Tension control	Low friction tension system
Struggle to control precision	<±0.3mm
Oven temperature	Max150℃ adjustable, with accuracy ±1℃, Independent PID adjustable
Weight	500kg
Dimensions(LWH)	1100650650mm
