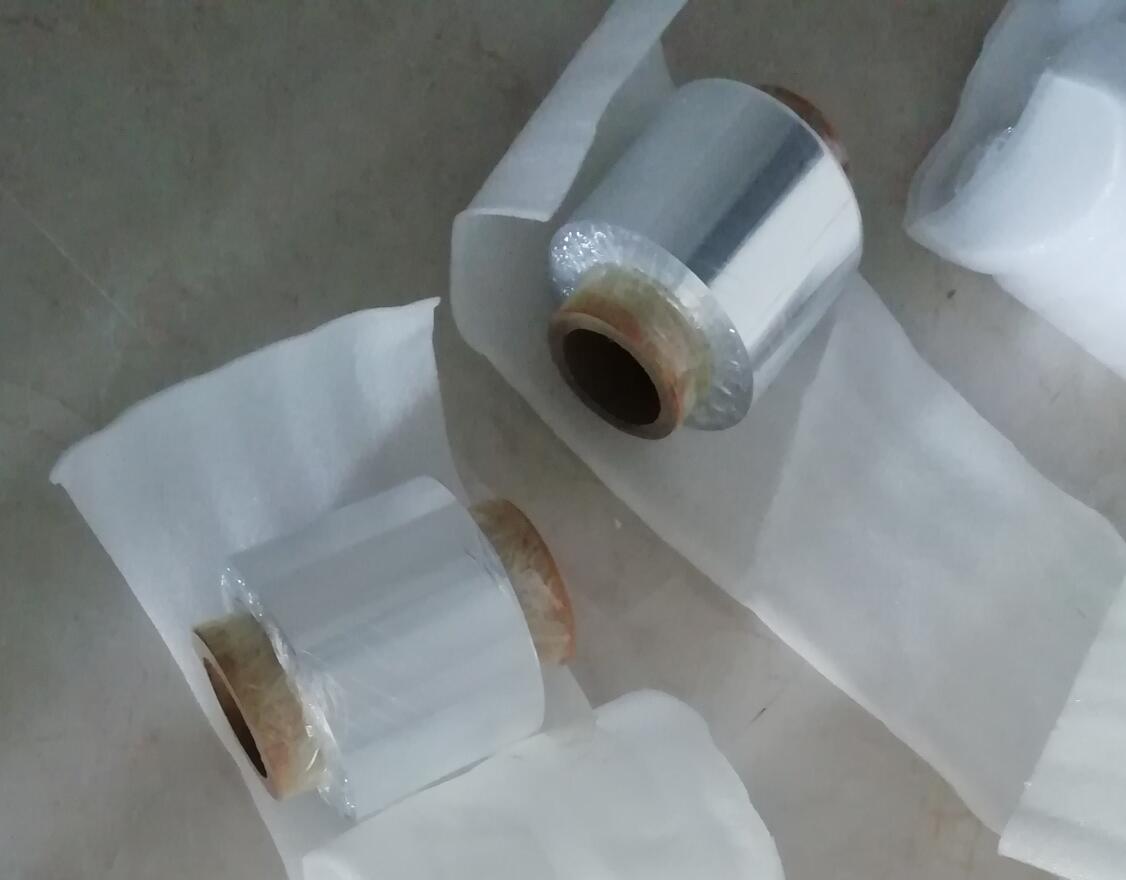

16um Thickness Aluminum Foil for Lithium ion Battery Lab Research

16um Thickness Aluminum Foil for Lithium ion Battery Lab Research

As we all know, aluminum foil roll can be used for the lithium ion battery cathode current collector, and it is the necessary material for li-ion battery making.



Choose a good supplier who can provide high quality of aluminum foil is a important thing for clients. We can provide pure Al foil for lab battery research and battery factory manufacture. The general thickness is 12um, 16um, 18um, 20um etc, the width can be customized accroding to your requests.



Let’s have a look at the data sheet about 16um thikness aluminum foil:



Item

Standard

Hardness

H18

Width

Standard(Required) width ±0.1mm

Thickness

0.016±0.001mm

Areal density

42~46g/ m2

With transverse surface density uniformity

≤0.003 g/ 40×40 mm

The same volume of vertical surface density uniformity

≤0.03 g/ 400×40 mm

High temperature oxidation resistance (200°C*30min)

No oxidation

Connect no

<2

Chemistry content(Al)

>99.45%

Extensibility

<0.5%

Normal temperature Tensile strength kgf/mm2

>180

After 1200C baking 1h, Tensile strength kgf/mm2

>160

Core(ID) mm

76.2mm

Wettability

A grade

Coating Performance

Aluminum foil with uniform tension on both sides, slurry coating uniformity

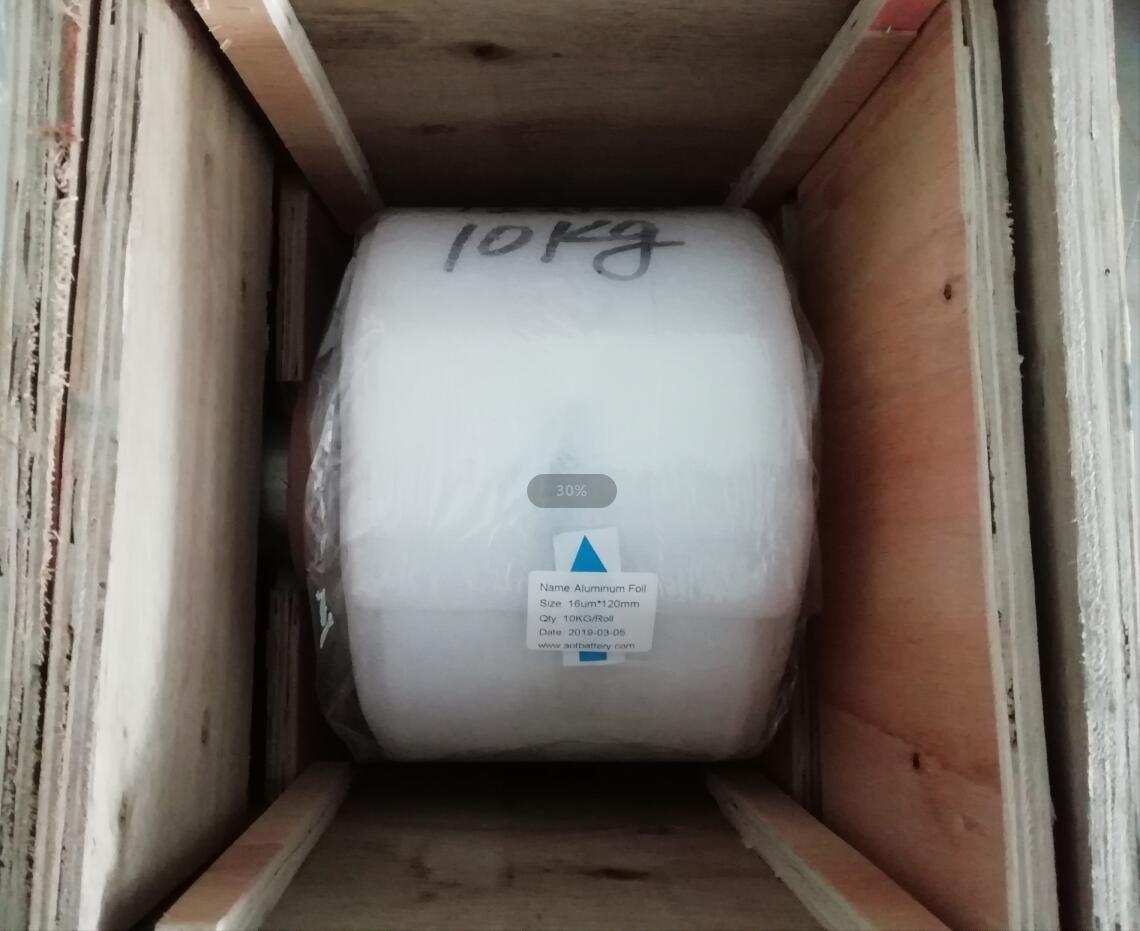

The aluminum foil is weak, and it is easily broken during the delivery, we can provide standard export wooden box as outside package, inside foam cotton anticollision protected:



AOT ELECTRONIC TECHNOLOGY CO.,LTD which has 10 years experience in LITHIUM ION BATTERY field. We provide full kinds of battery equipment and material, the lab research line is available according to the requirements of customer.



Advantage of Technology, Advantage of Team!



Contact: Ms.Lika (Sales)

Email:sales@aotbattery.com

Tel: +86-592-7161550

Phone : 0086-19906035385

Web: www.aotbattery.com
