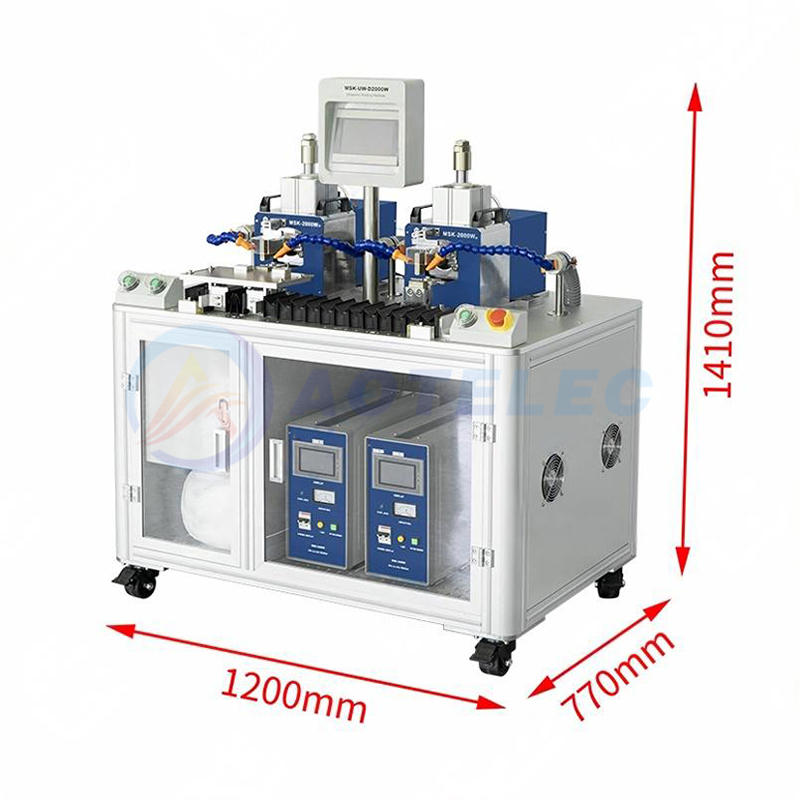

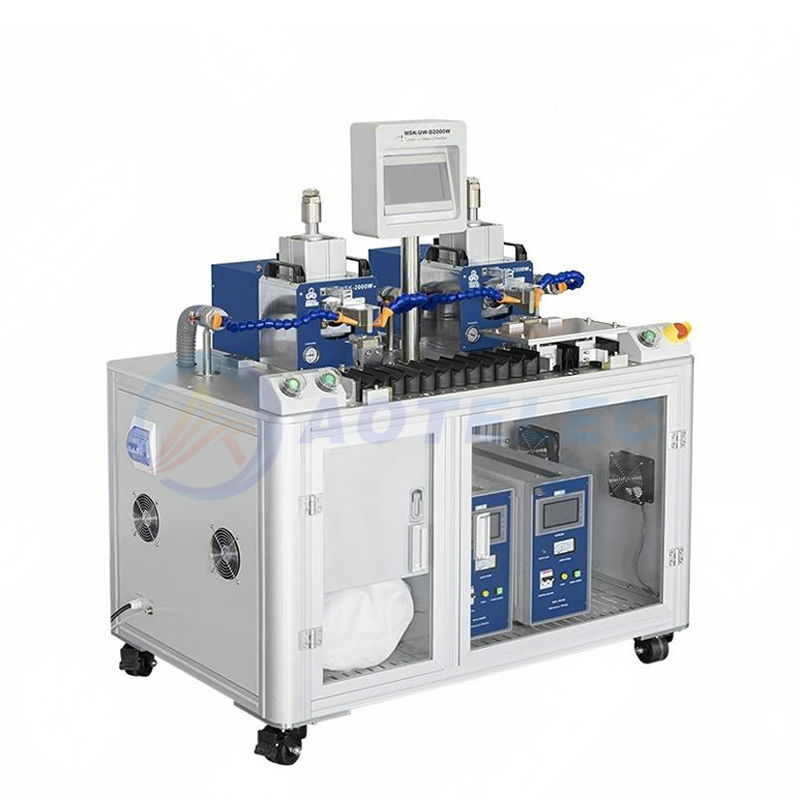

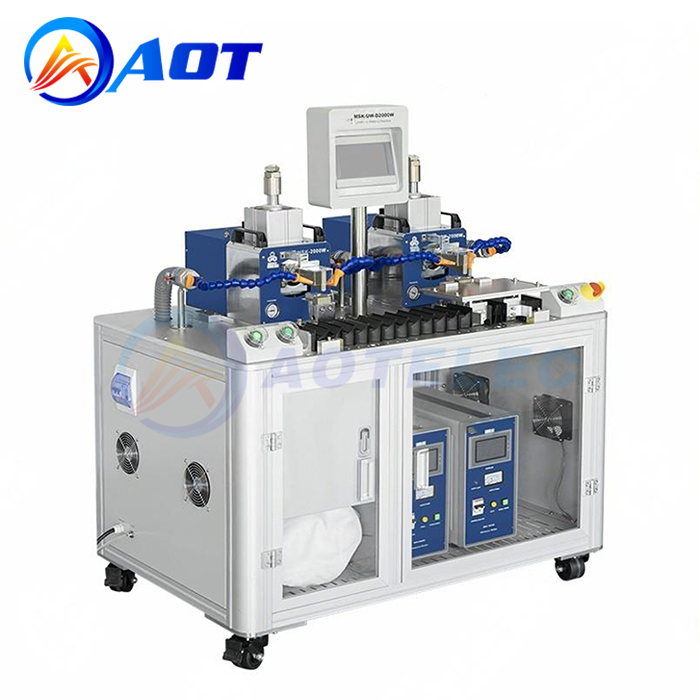

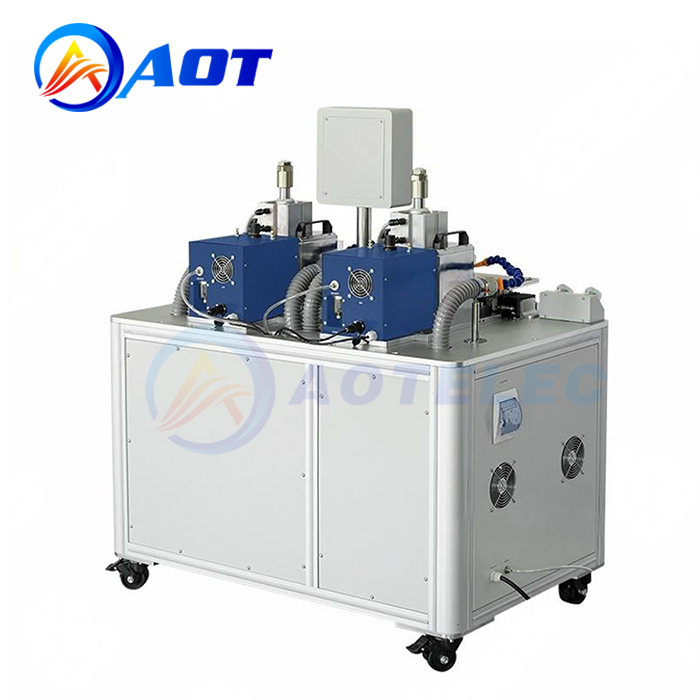

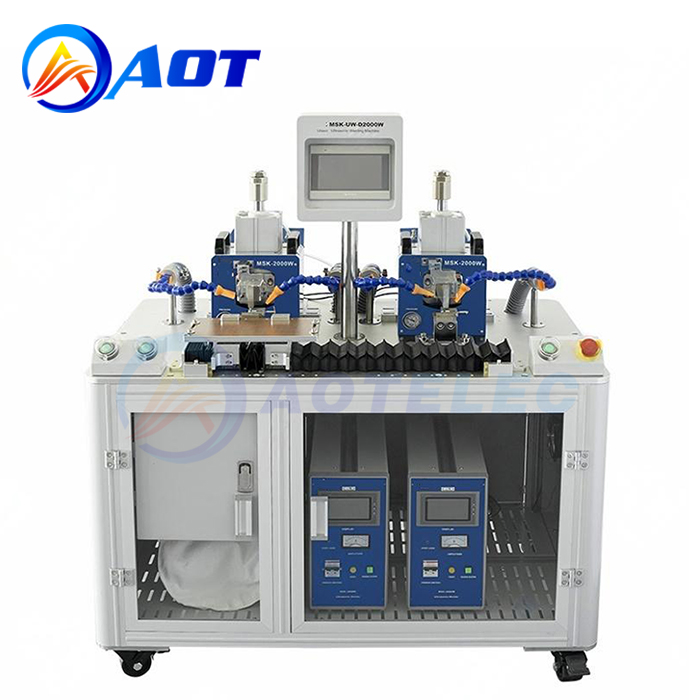

AOT-MSK-UW-D2000W Ultrasonic Metal (Battery Tab) Welding Machine, compatible with pre welding and final welding of battery cells. The battery cells and tab are manually placed into the fixture, and the fixture is manually slid to the welding station to achieve welding. The equipment includes units such as material sensing, pole tab welding, and dust removal. After welding (30 layers of copper foil), the tensile strength is ≥ 130N, and the welding residue rate is>80%. We can customize the size of solder joints, single tab cell fixtures, or double pin tab cell fixtures according to customer requirements.

Functional Features:

Dual station welding, separation of positive and negative electrode welding, independent setting of welding parameters;

Customization of single or double output tab cell fixtures is available for quick clamping and positioning of cells and pole ears;

Compatible with four functions: positive electrode tab Pre welding welding, negative electrode tab pre welding, positive electrode aluminum tab welding, and negative electrode nickel tab  welding;

Stable and strong welding power, firm and consistent welding, high yield rate;

Up to 30 layers of copper foil or Aluminum Foil can be stacked and welded together;

The welding mold is made of special mold steel, which has good wear resistance and long service life;

Install a dust removal device to collect dust generated during welding;

Configure a dual start button and material sensor start mode to ensure safe operation;

Customizable solder joint size;

HMI operation, digital settings, convenient and easy to use.

 Technical Parameter:
