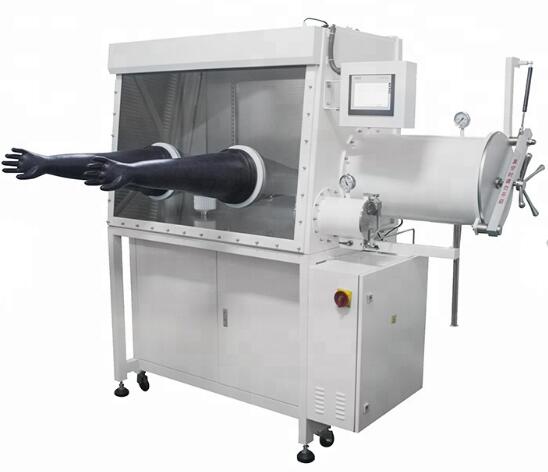

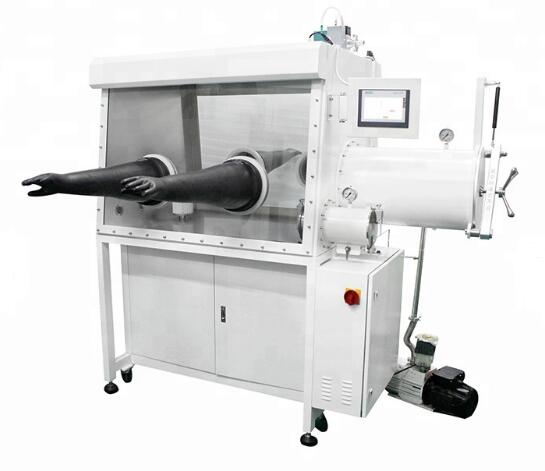

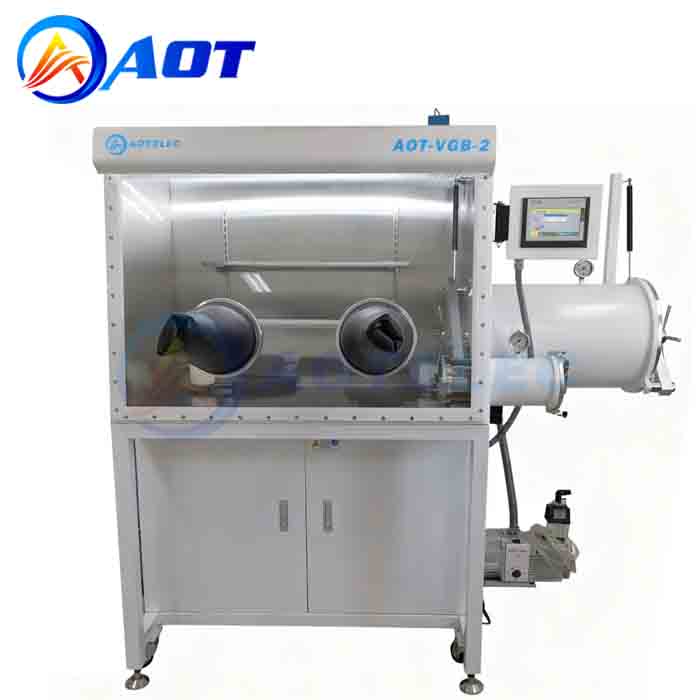

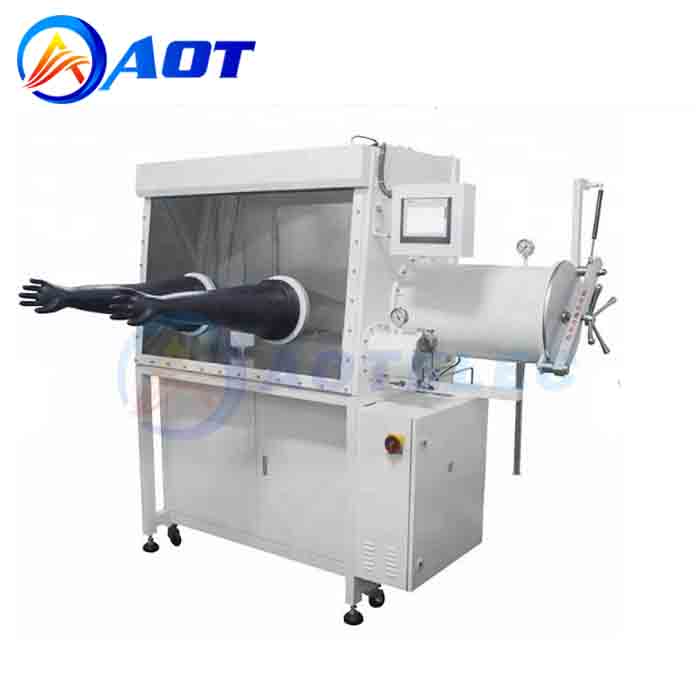

Double Gloves Glove Box with Purification System for Lithium Battery Industry

Model: AOT-VGB-2
Material: 304 Stainless Steel
Origin: China
Application: Lab Coin Cell Battery Research
Product description: Factory Direct Glove Box for Lithium Battery Industry
INQUIRY

Lab vacuum glove box with air circulation and vacuum system, gas purification system to control water and oxygen index less than 1ppm

Basic configuration

1 set 304 stainless steel box, acid-resisting, thickness : 3mm

1 stainless steel vacuum transitional chamber, φ360*600mm

1 small stainless steel transitional chamber,φ150*300mm.

1 front window with 2 glove ports.

1 pairs of butyl rubber gloves.

1 set of lighting system

1 power interface inside the box

1 set of high-performance circulating fan

1 set of purification system

1 set of organic solvent adsorber

1 vacuum pump

1 set of PLC control and touch screen operating system

3 KF40 backup interface (can be customized number)

1 set of water analyzer and oxygen analyzer

1 bracket and trundle

1 foot pedal

Key components

Parts	Origin
Vacuum Pump	EDWARDS (UK)
CirculatingFan	DARGANG（TAIWANG,CHINA）
Water Analyzer	Germany OEM
Oxygen Analyzer	Germany OEM
PressureSensor	HALSTRUP-WALCHER（Germany）
Purification Materials	BASF、BAYER（Germany）
ButylRubberGloves	PIERCAN（USA）
ElectromagneticValve	BURKET（Germany）
PipeFittings	LEGRIS（France）
PLC & Touch Screen	SIEMENS（Germany）
Pressure Gauge	WIKA（Germany）
Integrated Valve Base	Customized

Technology parameters

Item			Parameter
Glove box		Box	Box size: (LWH)=1220×750×900mm Box material: stainless steel 304, thickness 3mm Inner surface: stainless steel wire drawing treatment Outside surface: paint, white
		Front window	Tilt windows, transparent tempered safety glass, thickness 8 mm
		Glove ports	The material is polyoxymethylene, O-ring seal, self-lubricating performance, easy to maintain, and good sealing performance
		Gloves	Butyl rubber, diameter 8", length 32"
		Filter:	0.3 microns, a gas inlet and a gas outlet
		Shelf	Stainless steel, 2 layers
		Lighting	LED lights, installed in front of each glass window
		Connector	Standby interface 3pcs, DN 40 KF, Power interface 1pc (220V)
Bigger transitive cabin		Chamber	Size: diameter 360mm, length 600mm Material: 304 stainless steel Surface: inner surfacewire drawing process, outer surface painting (white)
		Accessories	Sliding tray: 304 stainless steel Door: double door, anodized aluminum material, thickness 10mm, vertical operation, with lifting mechanism Pressure gauge: Analog display
		Control	Solenoid valve touch screen automatic operation
Smaller transitive cabin		Chamber	Size: diameter 150mm, length 300mm (100mm lengthinto the glove box) Material: 304 stainless steel Surface: inner: wire drawing process, outer: painting (white)
		Accessories	Standard configuration: smallcabin tray Door: double door, thread lock Pressure gauge: Analog display
		Control	Manual valve manual operation
Gas purification circulation system		Purification column	Function: gassealed, remove water, remove oxygen Container material: 304 stainless steel Purification materials: copper catalyst: 5kg, molecular sieve: 5 kg Purification capacity: oxygen: 60L, water: 2Kg Water and oxygen indicators: less than 1ppm
		Circulatory system	Working gas: nitrogen, argon Recycling capacity: integrated fan flow 90m³ / h, install frequency conversion
		Regeneration	Operation: PLC automatically controls the regeneration process Regeneration gas: working gas mixed with hydrogen gas, (hydrogen 5-10%)
		Vacuum pump	8m³ / h, rotary vane pump, with oil mist filter, air vibration control
		Valves	Main valve: DN 40 KF, electrically operated angle valve Control valve:electromagnetic integrated valve (stainless steel integrated valvebase, single column for the six valve integration)
Control System		Function	Including self-diagnosis, power-off self-starting characteristics, with pressure control and adaptive function Automatic control, cycle control, password protection
		Pressure control	Control box, transition chamber pressure, cabinet working pressure +/- 10mbar can be set freely, beyond +/- 12mbar system automatic protection
		Pedal	Control the box pressure, easy to operate boost and buck

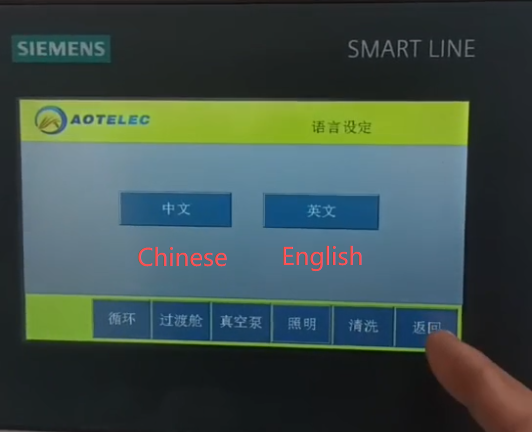

Display system			Using Siemens PLC touch screen, display running status, box pressure, system records etc
Vacuum system control			Vacuum pump, can be manually or through the PLC to start, flow 8m³/h,vacuum of the transitionchamber, and keep the box pressure balance, vacuum pump limit vacuum ≤ 2x10-1pa
Optional components	Water analyzer		Measuring range: 0 ~ 500ppm A wide range of applications, especially for lithium manufacturing and metal organic and other users, the water probe can be cleaned by the regeneration process to restore the initial state, can be reused
	Oxygen analyzer		Measuring range: 0 ~ 1000ppm The use of ZrO2 sensor, to avoid the fuel cell life is short,and avoid the problem of itcan not be exposed in the air
	Organic solvent adsorption		Size: diameter 136mm, height 256mm, filled with 2kg activated carbon, placed inside the box, can quickly replace the material, and does not destroy the high purity atmosphere
