In the highly sophisticated and complex field of lithium battery manufacturing, there is a crucial device that often becomes the core element of ensuring product quality, that is, the lithium battery SSR viscometer.
With the surge of science and technology, lithium batteries have become a well-deserved "star" in the modern energy field. From our daily smartphones and convenient laptops, to electric vehicles that promote the transformation of the transportation field, to energy storage systems that are related to sustainable energy development, lithium batteries are everywhere. With its excellent performance of high energy density, low self-discharge rate and no memory effect, it quickly swept several important markets such as consumer electronics, electric vehicles and renewable energy storage.
1、 the key significance of viscosity in lithium batteries
(1) Viscosity in the preparation of electrode materials
In the process of electrode material preparation, it is a key step to mix active material, conductive agent, binder and so on to make slurry. At this time, the viscosity of the paste is like a "double-edged sword", which directly determines its fluidity and coating performance. When the viscosity is in the right range, the slurry can be uniformly coated on the electrode substrate, and then the electrode layer with uniform thickness and dense structure is formed. On the contrary, if the viscosity is too high, the fluidity of the slurry will be seriously hindered, and it is easy to cause uneven coating thickness during the coating process, and the phenomenon of local too thick or too thin will have an adverse effect on the charge and discharge performance of the battery. When the viscosity is too low, the slurry will flow too fast because it is too thin, resulting in defects in the coating, reducing the utilization of active substances in the electrode, and also damaging the performance of the battery.
(2) Influence of viscosity in electrolyte
As the "bridge" of ion transport inside the lithium battery, the viscosity of the electrolyte is self-evident. The lower electrolyte viscosity is like laying a "highway" for ions, which is conducive to the rapid migration of ions inside the battery, thereby effectively improving the charge and discharge efficiency of the battery. However, the lower the viscosity of the electrolyte, the better, too low viscosity may lead to electrolyte leakage and other safety hazards. In addition, the external factor of temperature has a significant effect on the viscosity of the electrolyte, and with the change of temperature, the viscosity of the electrolyte will also change. Therefore, in different use environments, it is necessary to accurately monitor and timely adjust the viscosity of the electrolyte, only in this way can ensure the stable and reliable performance of the battery.
2、the principle and characteristics of lithium battery SSR viscometer
(1) Working principle of SSR viscometer

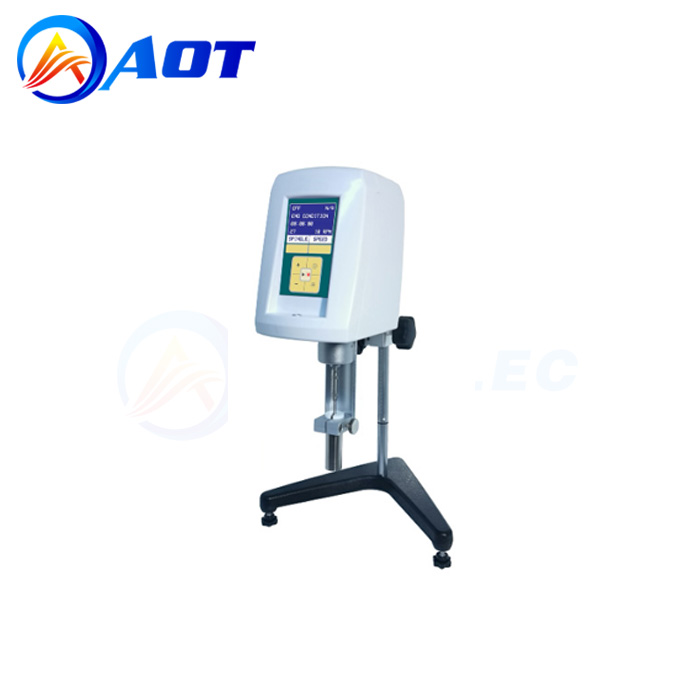

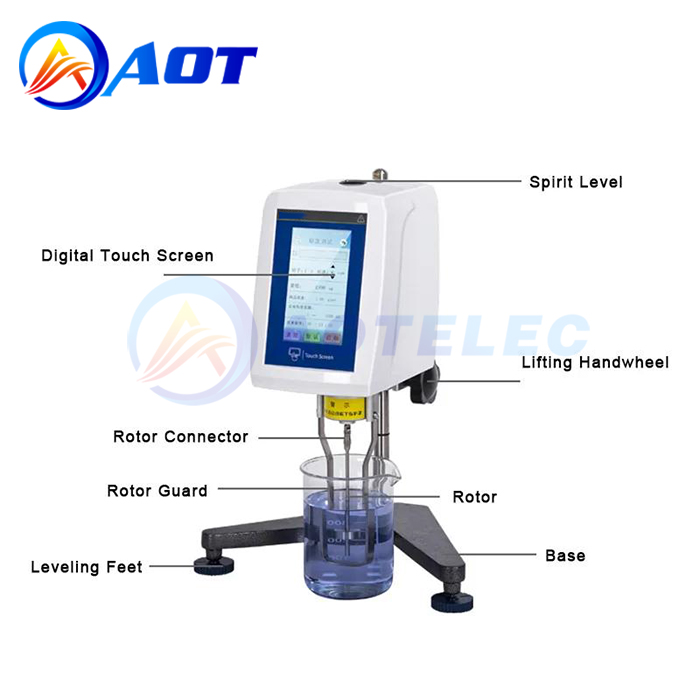

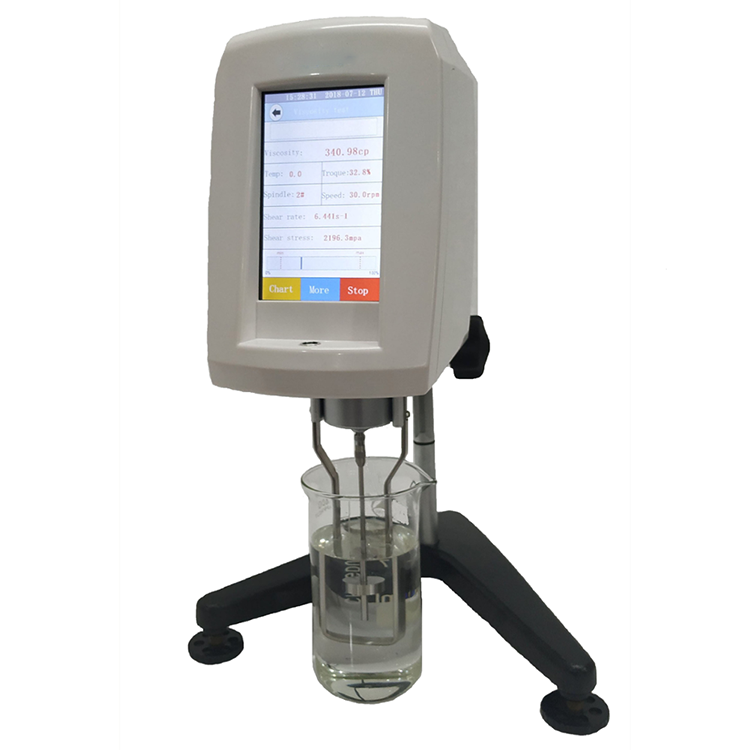

The lithium battery SSR viscometer (rotary rheometer) is based on the exquisite principle of rotary measurement. During the measurement process, it will apply a specific torque to the measured liquid, causing the measuring rotor to rotate in the liquid. The viscous resistance of the liquid itself will be like an invisible "big hand", which will hinder the rotation of the rotor. At this time, the measurement system will accurately detect the rotor speed, torque and other key parameters through advanced technical means, and calculate the viscosity of the liquid according to a rigorous specific mathematical model. This measurement method is like a high-precision "scientific dance", with extremely high accuracy and repeatability, and can accurately measure the viscosity of lithium battery materials under different shear rates and temperature conditions.
(2) The unique advantages of SSR viscometer in lithium battery measurement
High precision measurement: The lithium battery SSR viscometer is like a detective with a "fire eye", which can keenly capture even the smallest changes in the viscosity of lithium battery materials. In a material system such as lithium batteries, which are nearly demanding in terms of viscosity, the data it provides is extremely accurate. This advantage allows manufacturers to detect viscosity anomalies in the first place, so that targeted adjustment measures can be quickly taken to ensure the smooth progress of the production process.
Wide measurement range: It is like an "all-round player", whether it is a low-viscosity electrolyte, or a high-viscosity electrode slurry, or even other different types of lithium battery materials, are within its measurement range. This wide range of adaptations perfectly meets the complex requirements of viscosity measurement of multiple materials during the production of lithium batteries.
Temperature control function: Because the viscosity of lithium battery materials is extremely sensitive to temperature changes, just like delicate flowers are sensitive to environmental changes, SSR viscometers are specially equipped with precise temperature control systems. This system is like a intimate "temperature manager", which can be measured in a set temperature range, truly simulating the actual situation of lithium batteries in different working environments, so as to more accurately reflect the viscosity characteristics of the material.
3、the application of lithium battery SSR viscometer in the production process
(1) Raw material quality control
In the lithium battery raw material procurement this important link, especially for the electrode materials and electrolyte these key raw materials, SSR viscometer is like a "mass caliper". By using it to perform fast and precise quality tests on raw materials and carefully compare the test results with standard viscosity values, manufacturers can easily determine whether raw materials meet stringent production requirements. In this way, it can effectively avoid those non-conforming raw materials mixed into the production process, so as to build a solid defense line for the quality of lithium batteries from the source.
(2) Real-time monitoring during the preparation of electrode slurry
During the dynamic process of the preparation of the electrode paste, the SSR viscometer is cleverly connected to the mixing equipment, which is like installing a "real-time monitor" for the production process. It is able to continuously monitor the small changes in the viscosity of the slurry, like a keen eye constantly watching every move on the production line. The operator can adjust the mixing speed, time and additives in a timely and accurate manner according to the viscosity trend, ensuring that the viscosity of the slurry is always stable in the best range. In this way, the quality of the electrode coating can be fully guaranteed, and the performance and consistency of the battery can be significantly improved.
(3) electrolyte formulation optimization
In the field of electrolyte development and production, SSR viscometers play the role of "compass". It enables researchers to fully assess the viscosity properties of different formulations, as if to guide them through the vast "sea" of formulations. By accurately measuring the viscosity of the electrolyte at different composition ratios and different temperatures, researchers can more scientifically optimize the electrolyte formulation, so that it has the right viscosity while meeting the basic requirements of ion transport performance, thus laying a solid foundation for improving the safety and stability of the battery.
(4) Quality inspection in the battery assembly process
When the battery assembly is completed, the SSR viscometer acts like a "rigorous quality inspector" to spot check the overall viscosity of the electrolyte and electrode material inside the battery. In this way, potential problems such as uneven material distribution and electrolyte leakage caused by improper operation during assembly can be discovered in time. This is essential to ensure the quality and reliability of every factory battery.
4、Conclusion
The lithium battery SSR viscometer is like a bright "lighthouse" in the production process of lithium batteries, and its importance is self-evident. It can help manufacturers control the viscosity of lithium battery materials with high precision, thus optimizing various key production processes such as electrode preparation, electrolyte formulation and battery assembly. Through the accurate measurement and real-time monitoring of viscosity, it can not only improve the performance of lithium batteries, including capacity, charge and discharge efficiency and cycle life, but also enhance the safety of the battery like a solid "shield" and effectively reduce various quality problems caused by abnormal viscosity.
